Power Window Control Module

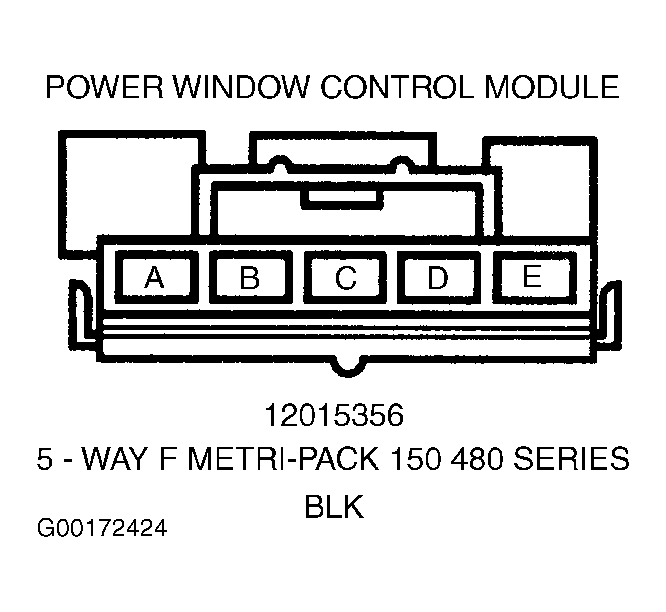

Fig 1: Power Window Control Module - 5-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
