Radio Connectors: Amplifier

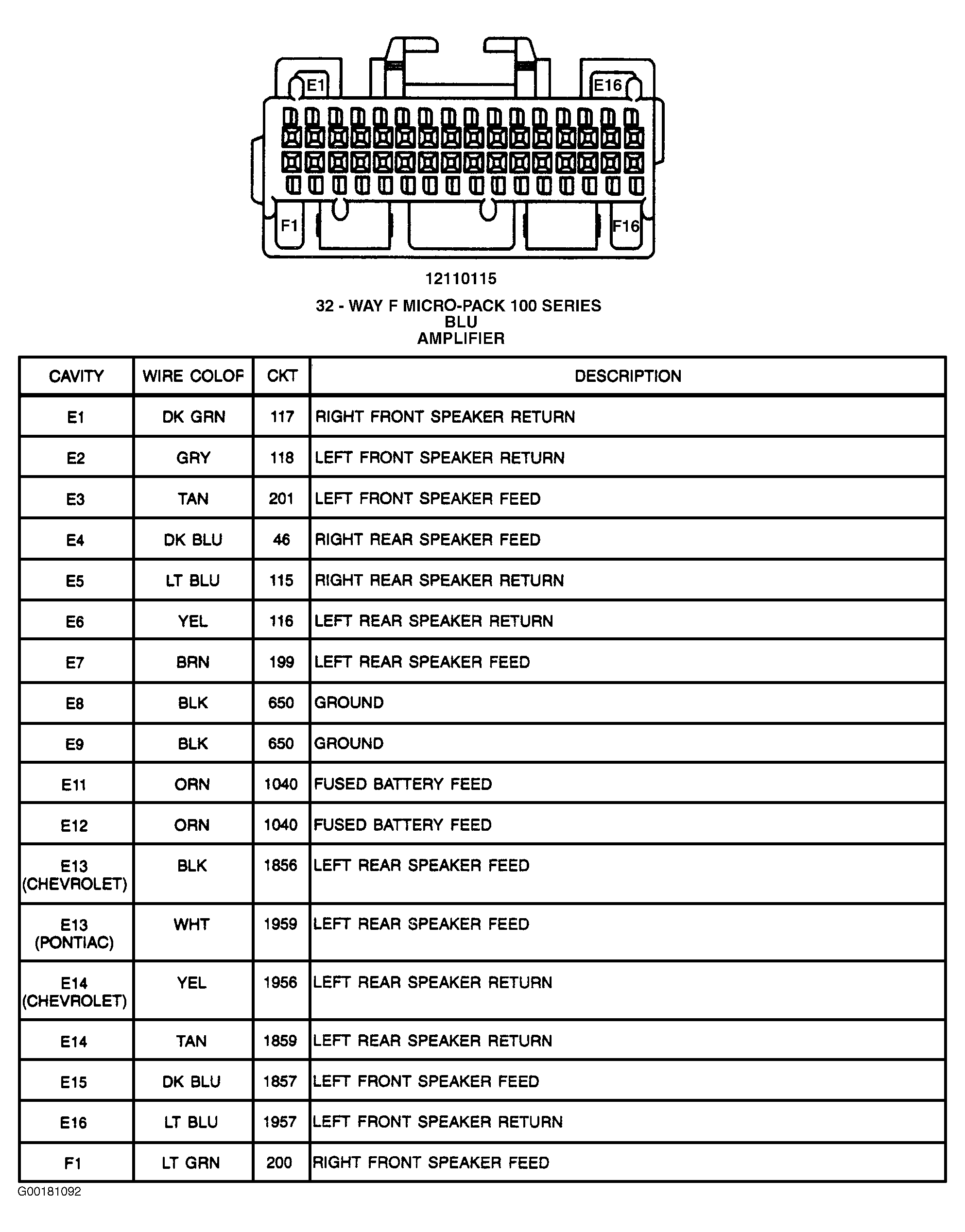

Fig 1: Amplifier - 32-Pin Connector (Blue) - (1 Of 2)
G00181092Courtesy of GENERAL MOTORS CORP.

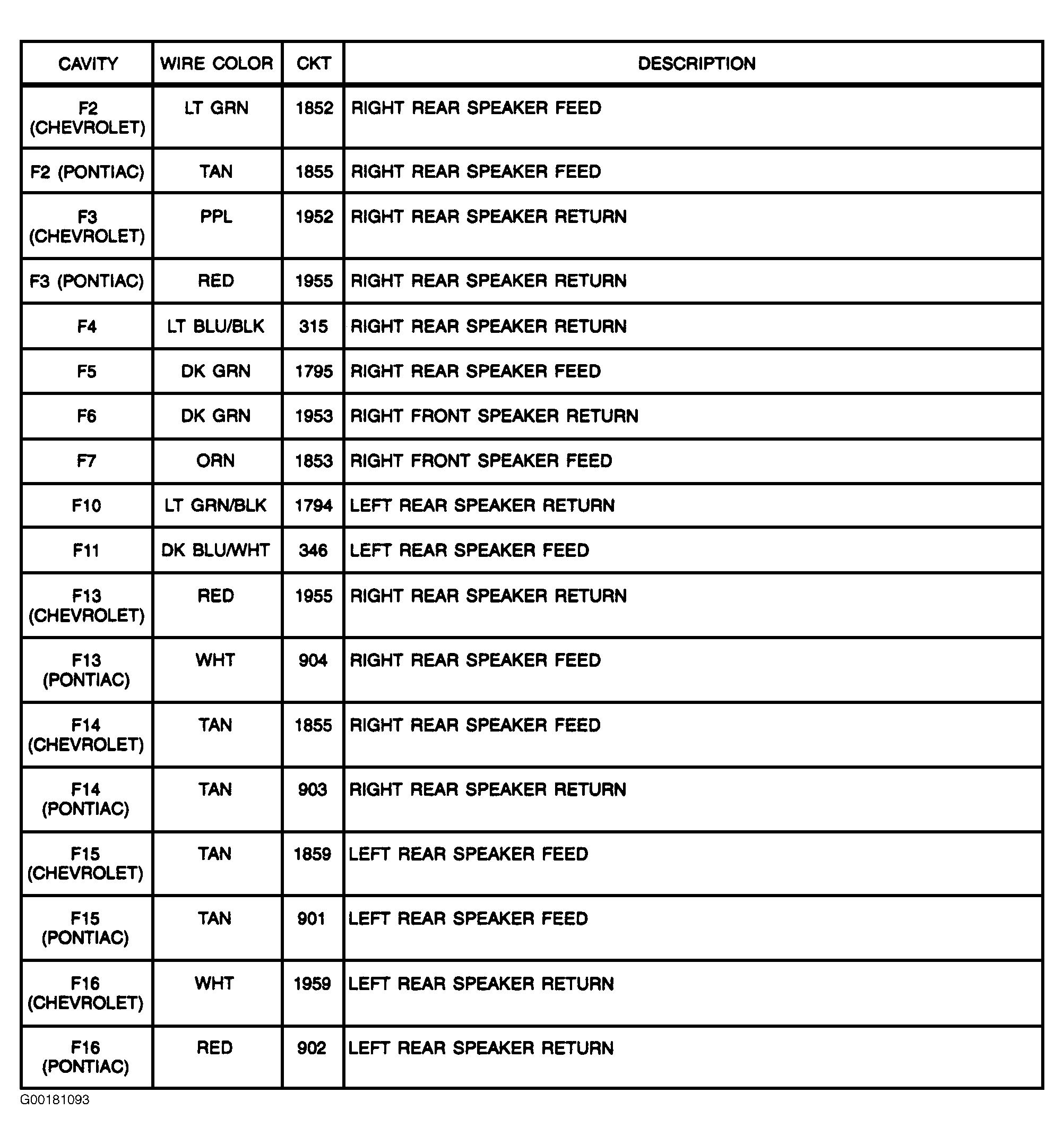

Fig 2: Amplifier - 32-Pin Connector (Blue) - (2 Of 2)
G00181093Courtesy of GENERAL MOTORS CORP.
