Electronic Brake Control Module (EBCM) C1

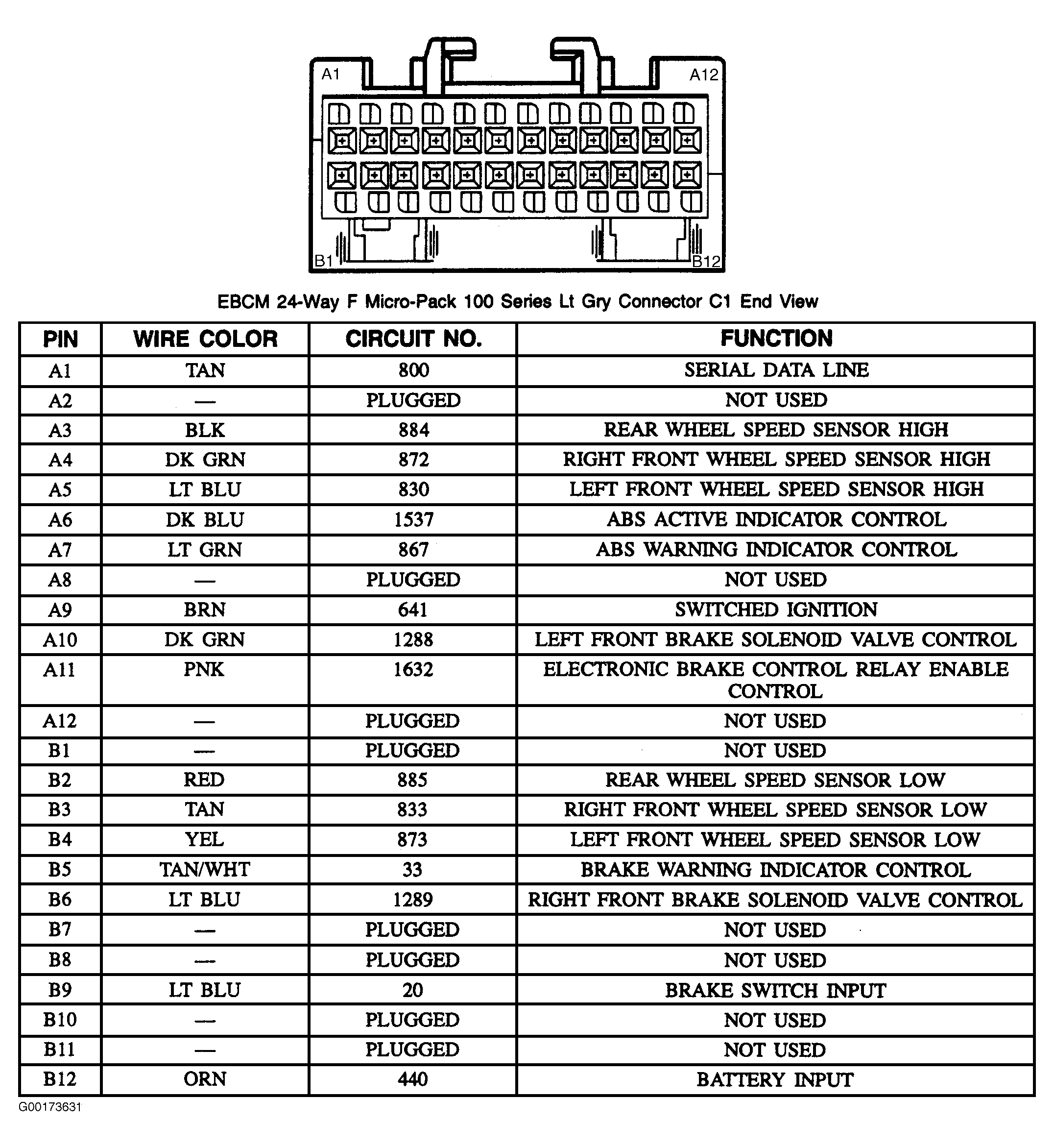

Fig 1: Electronic Brake Control Module C1 - 24-Pin Connector (Light Gray)
G00173631Courtesy of GENERAL MOTORS CORP.
