Power Window Switch (RH)

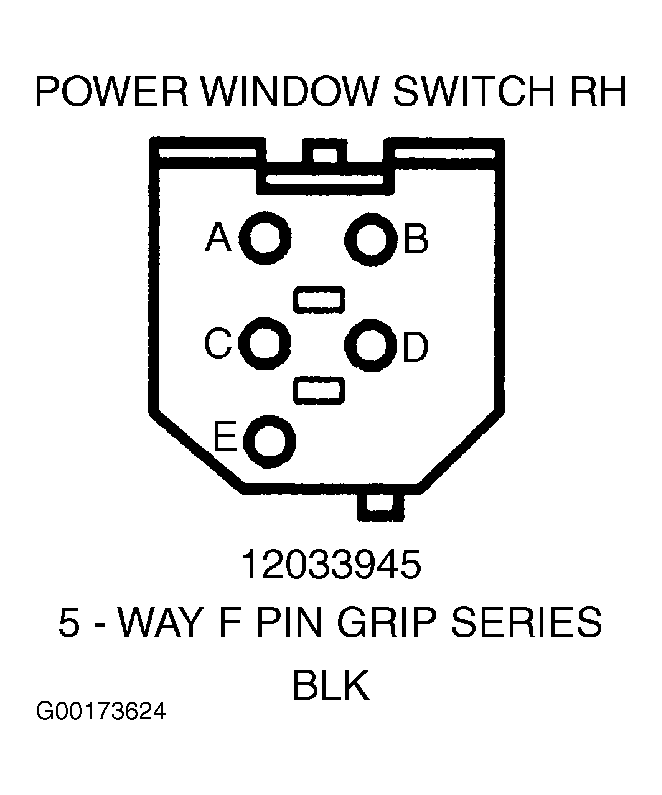

Fig 1: Power Window Switch (RH) - 5-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
