Electronic Brake Control Module C1 & C2

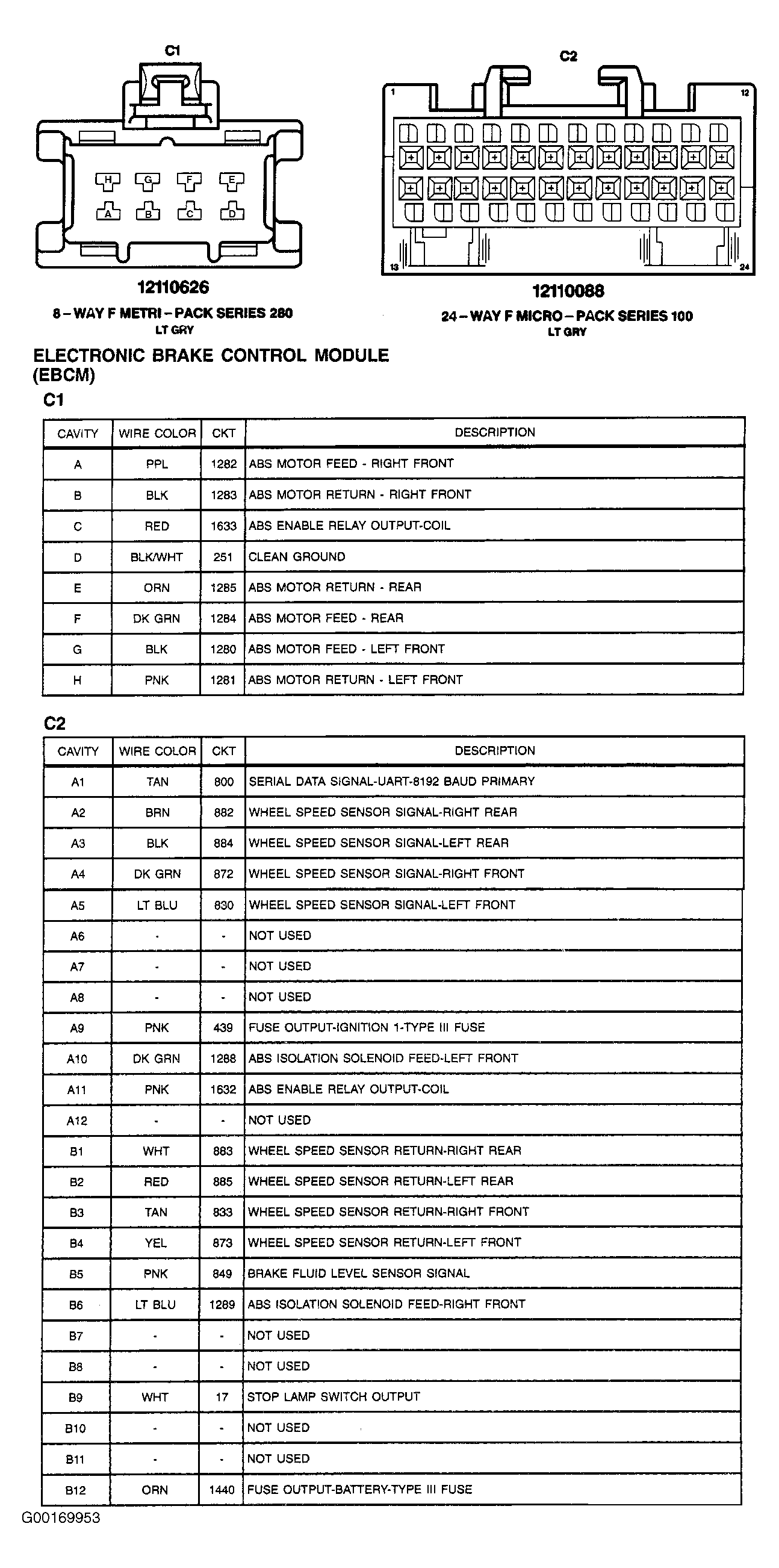

Fig 1: Electronic Brake Control Module (EBCM) C1 & C2 - 8-Pin Connector (Light Gray) & 24-Pin Connector (Light Gray)
G00169953Courtesy of GENERAL MOTORS CORP.
