Radio C1 & C2

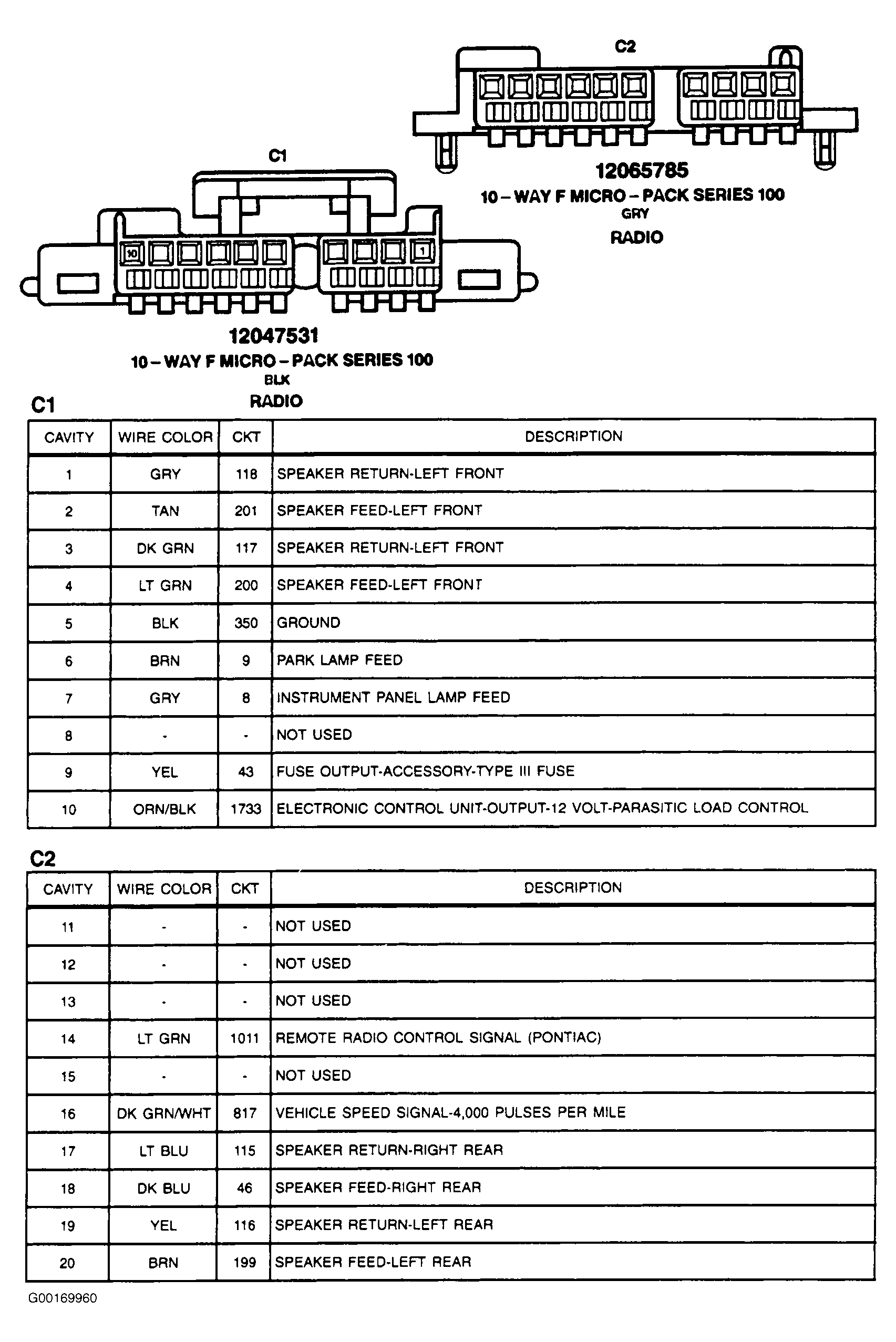

Fig 1: Radio C1 & C2 - 10-Pin Connector (Black) & 10-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
