Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

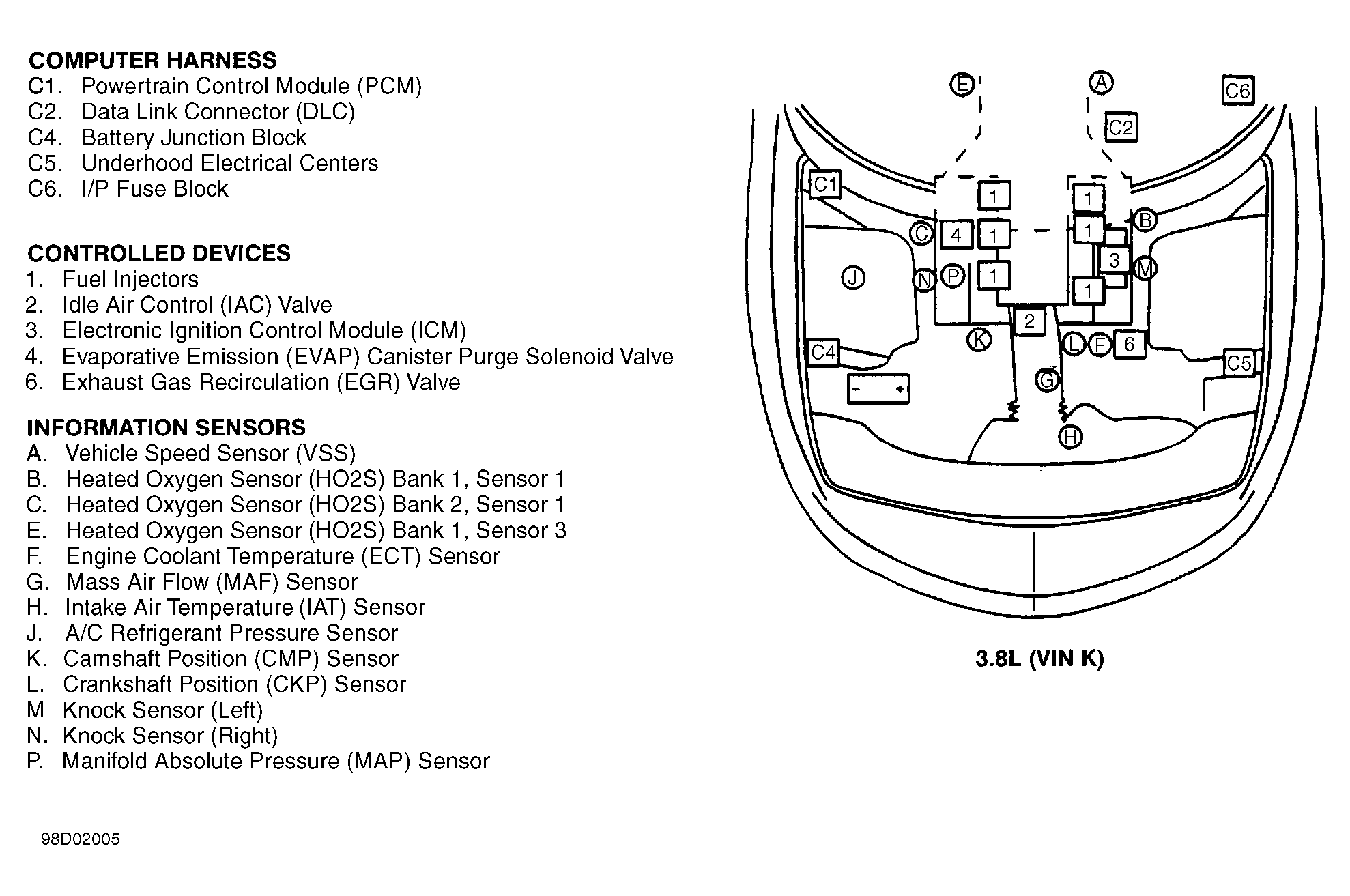

Fig 1: Engine Compartment (3.8L VIN K)
G98D02005

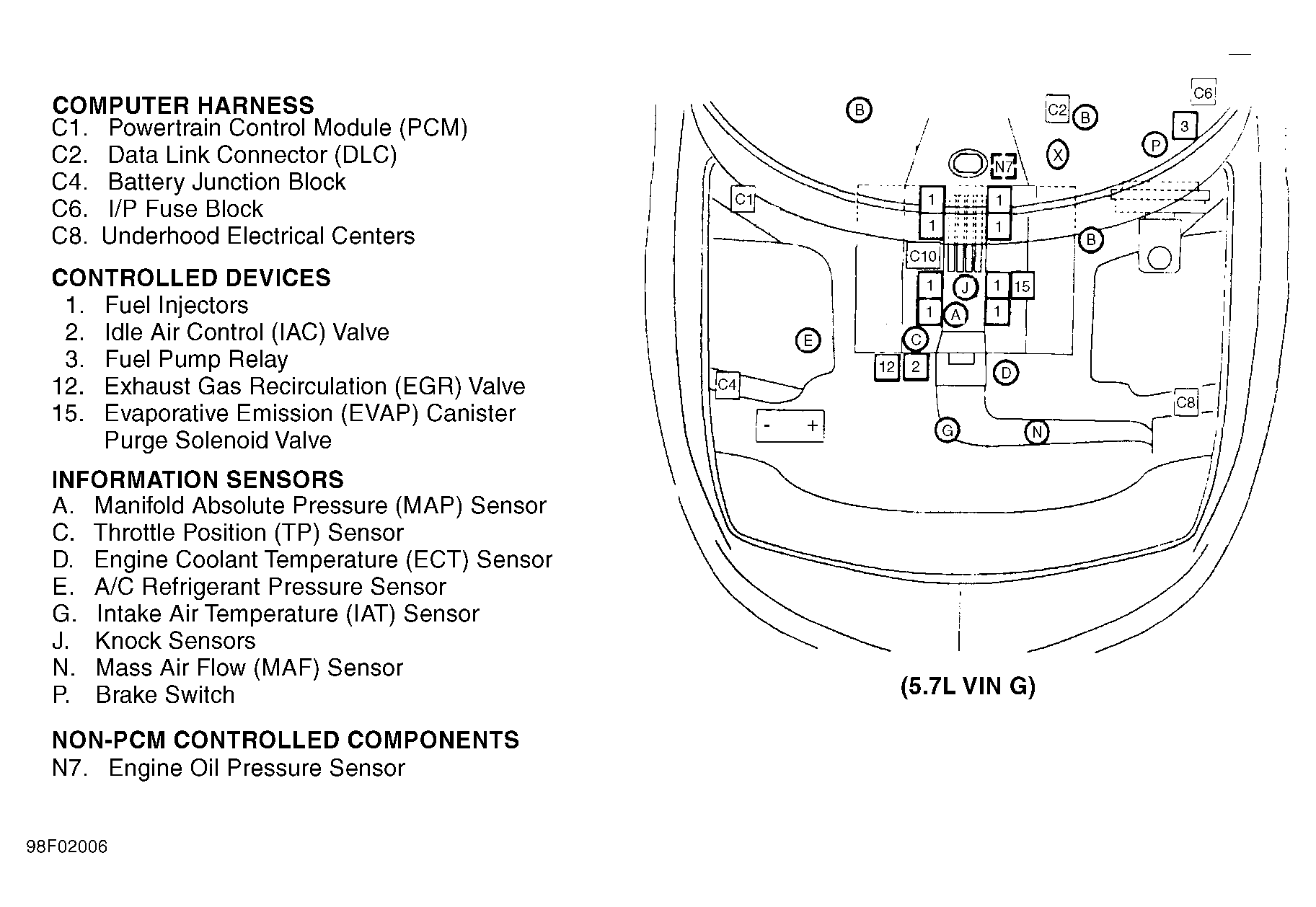

Fig 2: Engine Compartment (5.7L VIN G)
G98F02006
