Service Point Locations

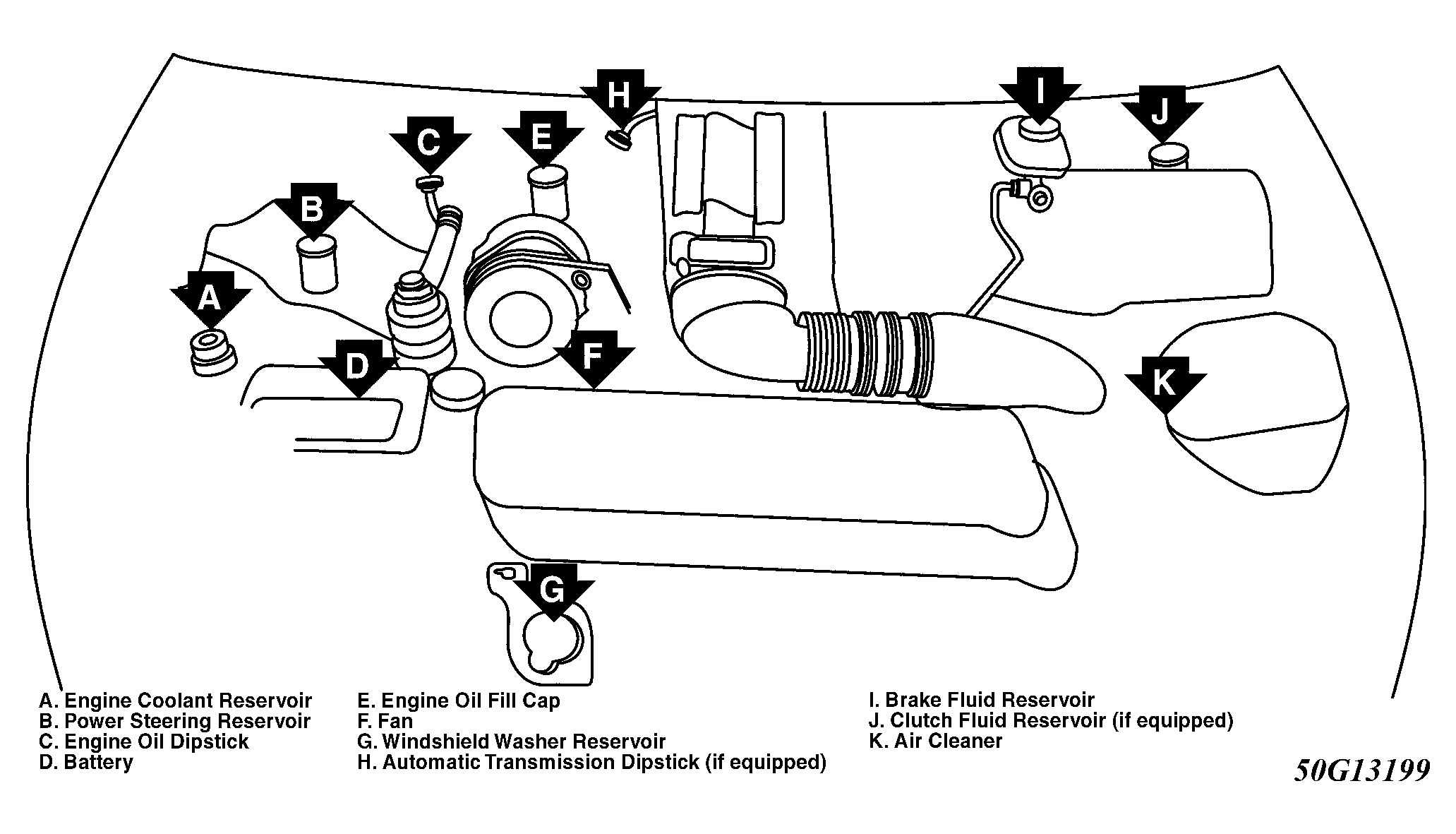

Fig 1: Service Point Locations - 3800 V6 (1997)
Courtesy of GENERAL MOTORS CORP.

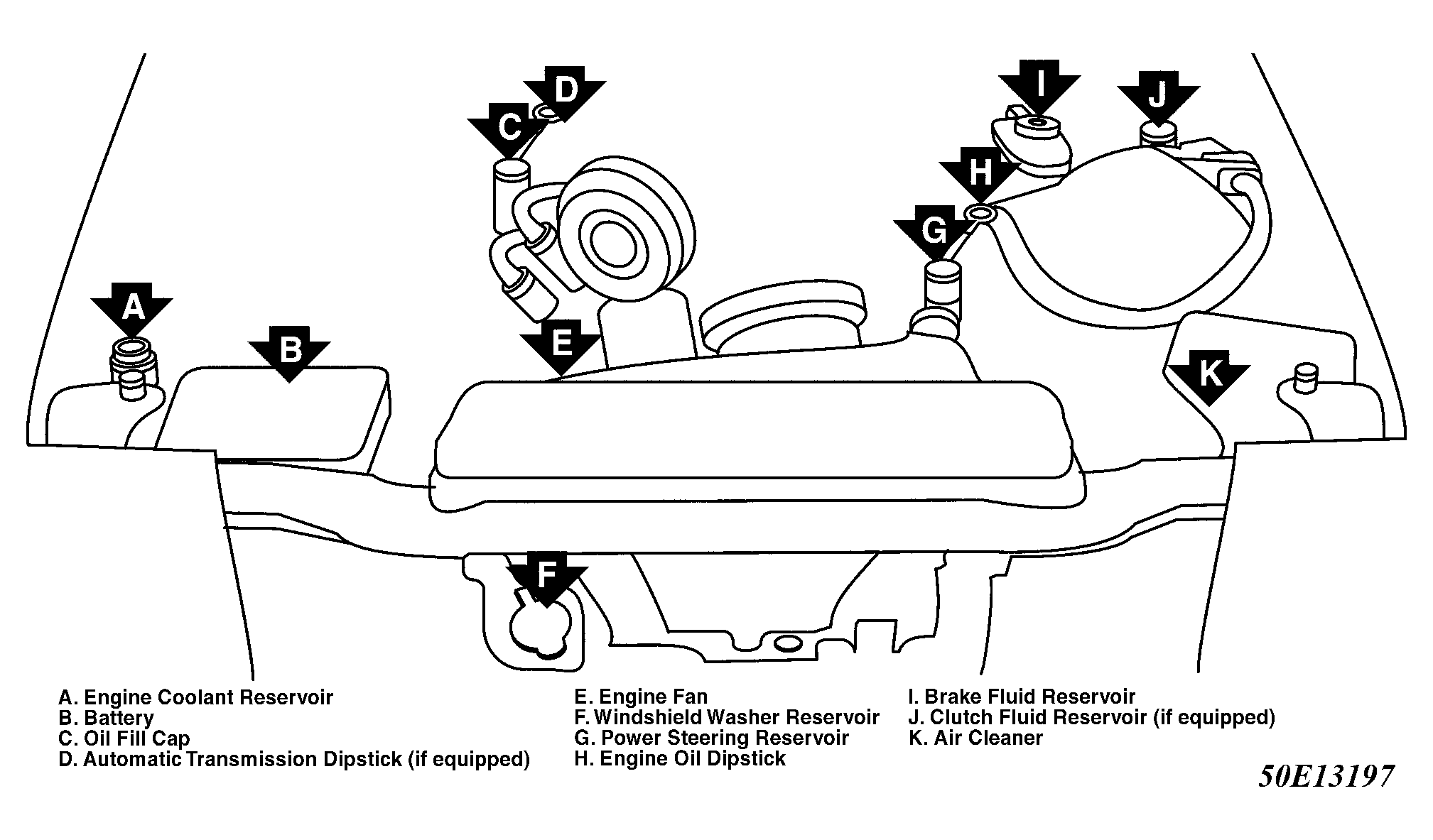

Fig 2: Service Point Locations - 3800 V6 (1998)
Courtesy of GENERAL MOTORS CORP.

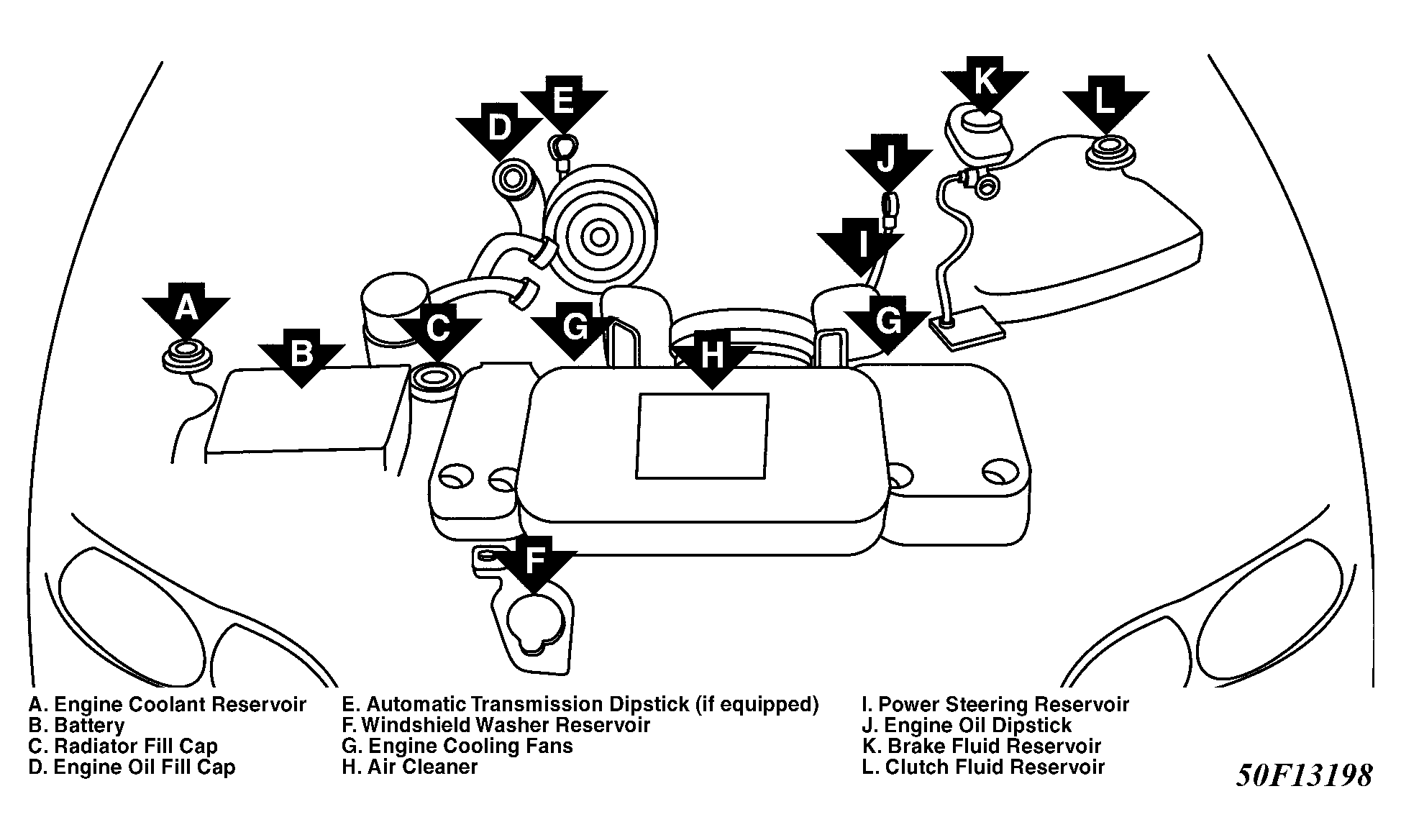

Fig 3: Service Point Locations - 5.7L V8 (1997)
Courtesy of GENERAL MOTORS CORP.

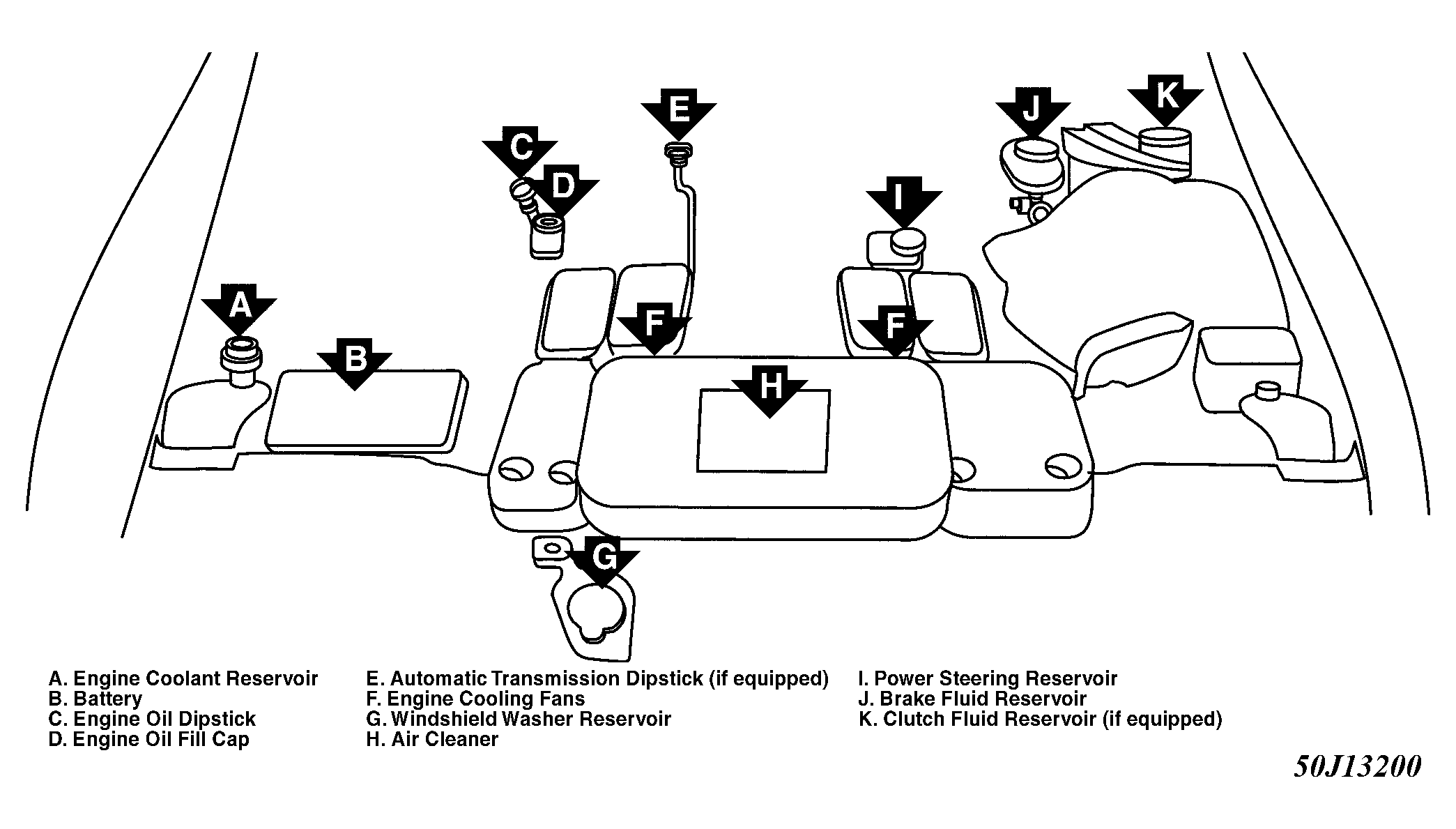

Fig 4: Service Point Locations - 5.7L V8 (1998)
Courtesy of GENERAL MOTORS CORP.

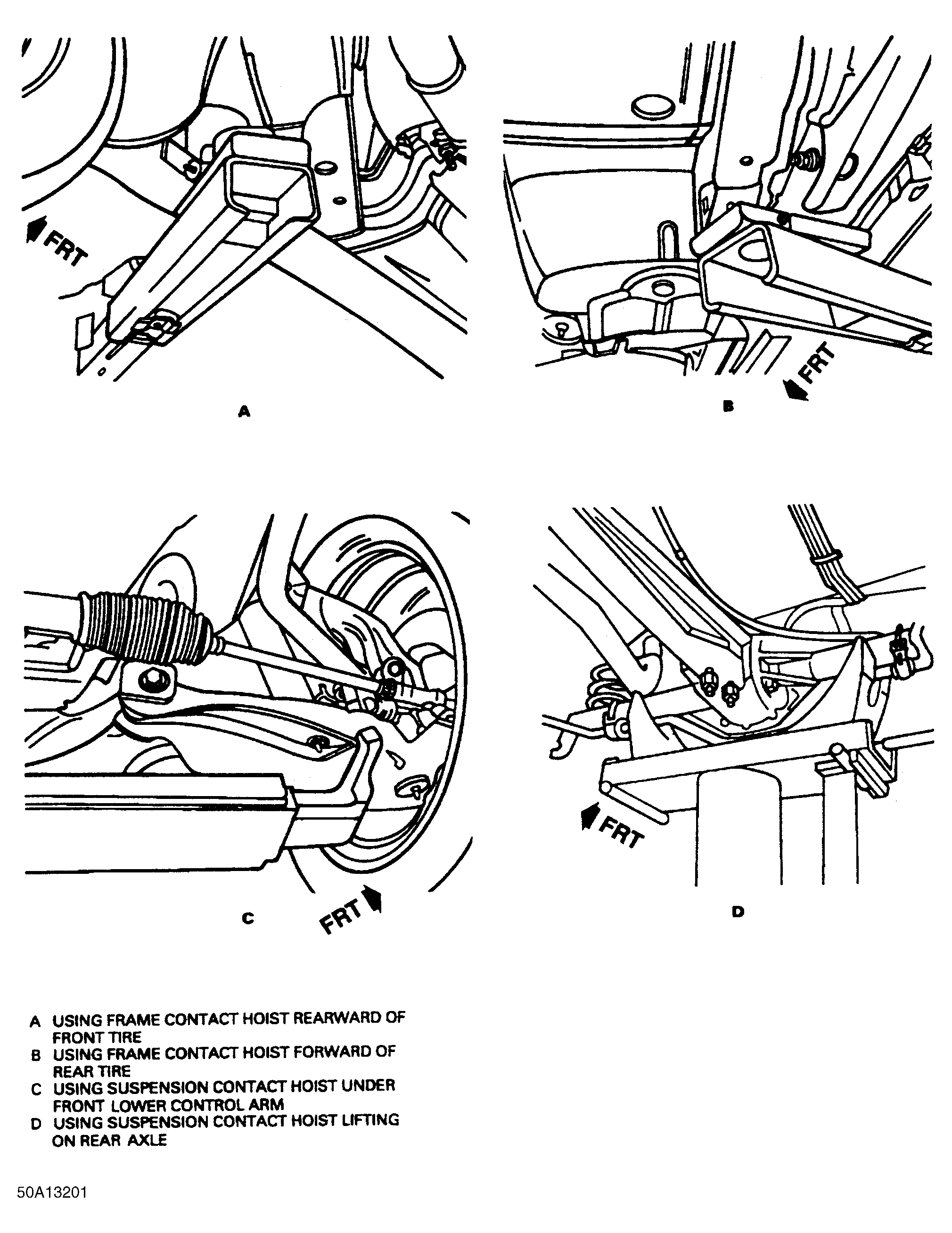

Fig 5: Lift Point Locations
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
