Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Accelerator & Servo Control Module | Under left side of dash, near kick panel. |
| Amplifier (Radio) | Behind right rear quarter inner trim panel. |

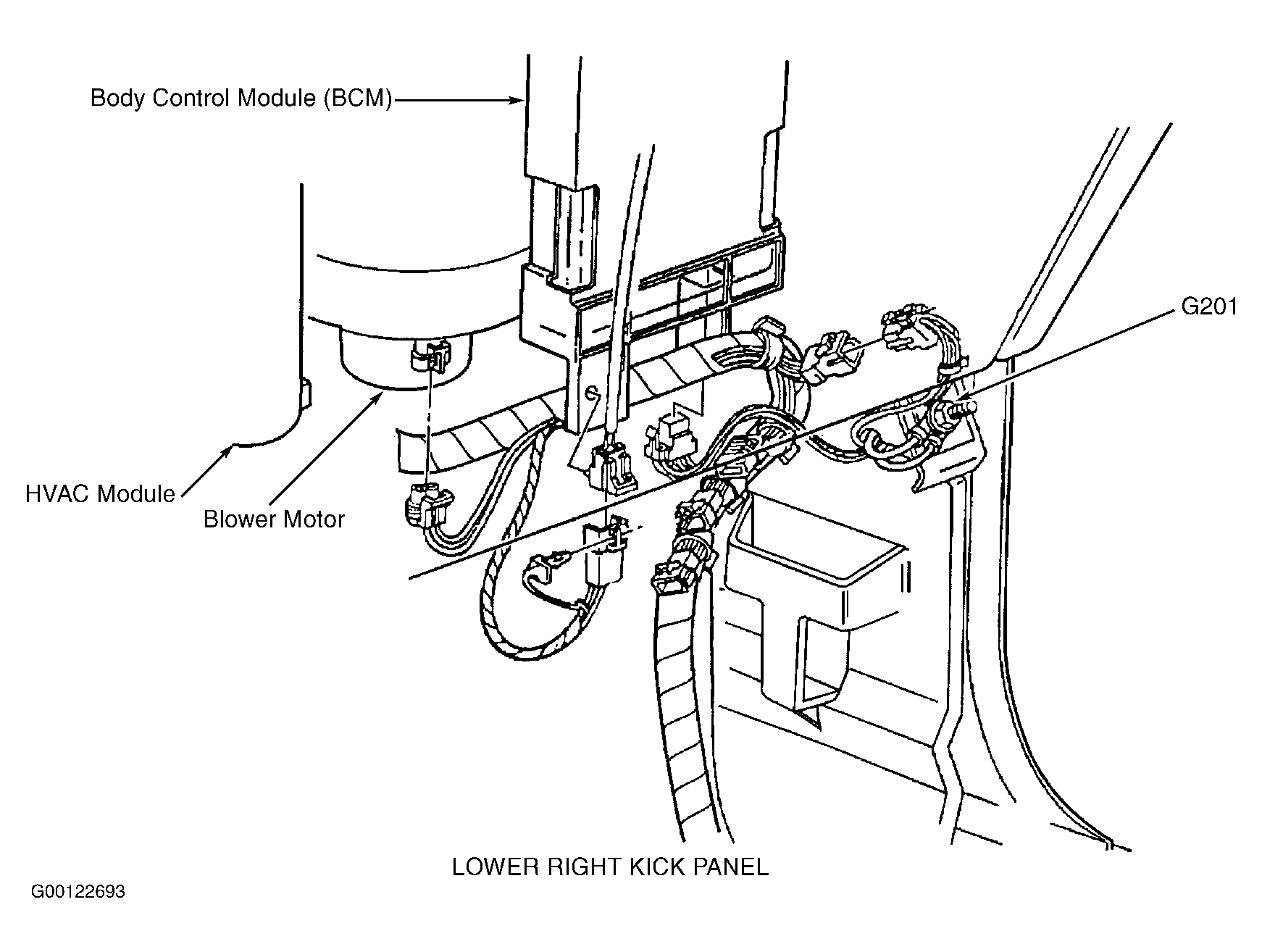

| Body Control Module (BCM) | Under right side of dash, near blower motor. See Figure . |
| Cruise Control Module | In engine compartment, on left frame rail, forward of wheelwell. |

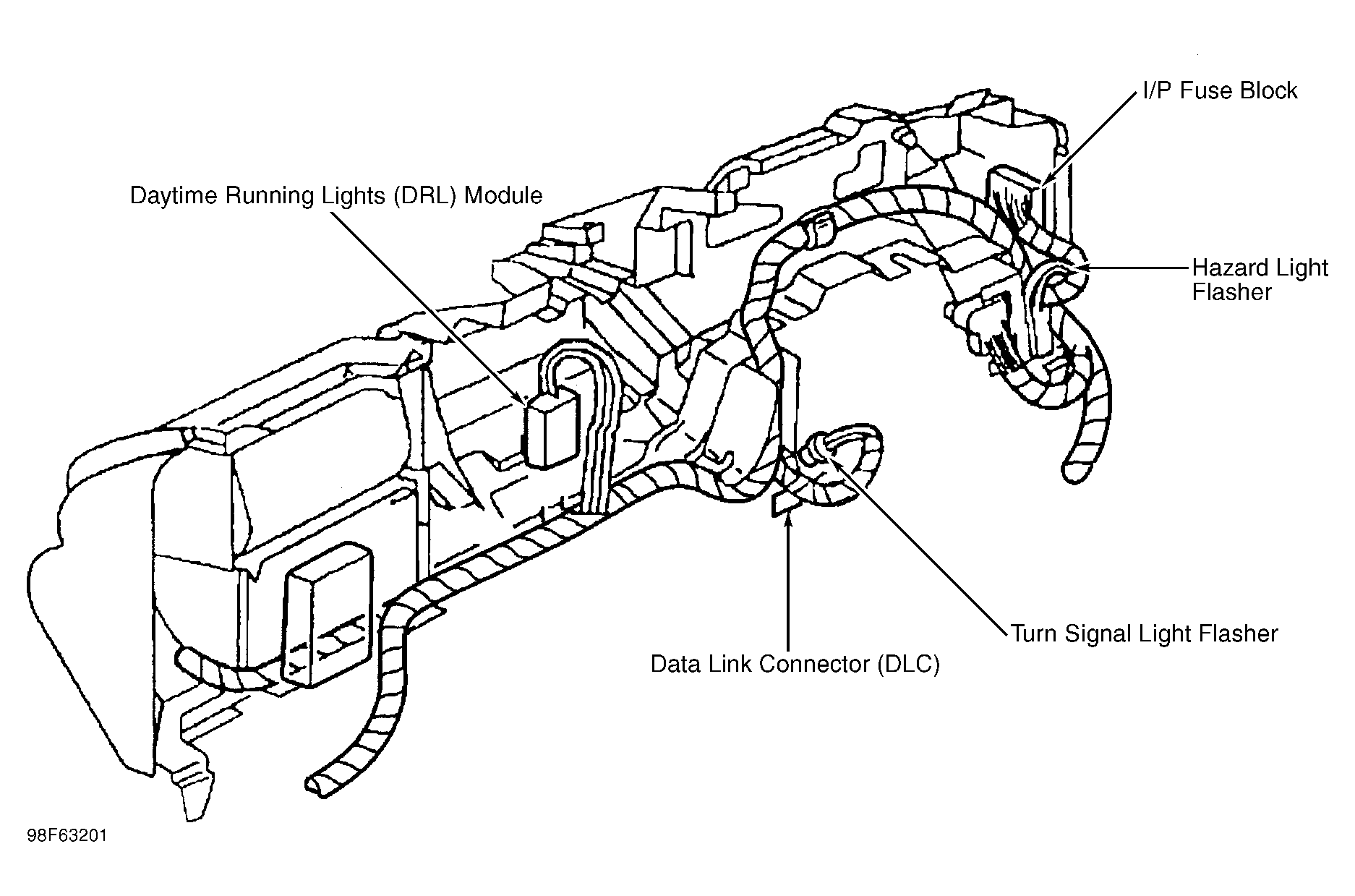

| Daytime Running Lamps (DRL) Module | Mounted behind radio & HVAC controls, left of glove box. See Figure . |
| Electronic Brake Control Module (EBCM) | On top of left front frame rail. |

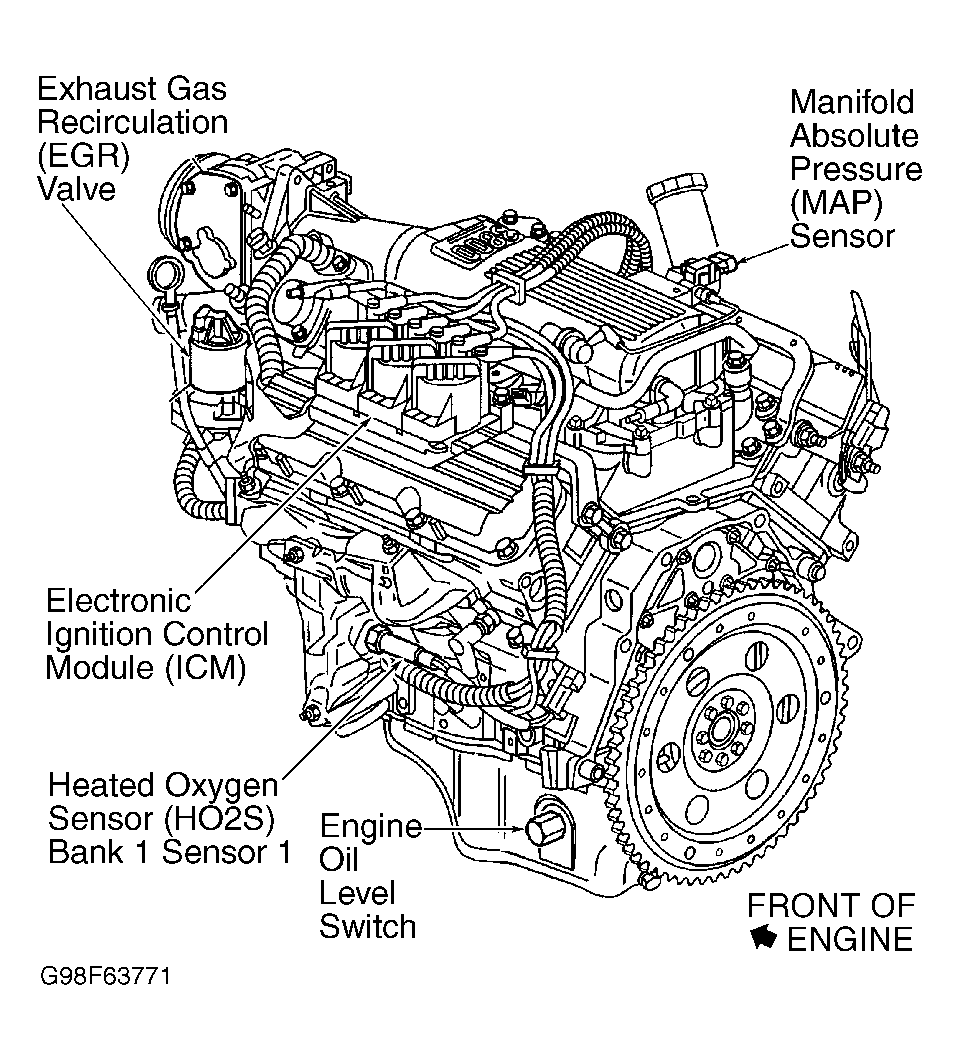

| Electronic Ignition Control Module (ICM) (3.8L VIN K) | At front end of left cylinder head. See Figure . |
| Electronic Ignition Control Module (ICM) (5.7L VIN G) | At each ignition coil. |
| Headlamp Opening Door Actuator Control Module (Firebird) | In engine compartment, forward of left wheelwell. |
| HVAC Module | Behind right side of dash, left of blower motor. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below rear of console. |
| Power Seat Cushion Air Control Module | Under passenger's seat. |
| Power Window Control Module | On center of dash mat, above floor tunnel. |
| Powertrain Control Module (PCM) (3.8L VIN K) | In engine compartment, behind right strut tower. |
| Powertrain Control Module (PCM) (5.7L VIN G) | In engine compartment, behind right strut tower. |
| Throttle Actuator Control (TAC) Module (3.8L VIN K) | On accelerator pedal bracket. |
