Center Console Fuse Block

NOTE: Center console fuse block is on the right side of the center console. See Fig 1 .

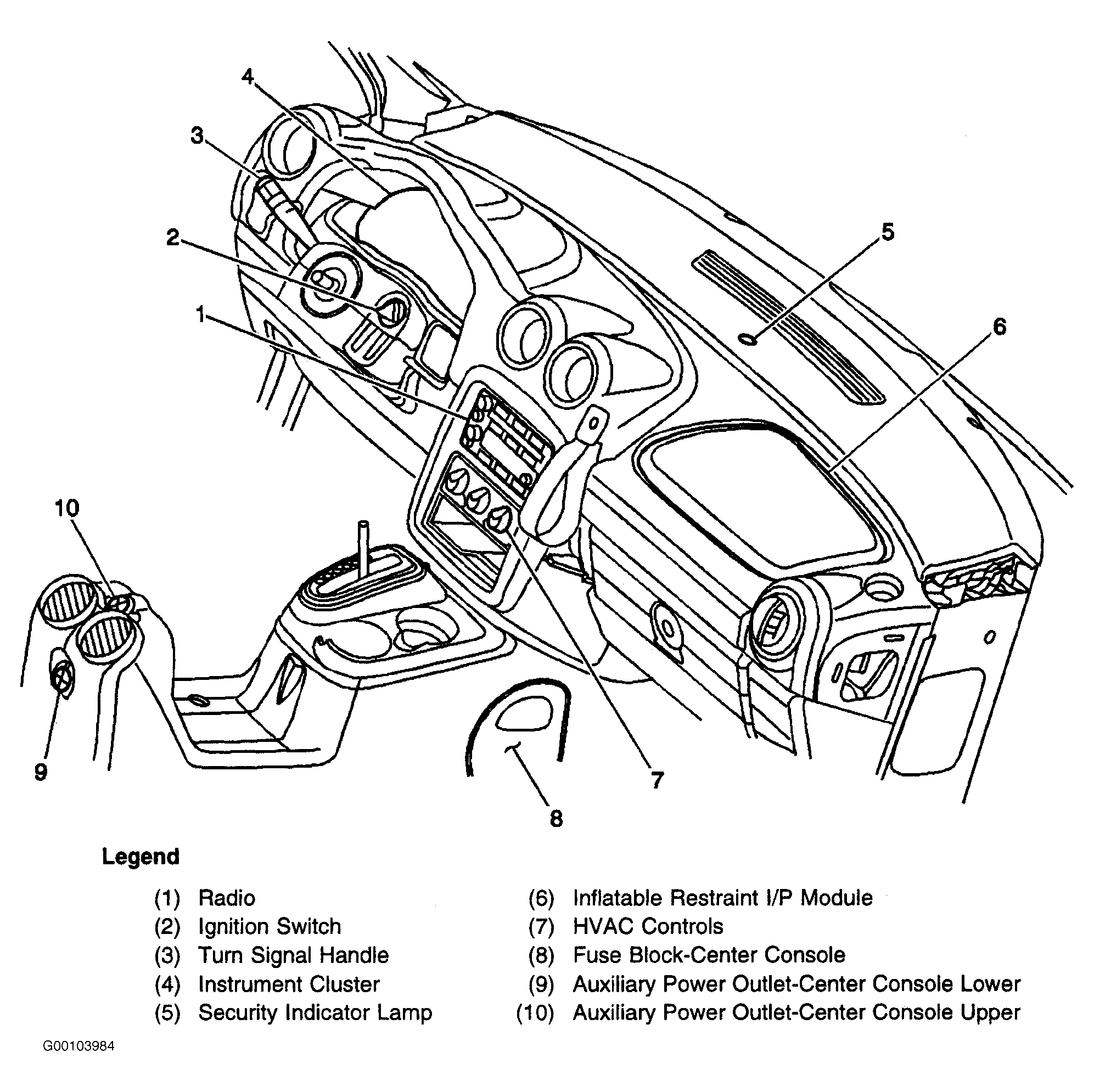

Fig 1: Locating Center Console Fuse Block
G00103984Courtesy of GENERAL MOTORS CORP.

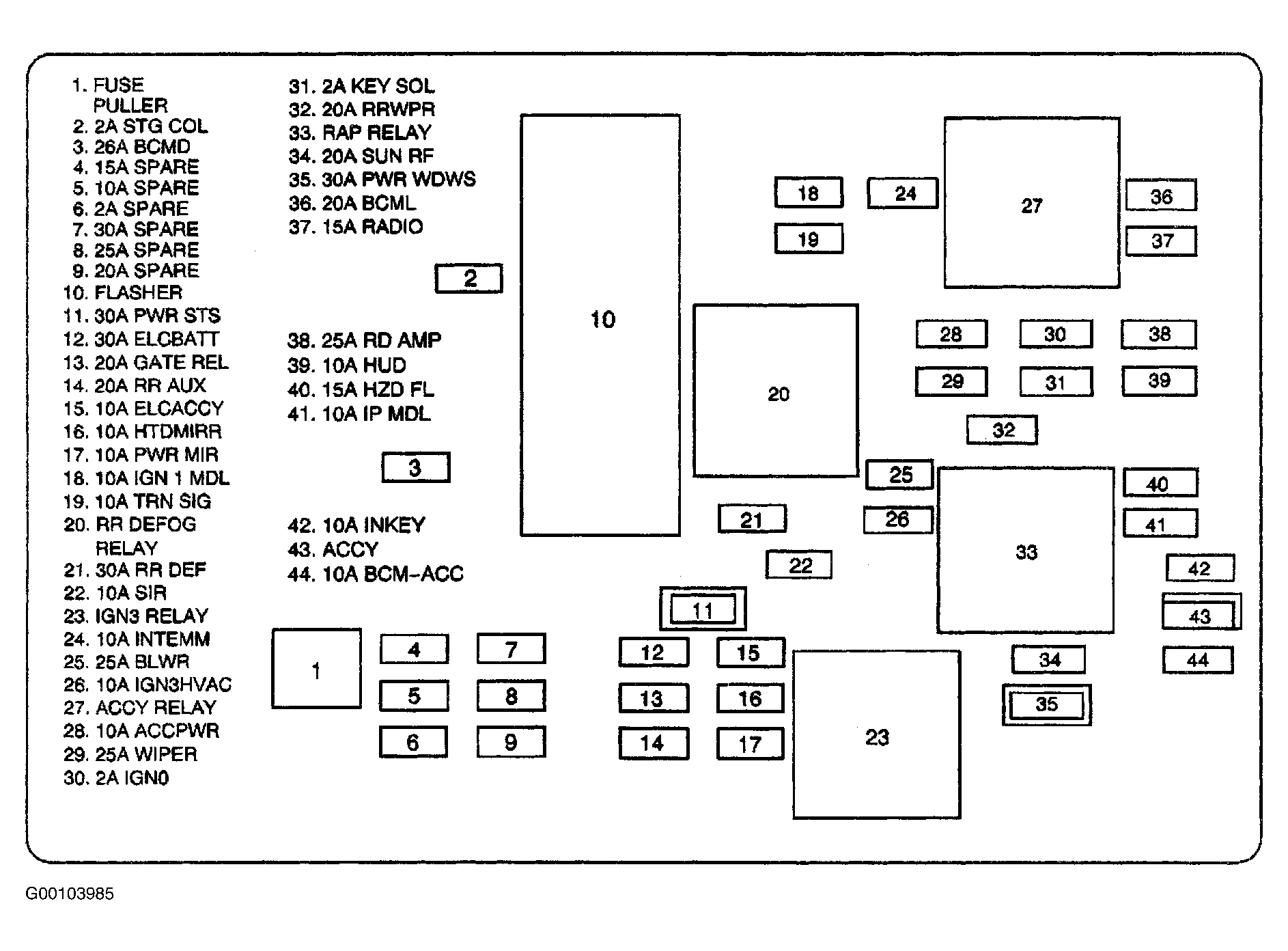

Fig 2: Identifying Center Console Fuse Block Components
G00103985Courtesy of GENERAL MOTORS CORP.

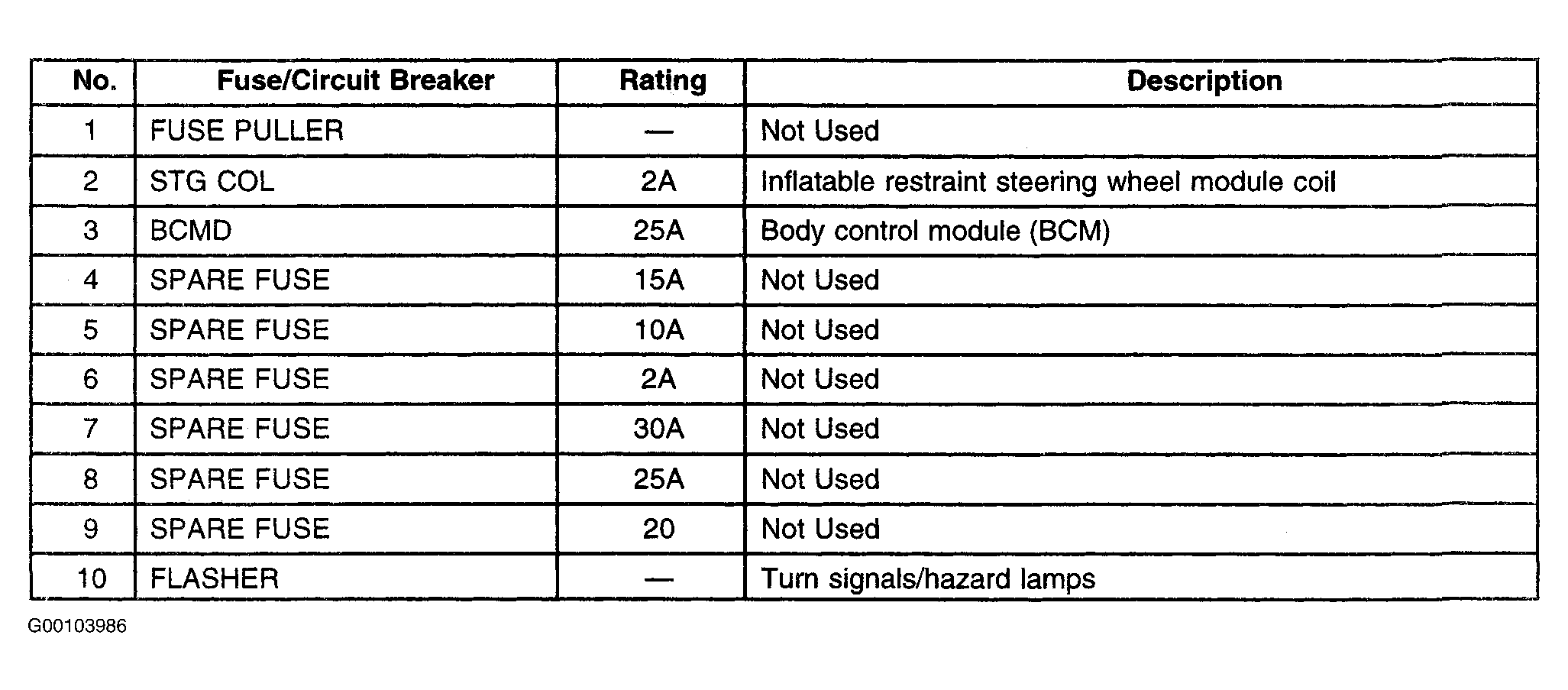

Fig 3: Center Console Fuse Block Legend (1 of 3)
G00103986Courtesy of GENERAL MOTORS CORP.

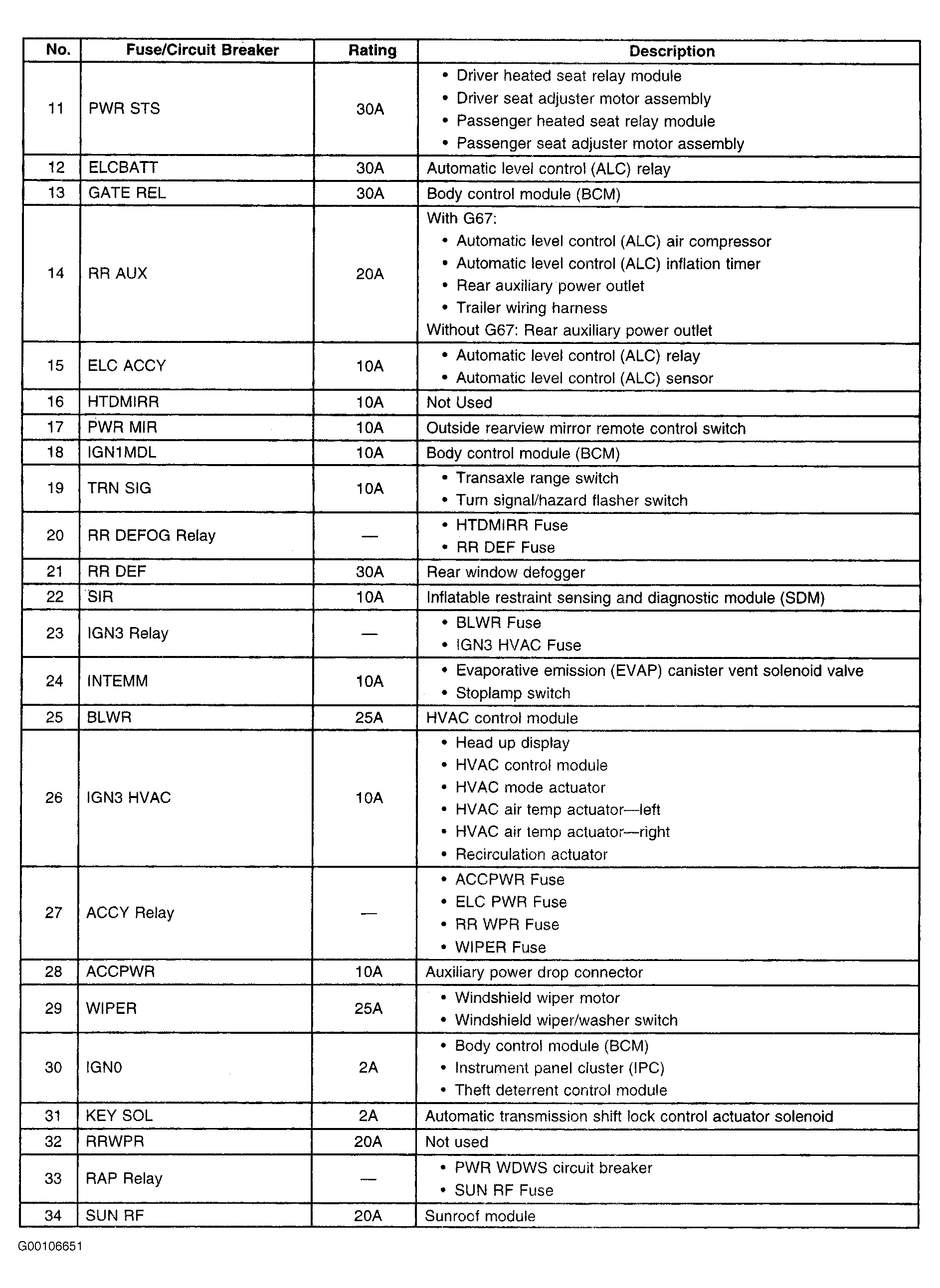

Fig 4: Center Console Fuse Block Legend (2 of 3)
G00106651Courtesy of GENERAL MOTORS CORP.

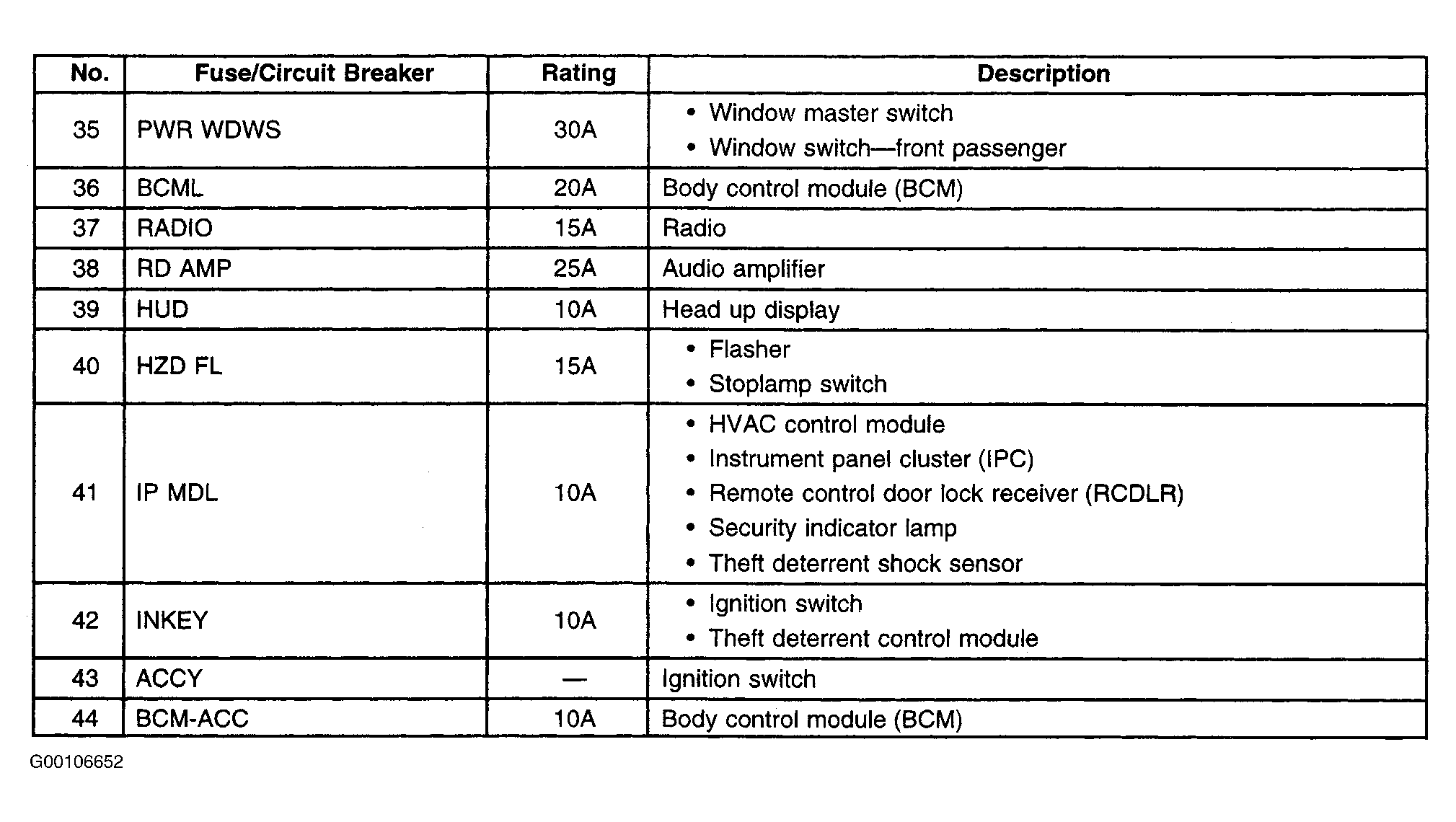

Fig 5: Center Console Fuse Block Legend (3 of 3)
G00106652Courtesy of GENERAL MOTORS CORP.
