Front Floor Center Console Replacement: Installation

1. Align front floor console to floor. See Fig 4.
2. Connect required harness connectors.
3. Install nuts to front of front floor console. Tighten nuts to 53 INCH lbs. (6 N.m). See Fig 2.
4. Install nuts to rear of front floor console. Tighten nuts to 53 INCH lbs. (6 N.m). See Fig 3.
5. Install front floor console trim plate.

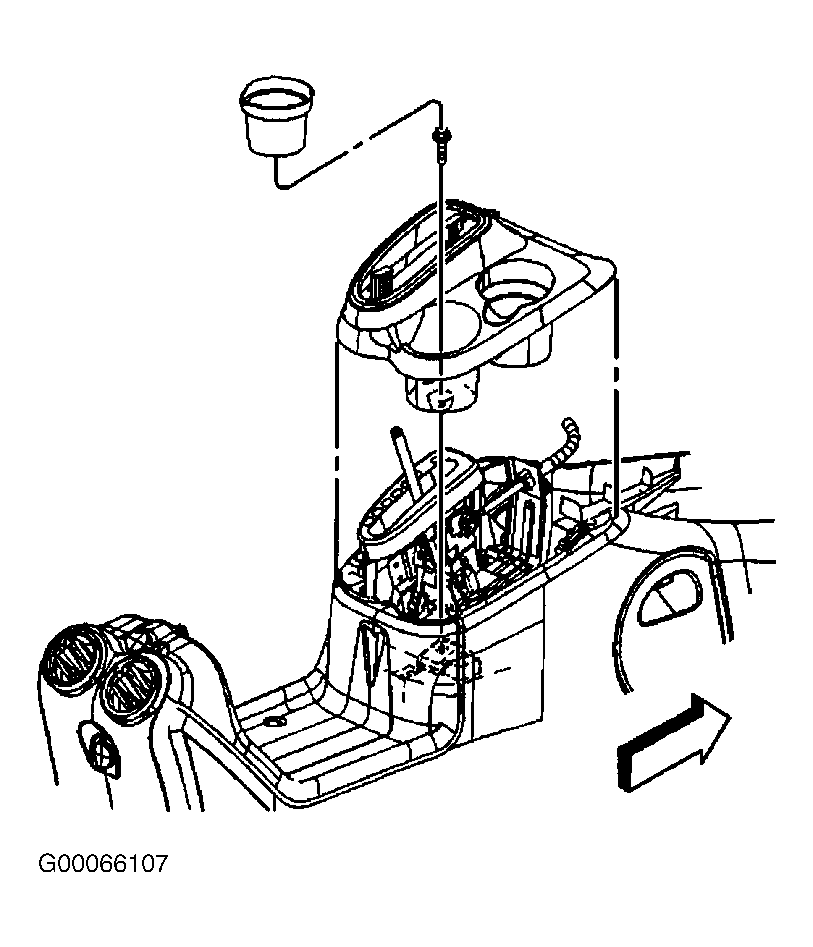

Fig 1: Removing & Installing Front Floor Center Console Trim Plate

Courtesy of GENERAL MOTORS CORP.

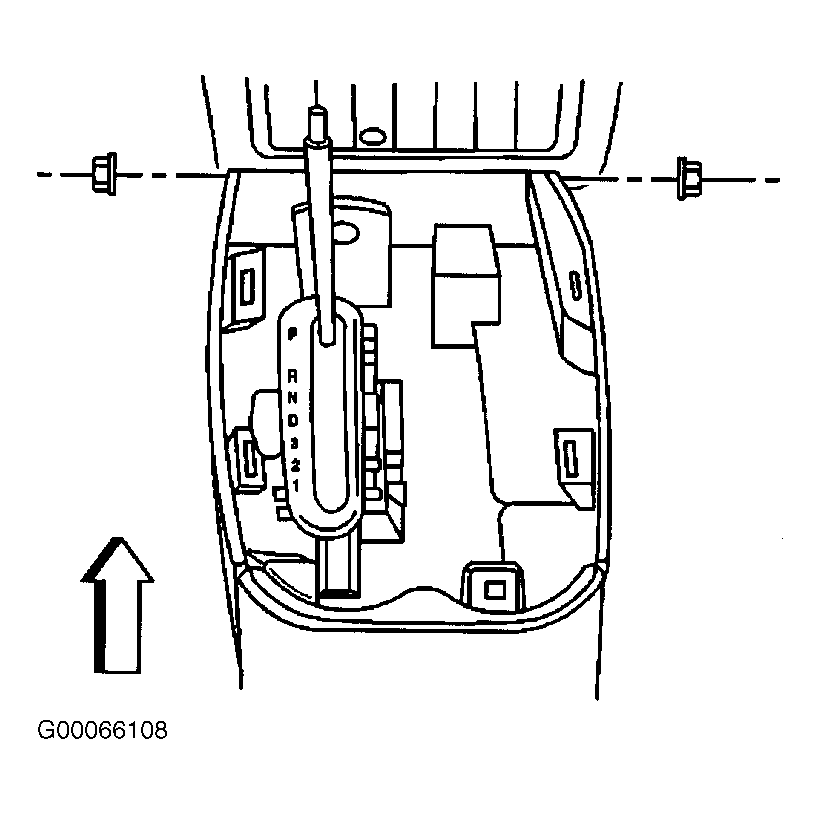

Fig 2: Locating Front Floor Center Console Nuts

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing & Installing Rear Floor Center Console Nuts

Courtesy of GENERAL MOTORS CORP.

Fig 4: Removing & Installing Front Floor Center Console

Courtesy of GENERAL MOTORS CORP.
