Remote Control Door Lock Receiver: Installation

1. Install RCDLR (2) to defroster air duct. See Fig 3.
2. Engage RCDLR retainers.
3. Connect RCDLR harness connector (1).
4. Install instrument panel upper trim pad, by reversing removal procedure steps  1 -  5 .
5. If a new RCDLR is being installed, program transmitter(s). See TRANSMITTER PROGRAMMING  under PROGRAMMING.

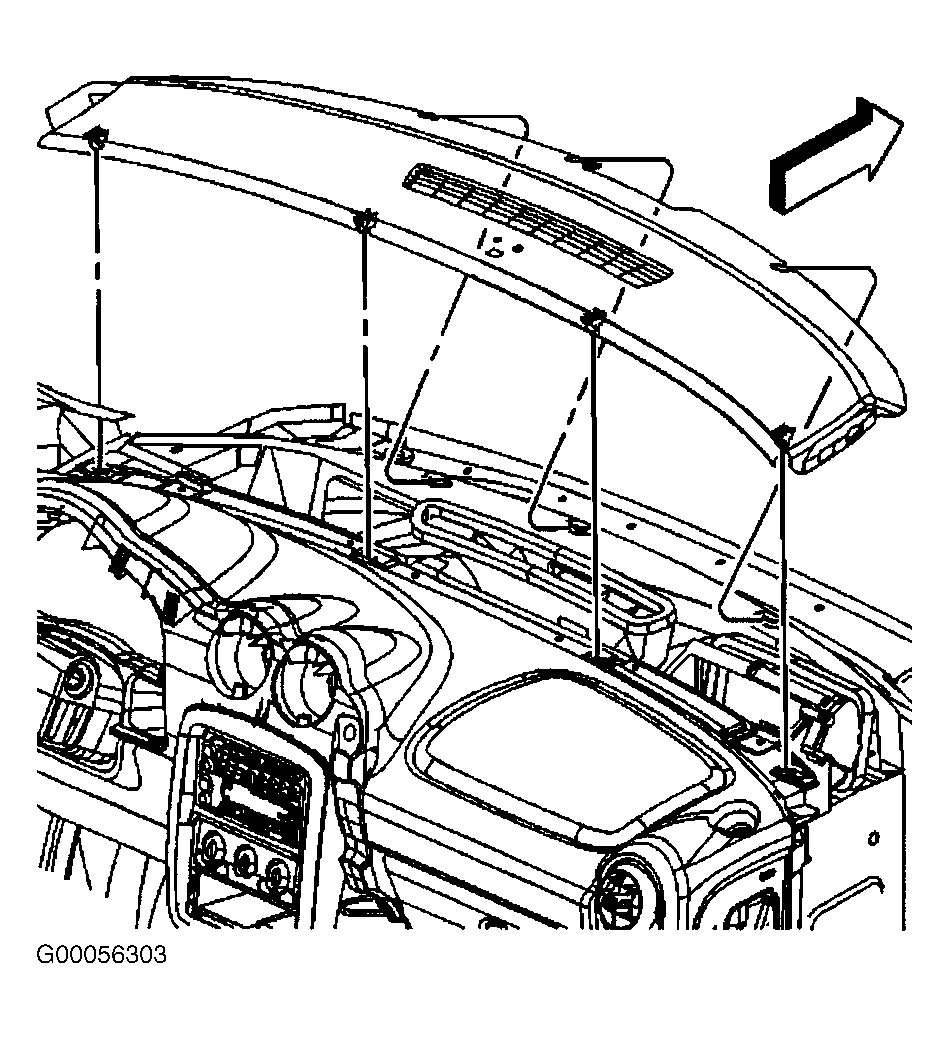

Fig 1: Removing & Installing Instrument Cluster Trim Panel

Courtesy of GENERAL MOTORS CORP.

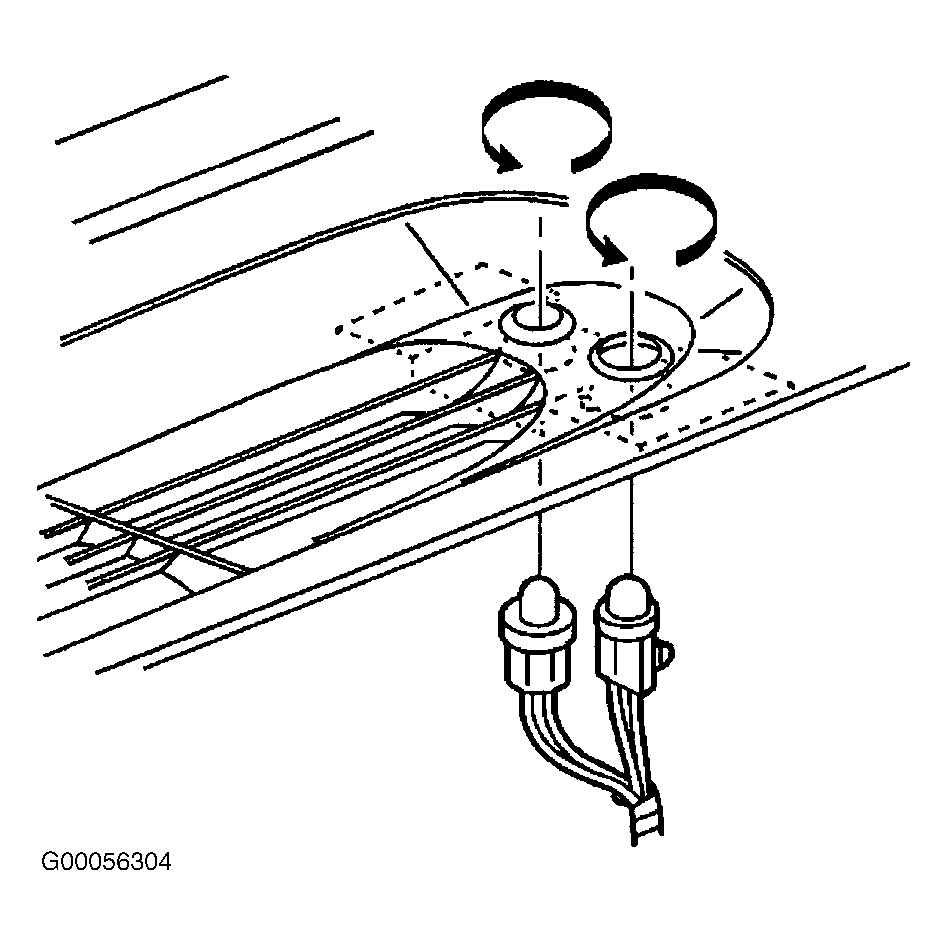

Fig 2: Removing & Installing Daytime Running Light Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

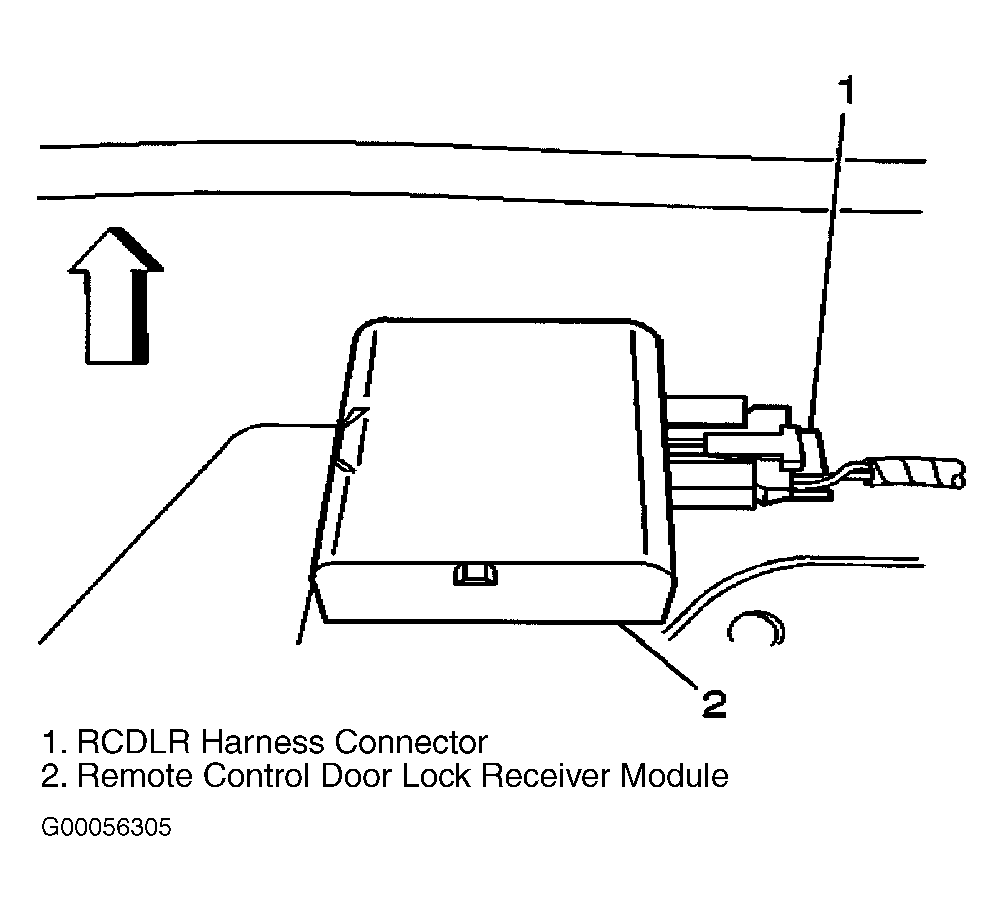

Fig 3: Locating Remote Control Door Lock Receiver Module

Courtesy of GENERAL MOTORS CORP.
