Window Motor (Front): Installation

  1. Install front window regulator bolts half way into window regulator motor and rail.
  2. Position front window regulator rail through rear access hole first.
  3. Position front window regulator motor through rear access hole.
  4. Install front window regulator into key slots. Attach regulator to motor and rail. Secure regulator with bolts. Tighten bolts to 97 INCH lbs. (11 N.m).
  5. Remove tape and position front window to regulator carrier plate.
  6. Connect window to regulator carrier plate.
  7. Connect harness connector to front window regulator motor.
  8. Install water deflector.
  9. Install door trim panel.

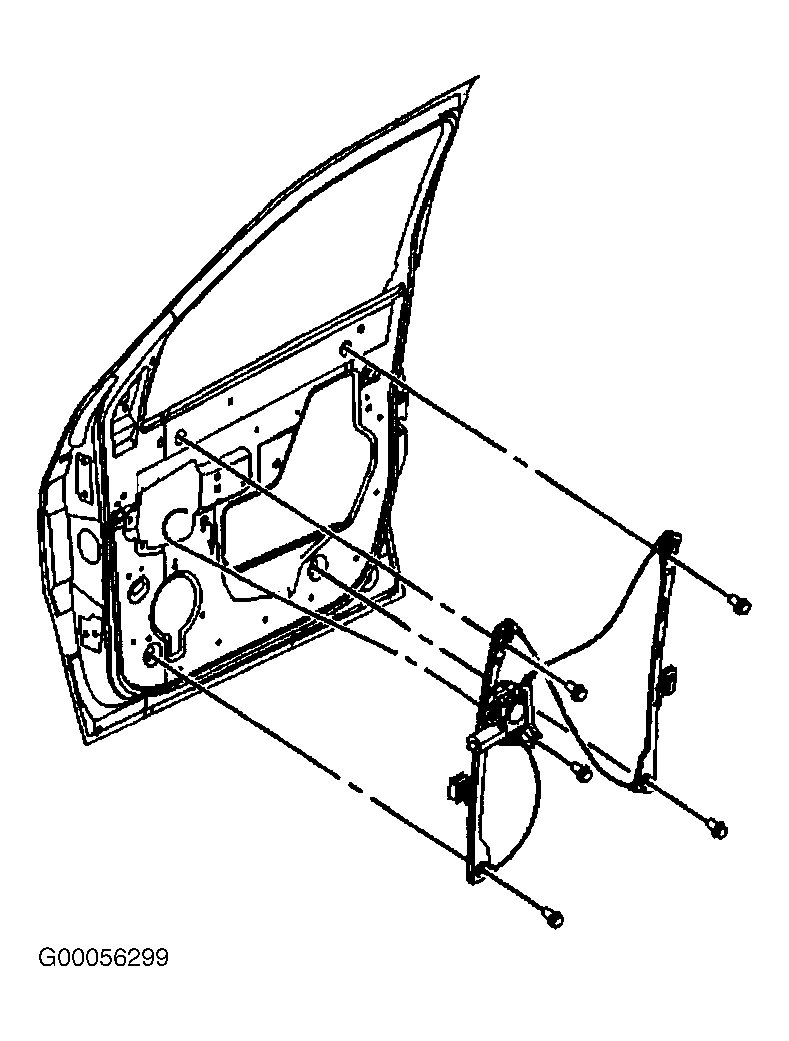

Fig 1: Removing & Installing Window Regulator & Power Window Motor
G00056299Courtesy of GENERAL MOTORS CORP.
