Body Control System Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

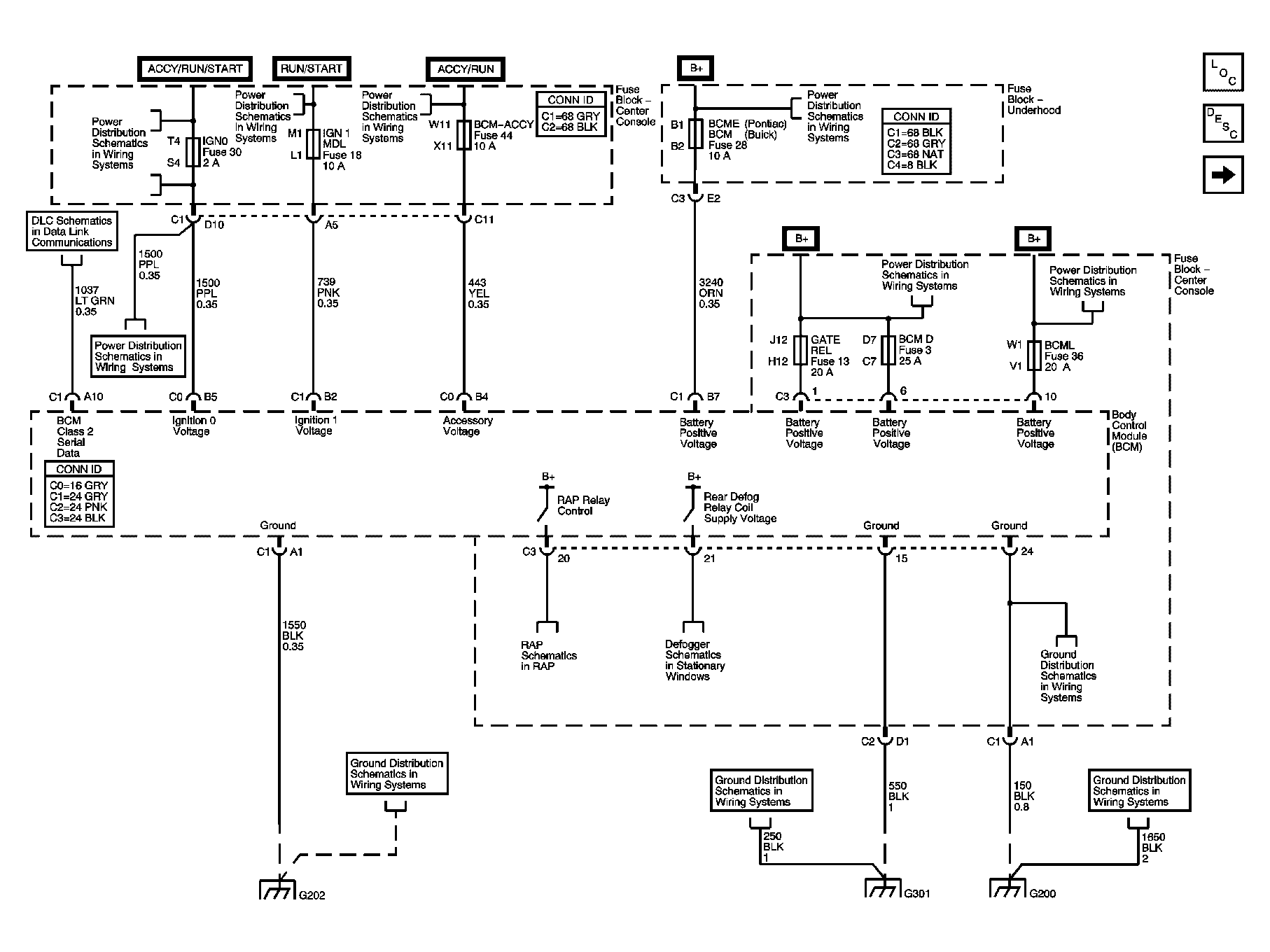

Fig 1: Power, Ground & Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

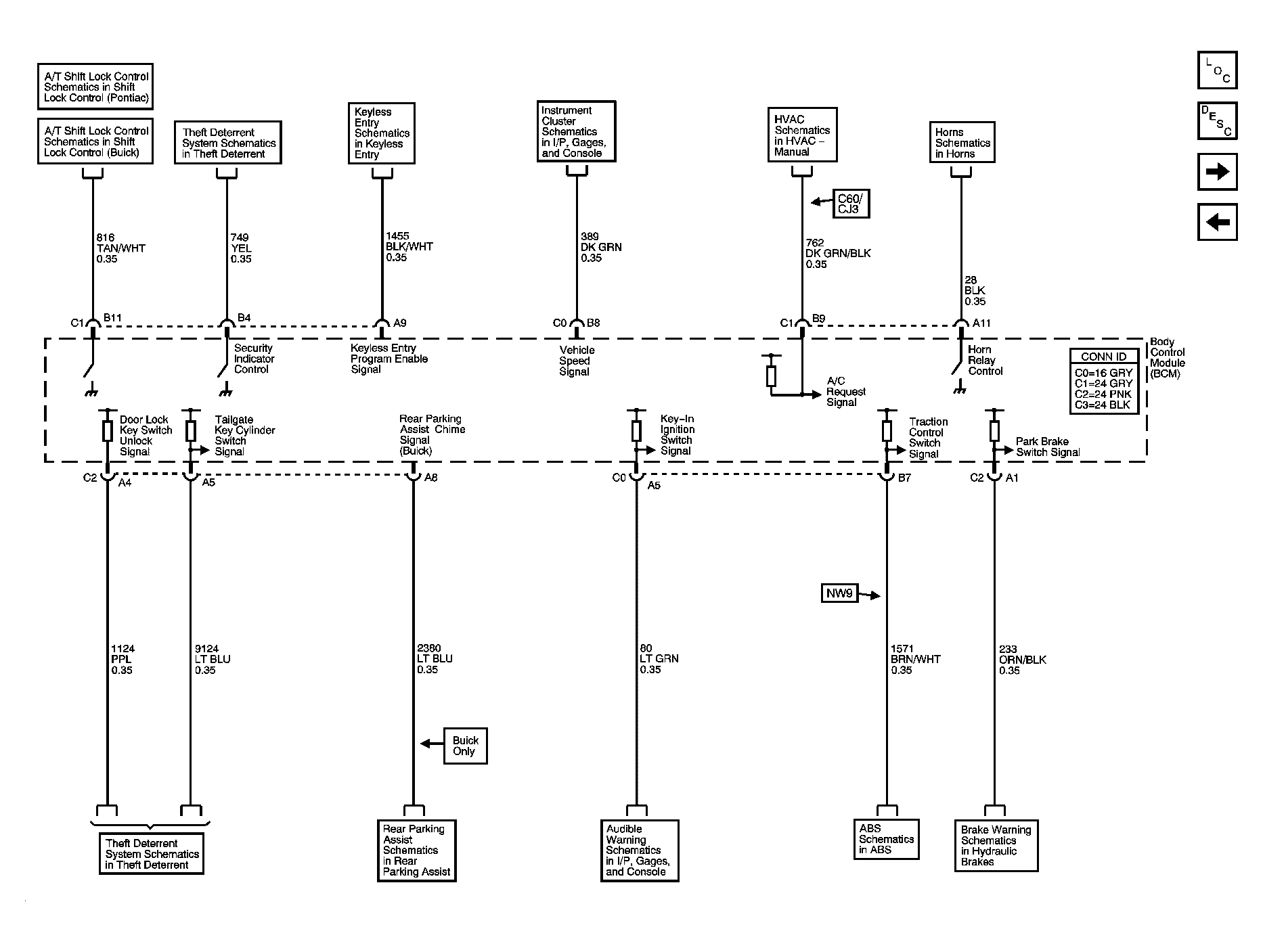

Fig 2: Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

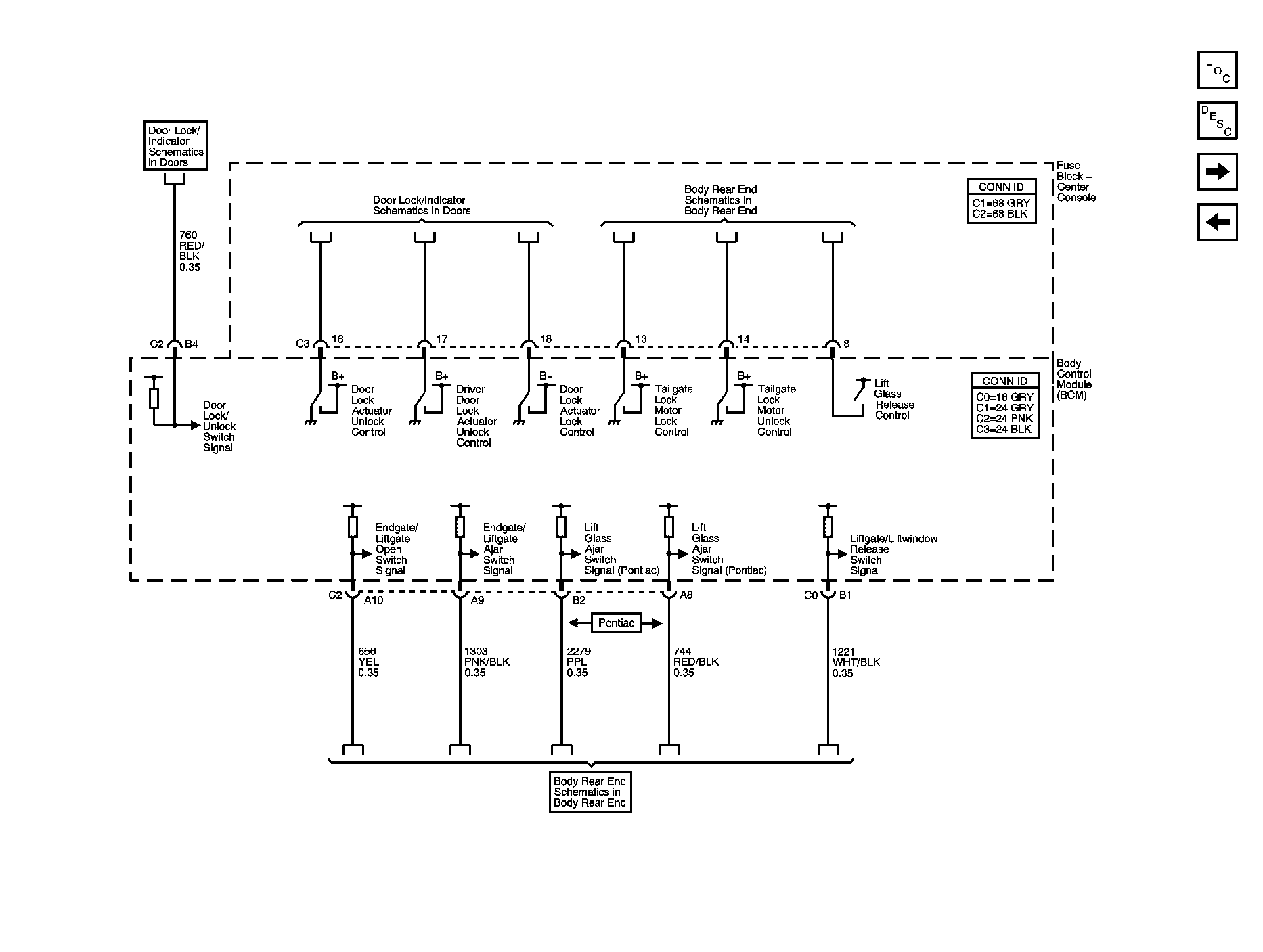

Fig 3: Door & Body Rear End References Schematic

Courtesy of GENERAL MOTORS CORP.

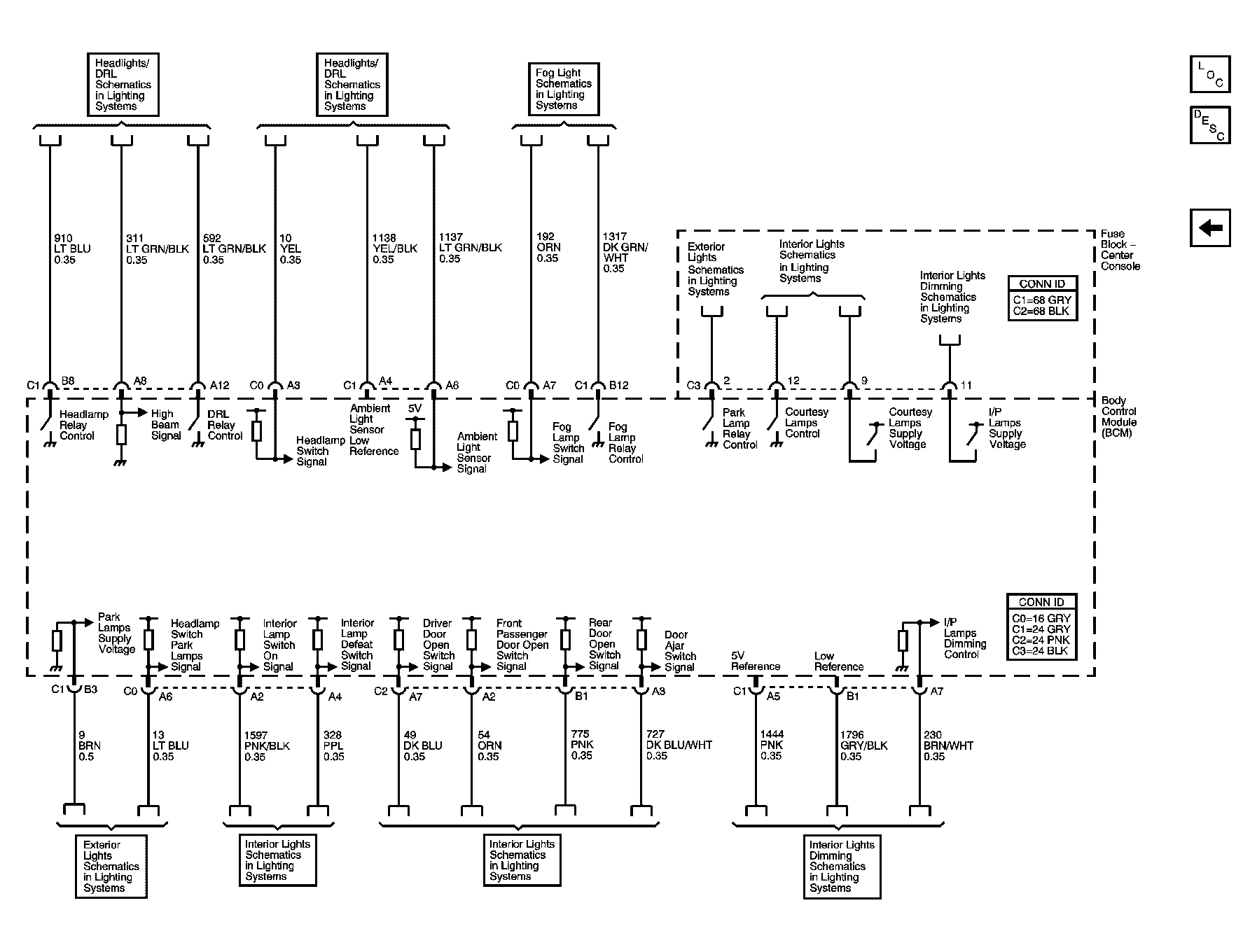

Fig 4: Lighting References Schematic

Courtesy of GENERAL MOTORS CORP.
