Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages, and Console.
  2. Disengage the retainers to the remote control door lock receiver from the I/P trim pad.
  3. Disconnect the electrical connector (1) from the door lock receiver (2).
  4. Remove the door lock receiver.

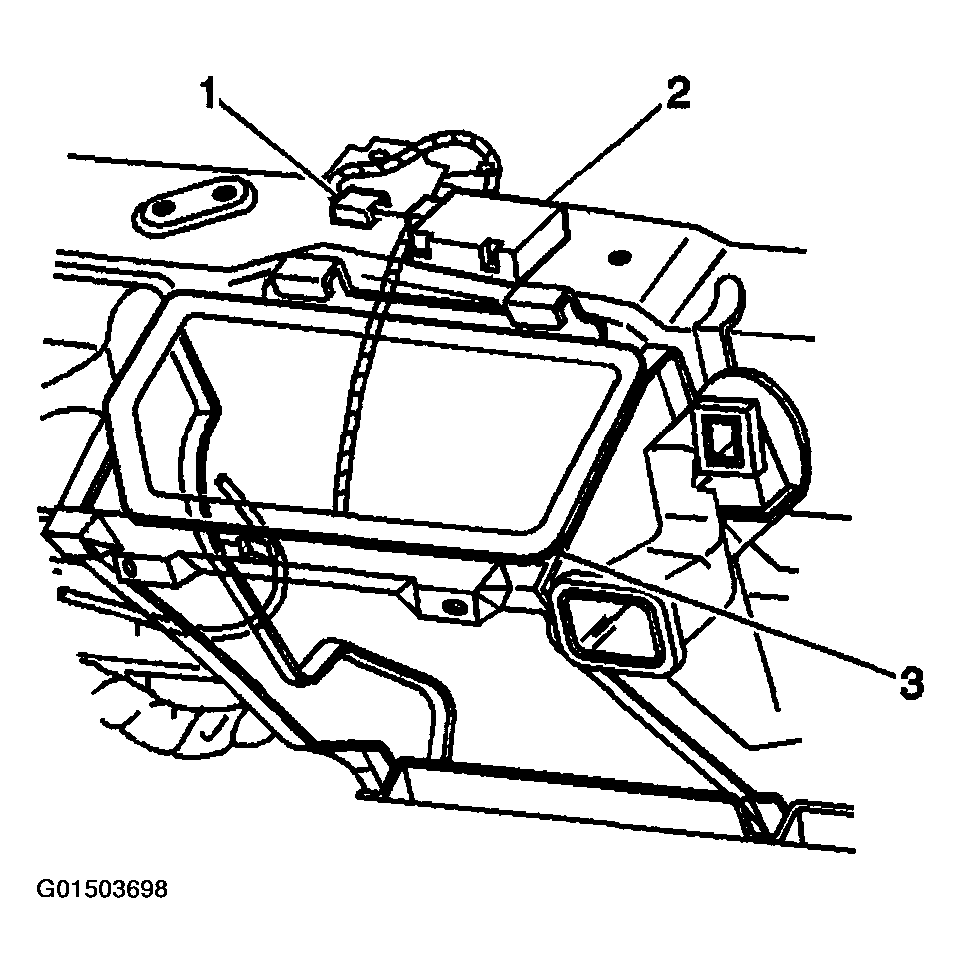

    Fig 1: Disconnecting Electrical Connector From Door Lock Receiver
    G01503698Courtesy of GENERAL MOTORS CORP.
