Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a dime or a flat-bladed tool into the slot on the side of the transmitter in order to disassemble the transmitter.
  2. Twist the dime or tool in order to separate the halves.
  3. Remove the battery from the transmitter.

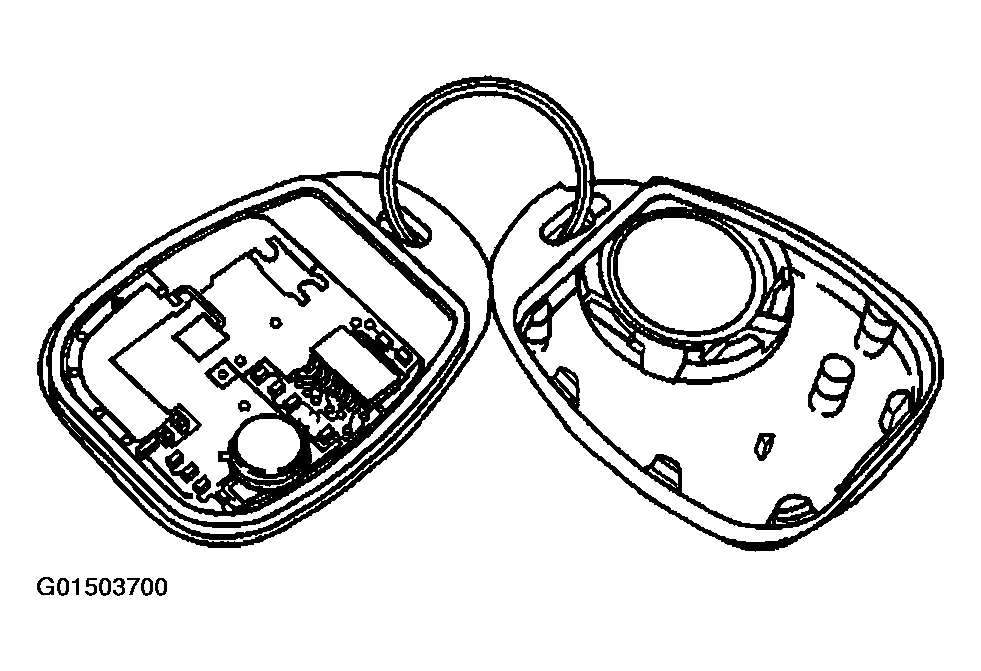

    Fig 1: View of Inside of Transmitter
    G01503700Courtesy of GENERAL MOTORS CORP.
