Preliminary Inspection

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2001 Chevrolet Monte Carlo, and 2001 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Verify customer's complaint by operating suspect system. Visually inspect for obvious signs of electrical and/or mechanical damage. Check for blown fuses. For fuse and/or relay identification, refer to illustrations. See Fig 1 - Fig 4 . Check for, loose or corroded connections, damaged wiring harnesses and/or switches. Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Pay special attention to harness routing where wires are hinged or make sharp bends. Ensure any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. If fault is not found, perform self-diagnostics. See SELF-DIAGNOSTIC SYSTEM .

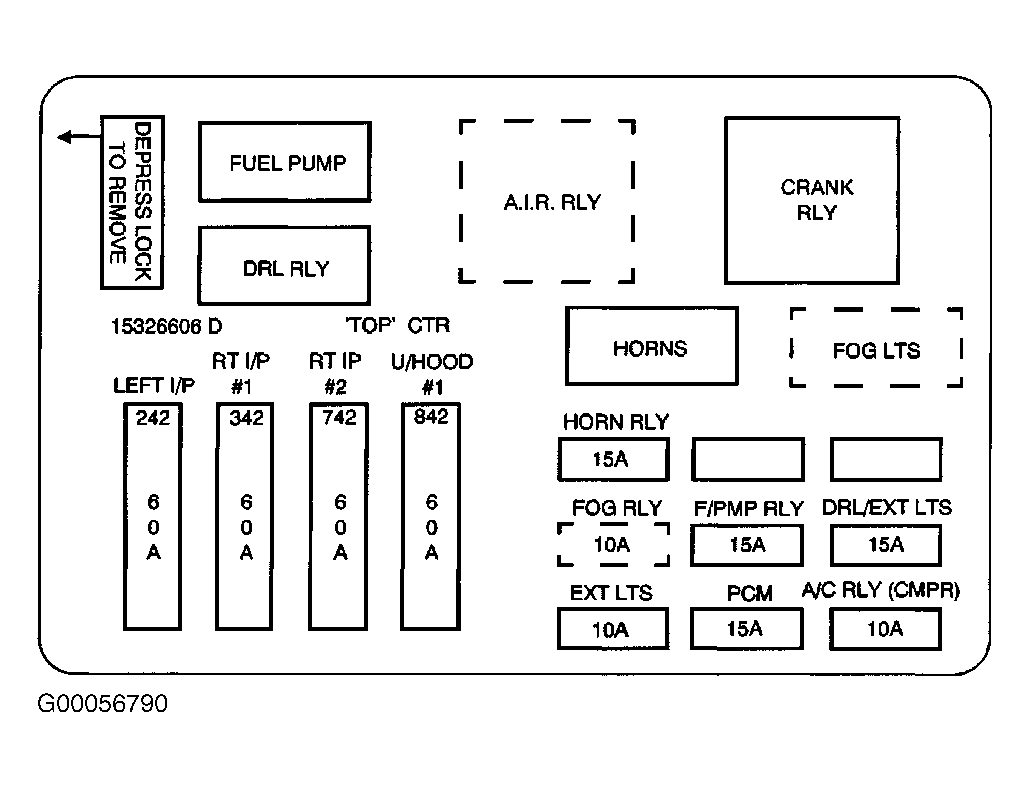

Fig 1: Identifying Underhood Top Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

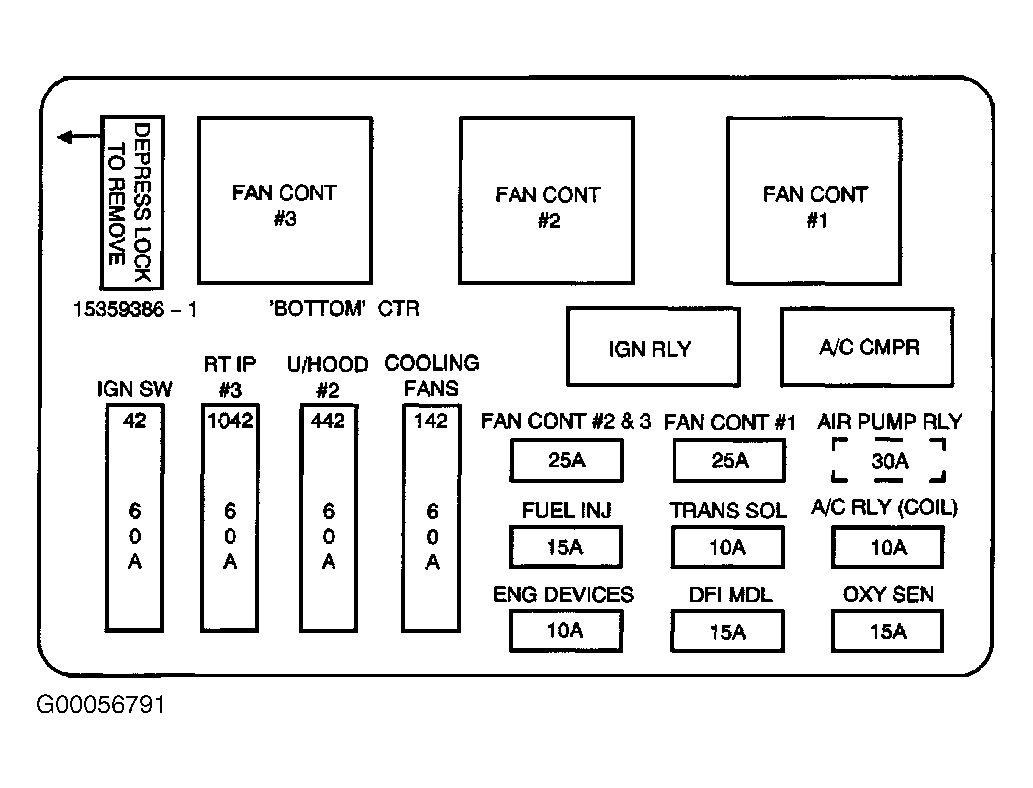

Fig 2: Identifying Underhood Bottom Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

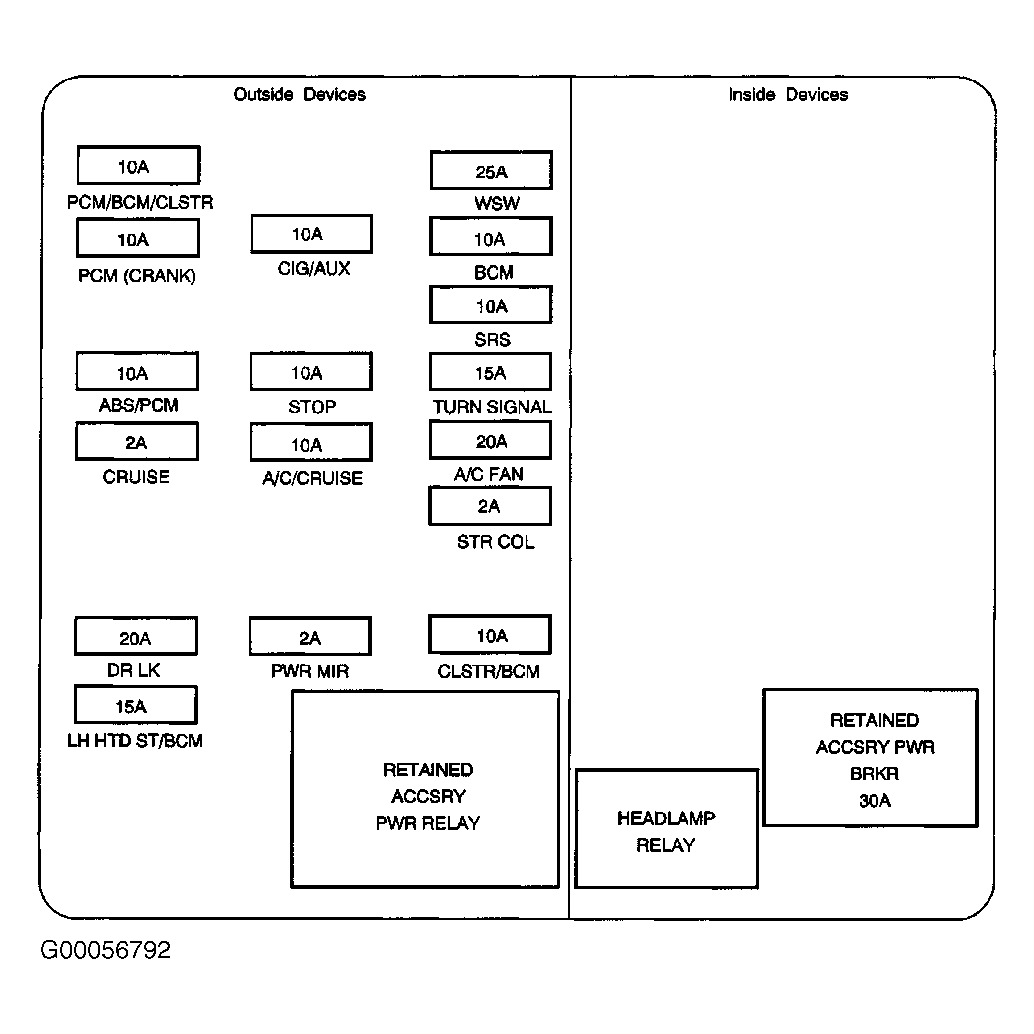

Fig 3: Identifying Left Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

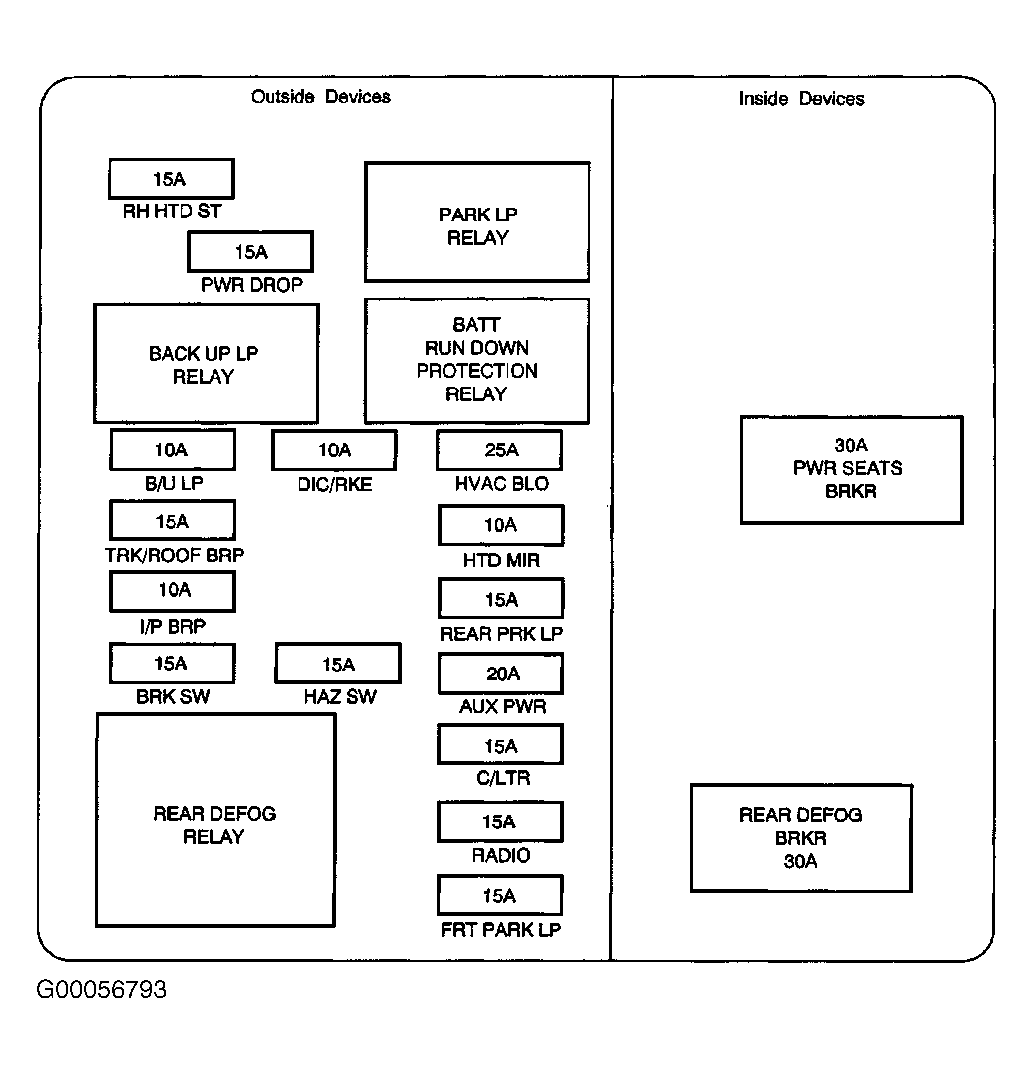

Fig 4: Identifying Right Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.
