WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

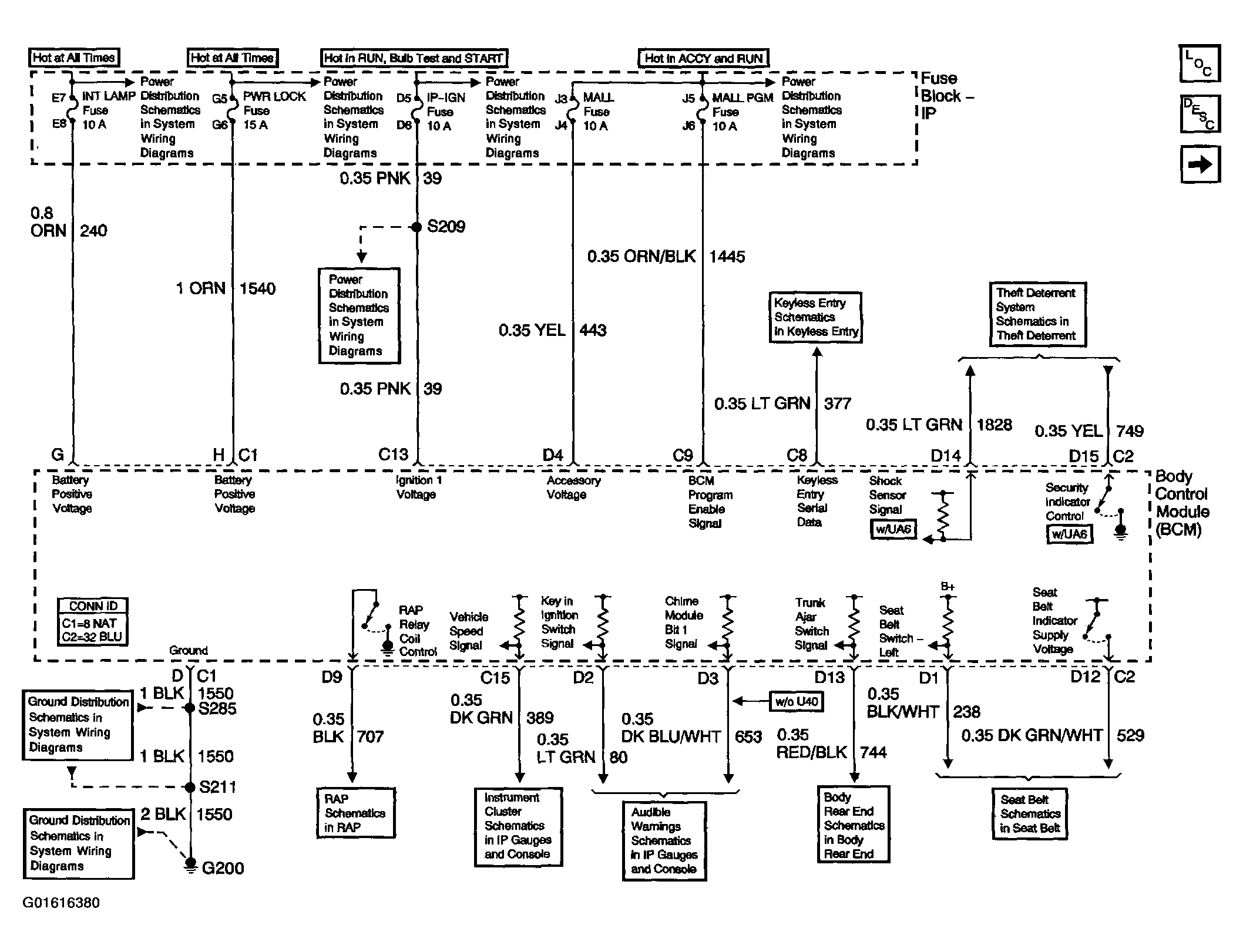

Fig 1: Body Control Module Schematic (Power, Ground, & References)
Courtesy of GENERAL MOTORS CORP.

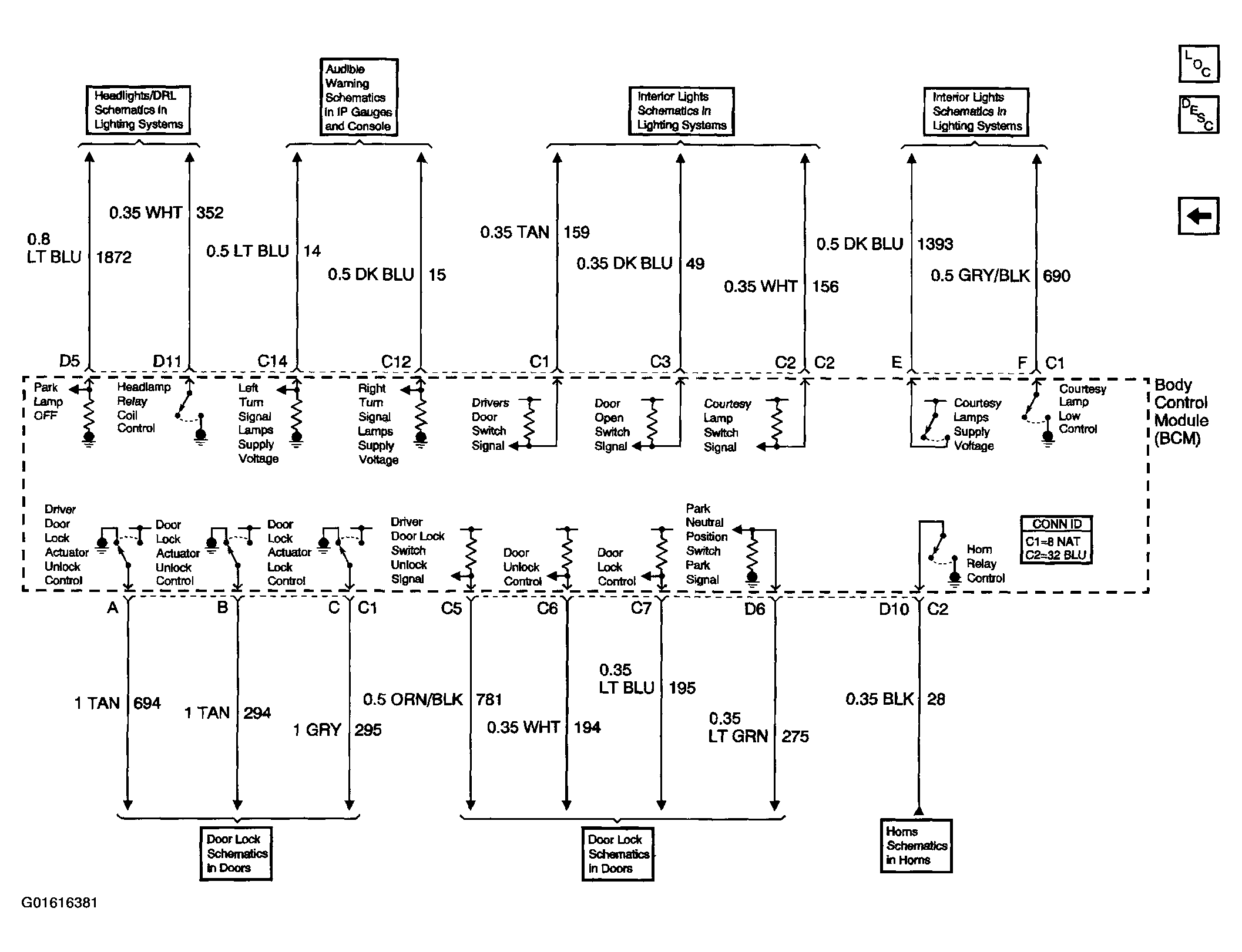

Fig 2: Body Control Module Schematic (Lighting, Door Locks, & Horn References)
