Inflatable Restraint Vehicle Rollover Sensor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

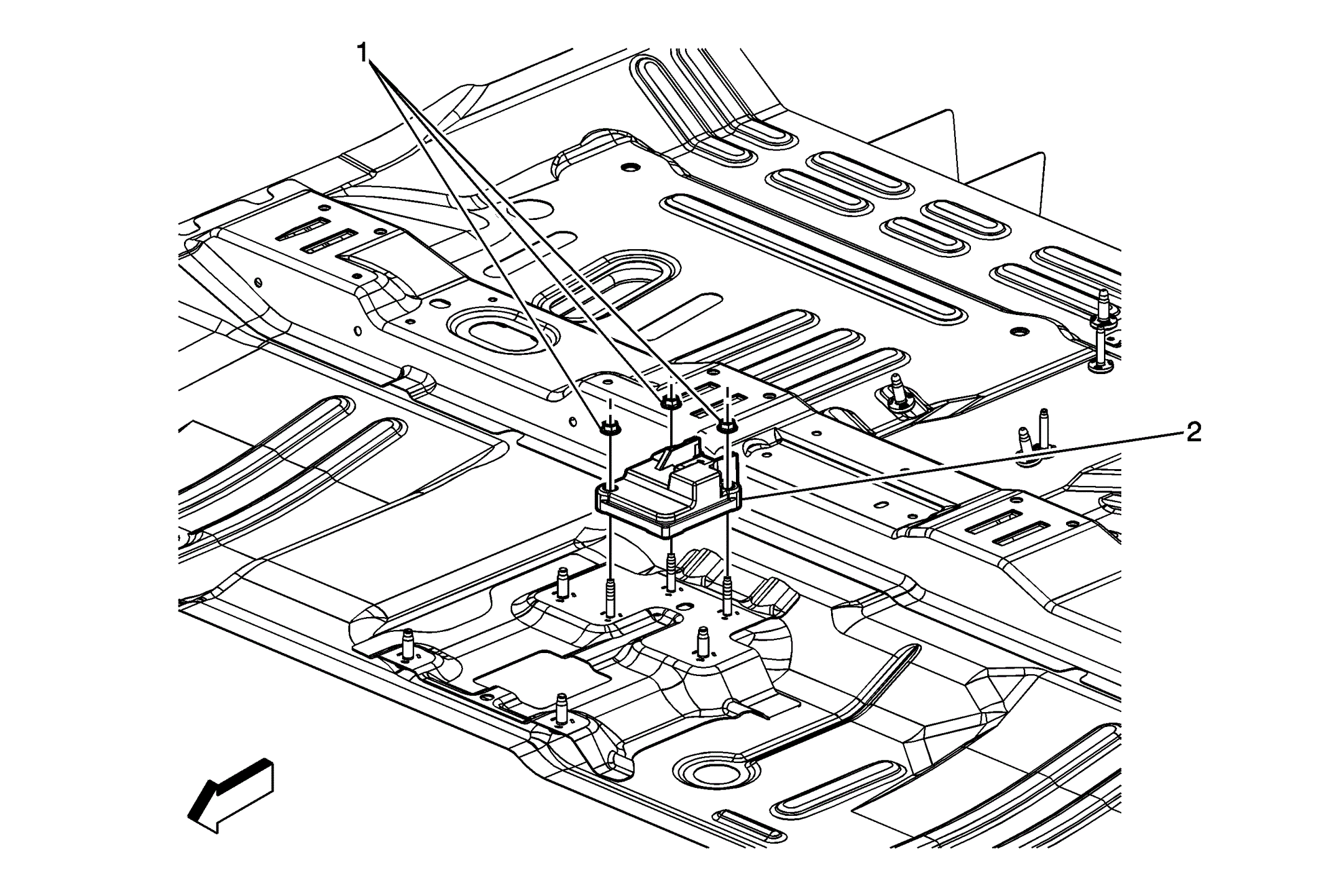

Fig 1: View Of Inflatable Restraint Vehicle Rollover Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front floor console. Refer to Front Floor Console Replacement . Remove the center floor air outlet duct. Refer to Floor Air Outlet Replacement - Center .
1	Inflatable Restraint Vehicle Rollover Sensor Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (88 lb ft)
2	Inflatable Restraint Vehicle Rollover Sensor Assembly Procedure Position the carpet in order to access the sensor. Disconnect the electrical connectors.

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front floor console. Refer to Front Floor Console Replacement .
Remove the center floor air outlet duct. Refer to Floor Air Outlet Replacement - Center .

Inflatable Restraint Vehicle Rollover Sensor Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (88 lb ft)

Inflatable Restraint Vehicle Rollover Sensor Assembly

Procedure

Position the carpet in order to access the sensor.
Disconnect the electrical connectors.
