Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) cluster (3). Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Disconnect the electrical connector (2).
  3. Disengage the remote control door lock receiver retainers. Remove the remote control door lock receiver (1).

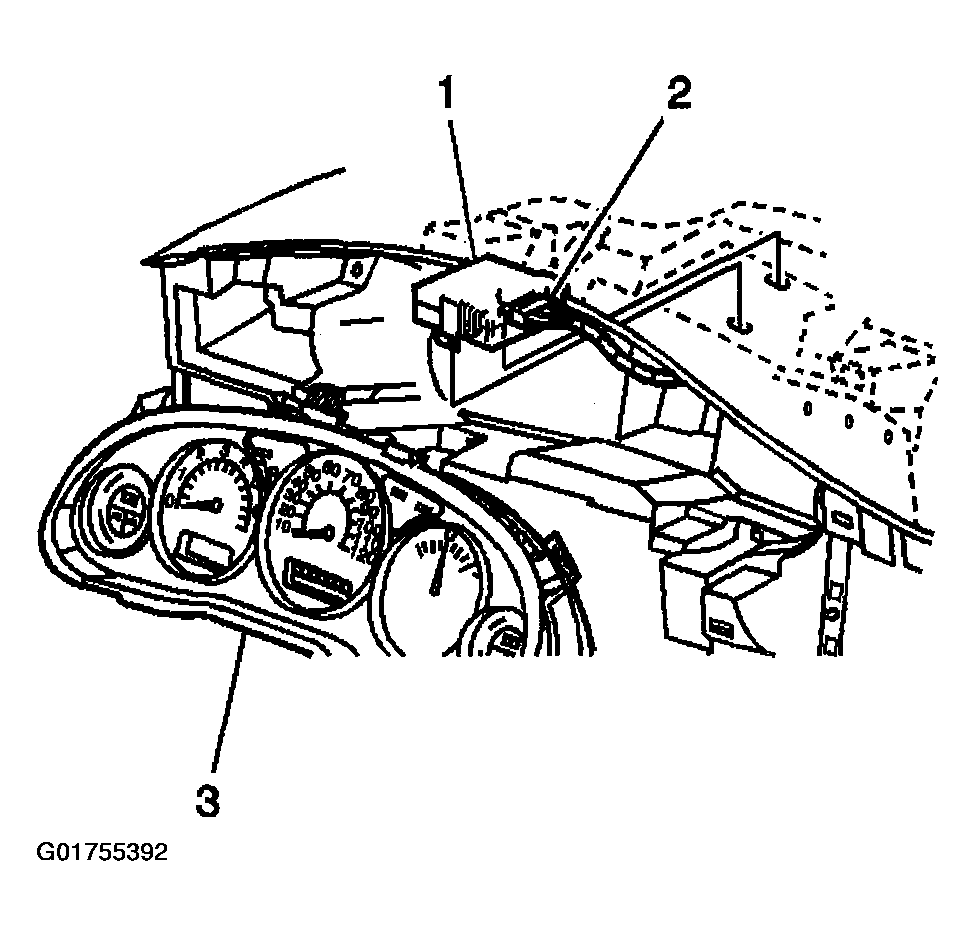

    Fig 1: Identifying Remote Control Door Lock Receiver
    G01755392Courtesy of GENERAL MOTORS CORP.
