DTC Testing: Notes

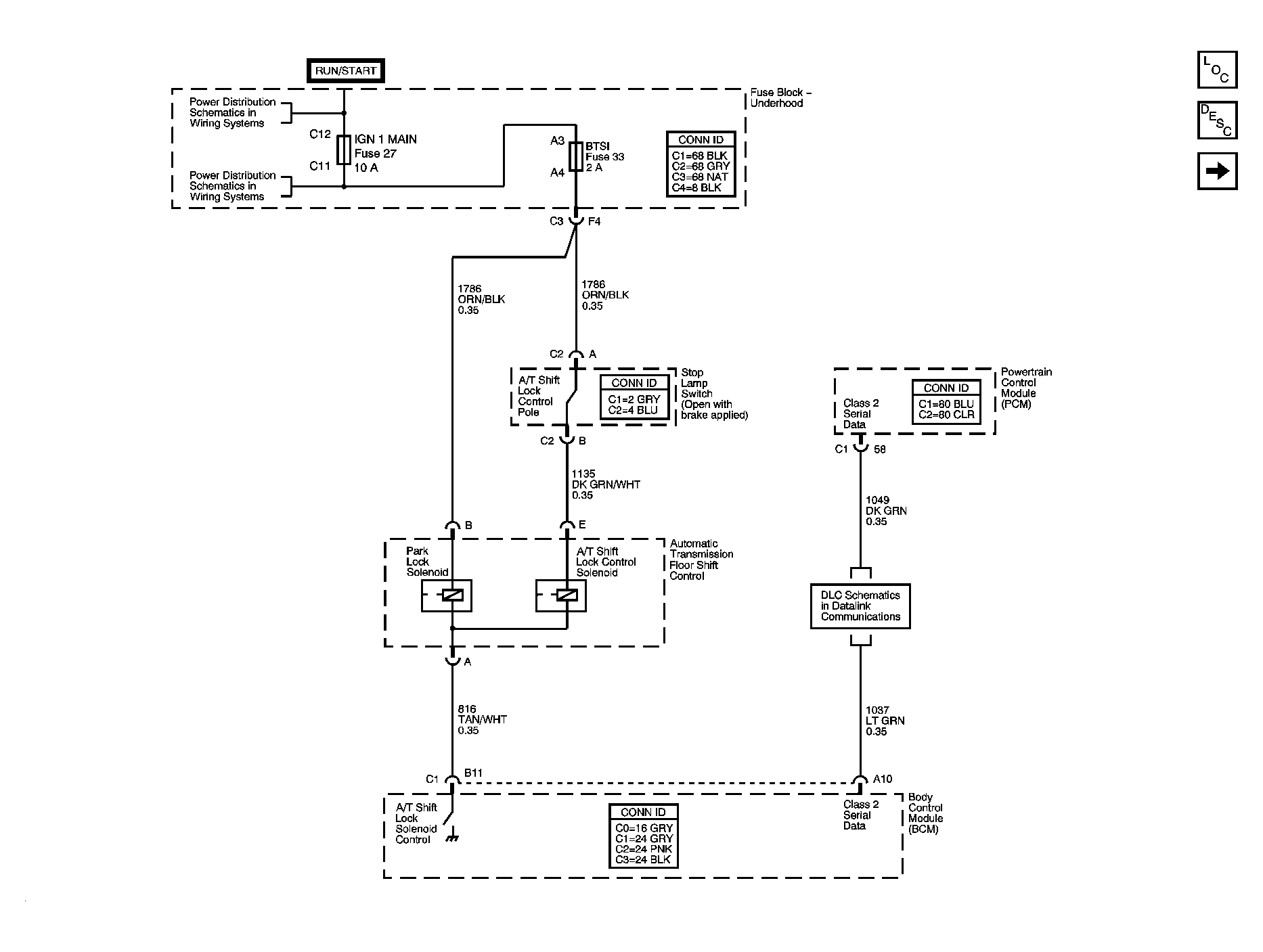

For circuit schematic, see Figure.
SHIFT LOCK DIAGNOSTIC TROUBLE CODES
| DTC |
Descritpion |
| B2712 |
controlled ground circuit voltage is approximately equal to ground in the OFF state |
| B2713 |
controlled ground circuit voltage is approximately equal to battery voltage in the ON state |
