Transfer Case Disassembled View

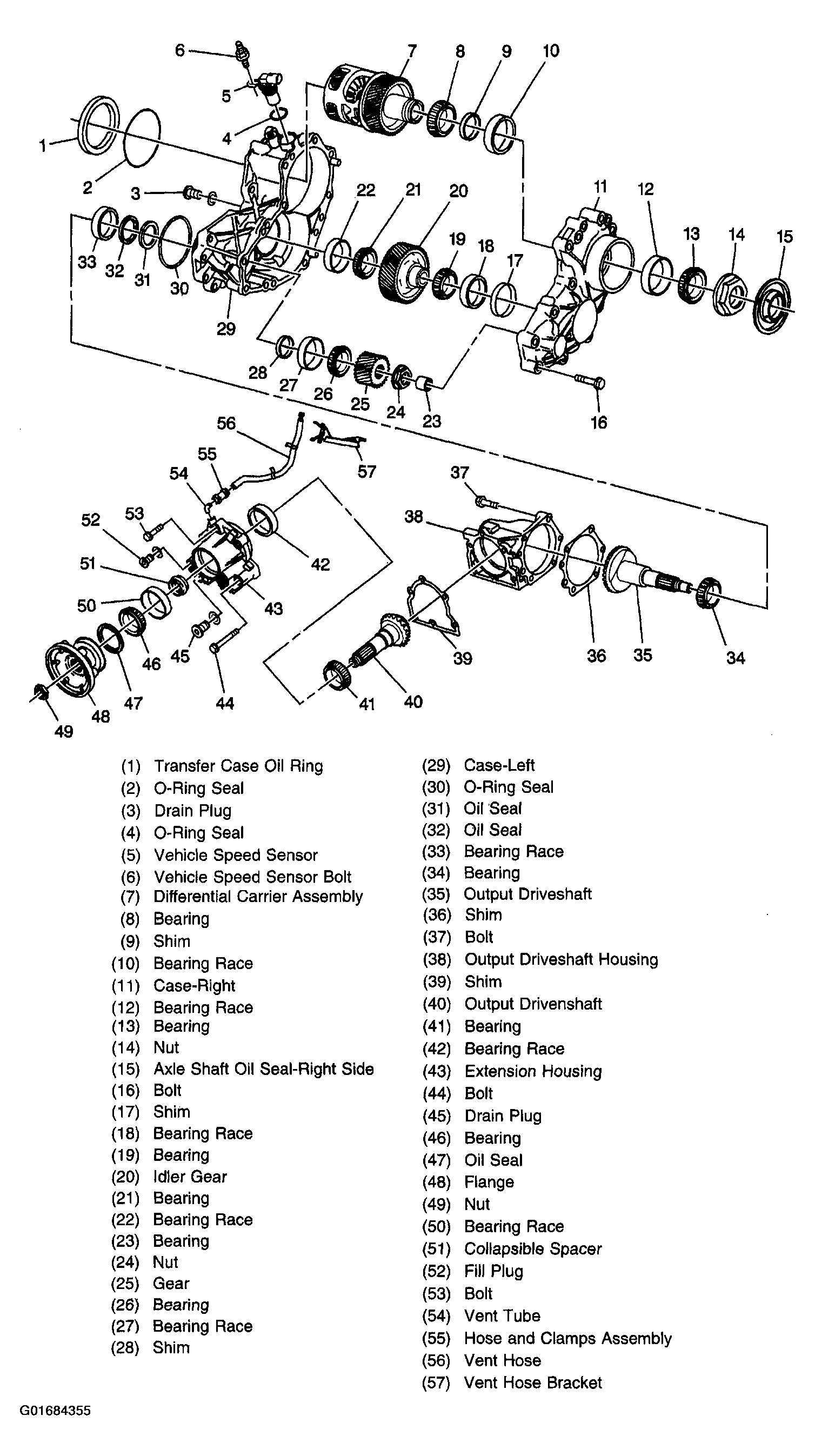

Fig 1: Transfer Case Assembly

G01684355

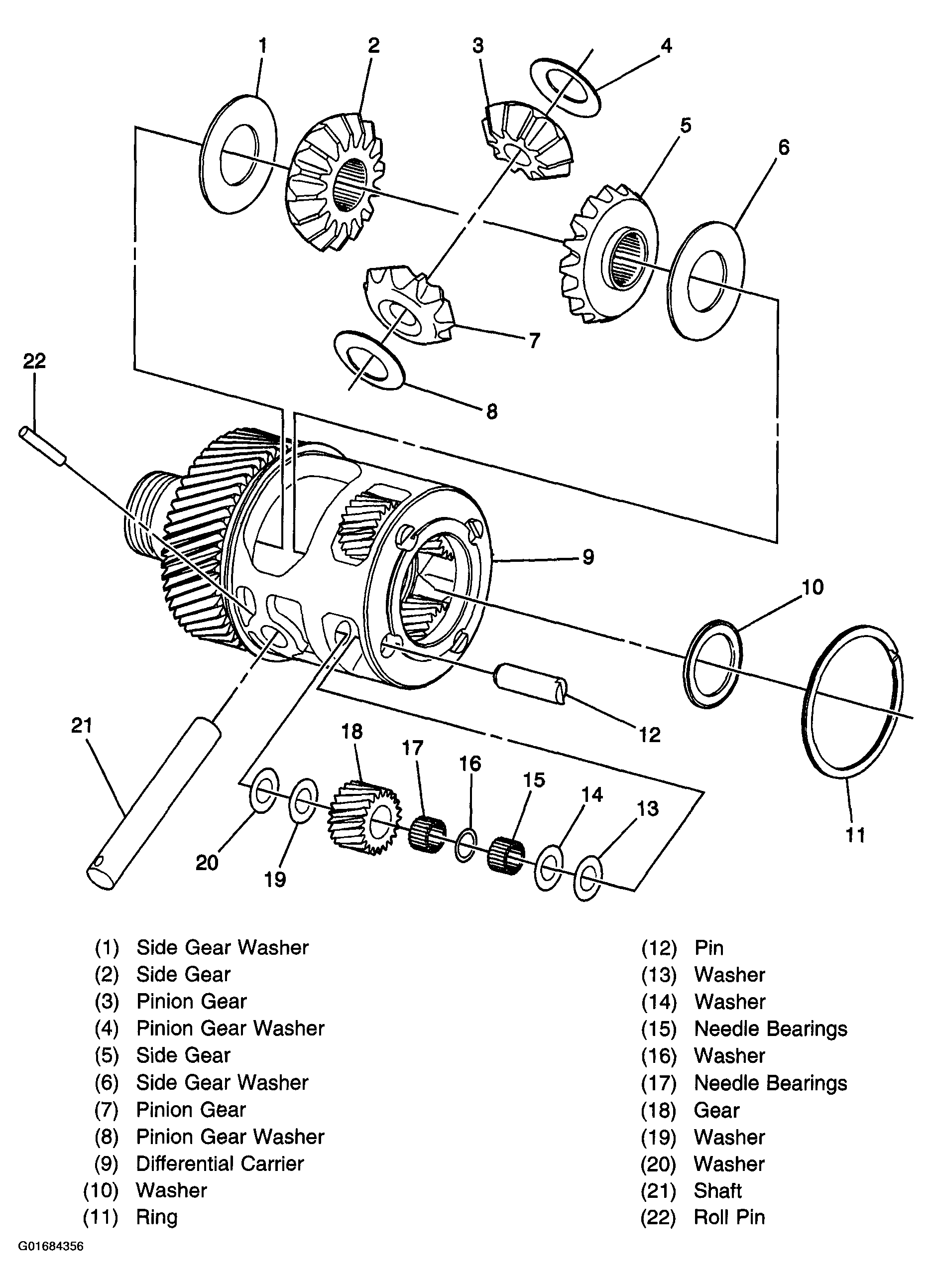

Fig 2: Carrier Assembly

G01684356
