Body Control Module: Installation

  1. Install BCM (1) onto center console fuse block. See Fig 1.
  2. Rotate BCM retaining lever (2) to secure BCM to center console fuse block.
  3. Install center console fuse block. Reversing removal procedure.
  4. Connect negative battery cable.
  5. Perform new BCM setup. See BODY CONTROL MODULE PROGRAMMING - REGULAR PRODUCTION OPTION CONFIGURATION  under PROGRAMMING.

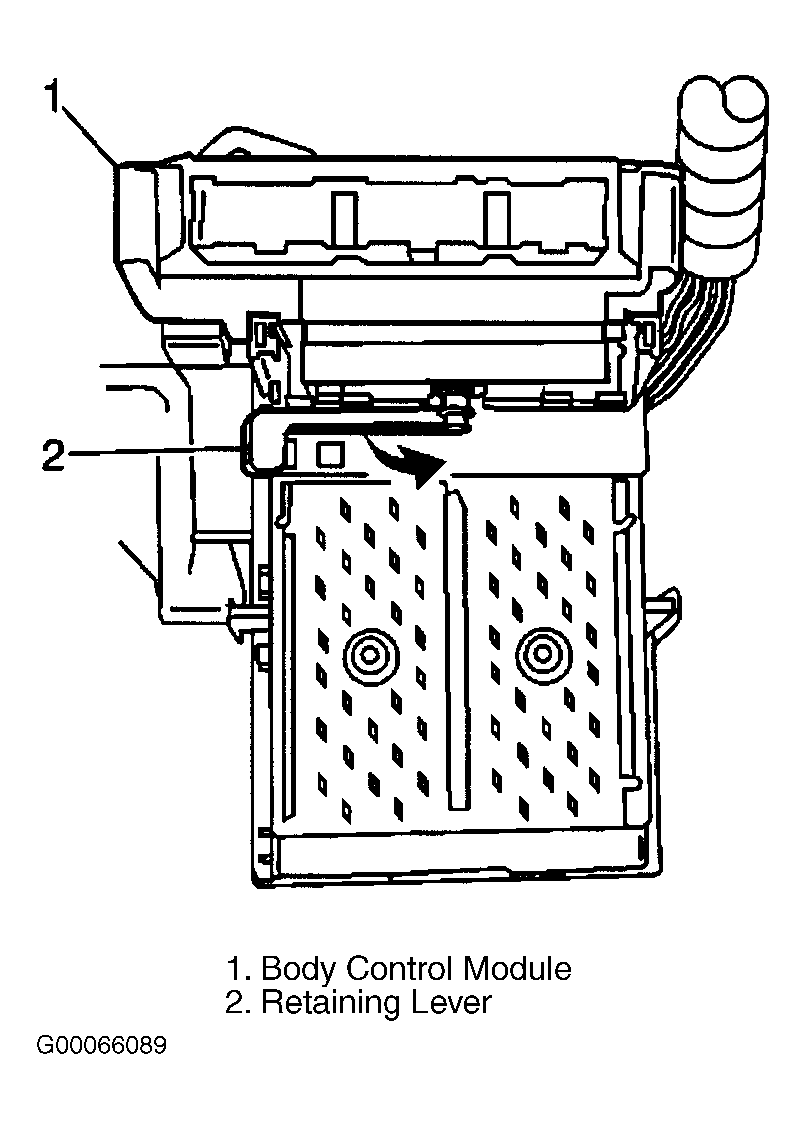

Fig 1: Removing & Installing Body Control Module
G00066089Courtesy of GENERAL MOTORS CORP.
