Master Window Switch: Installation

  1. Install front door window control switch (2) into front door window switch plate. See Fig 1 .
  2. Connect harness connectors to front door window control switch.
  3. Install front door window control switch plate to front door panel pressing into place until fully seated.

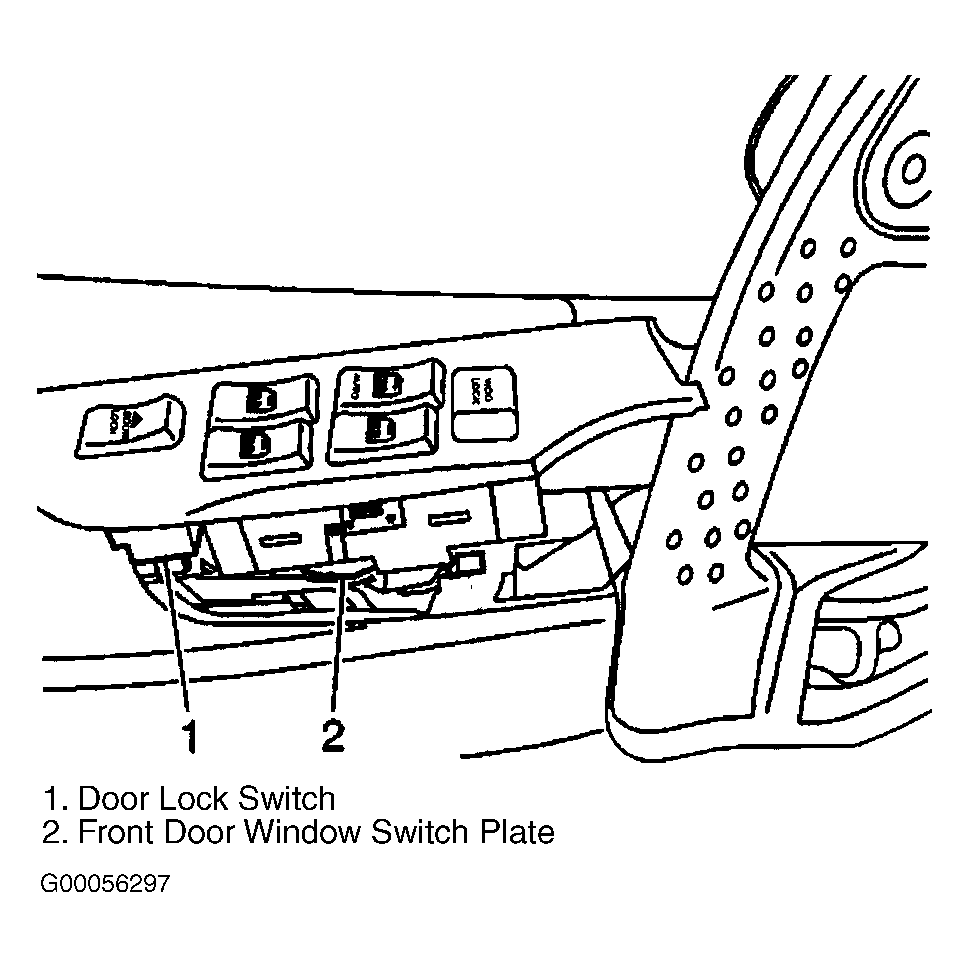

Fig 1: Removing & Installing Front Door Switch Plate & Power Window Switches
G00056297Courtesy of GENERAL MOTORS CORP.
