Right Front Window Switch: Installation

  1. Install passenger front door window switch (1) into front door window switch plate pressing into place until fully seated. See Fig 1 .
  2. Connect harness connectors to passenger front door window switch.
  3. Install passenger front door window switch plate to front door panel pressing into place until fully seated.

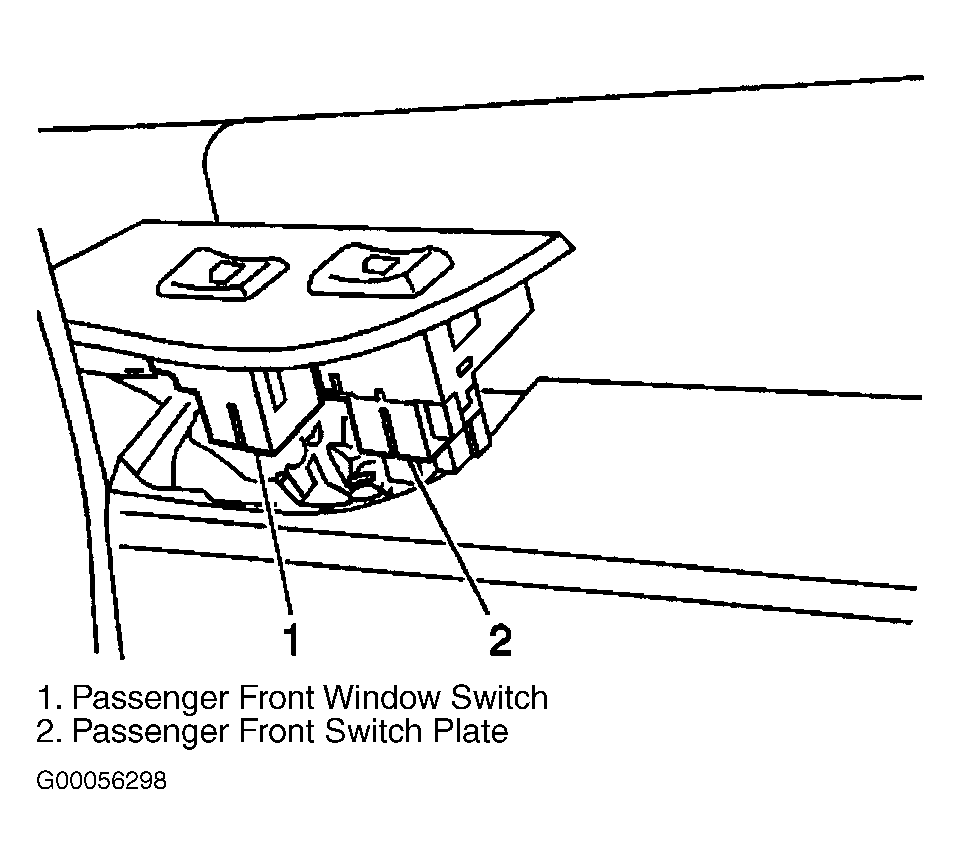

Fig 1: Removing & Installing Passenger Front Window Switch
G00056298Courtesy of GENERAL MOTORS CORP.
