Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module (BCM) | In console, attached to console accessory wiring junction block. |

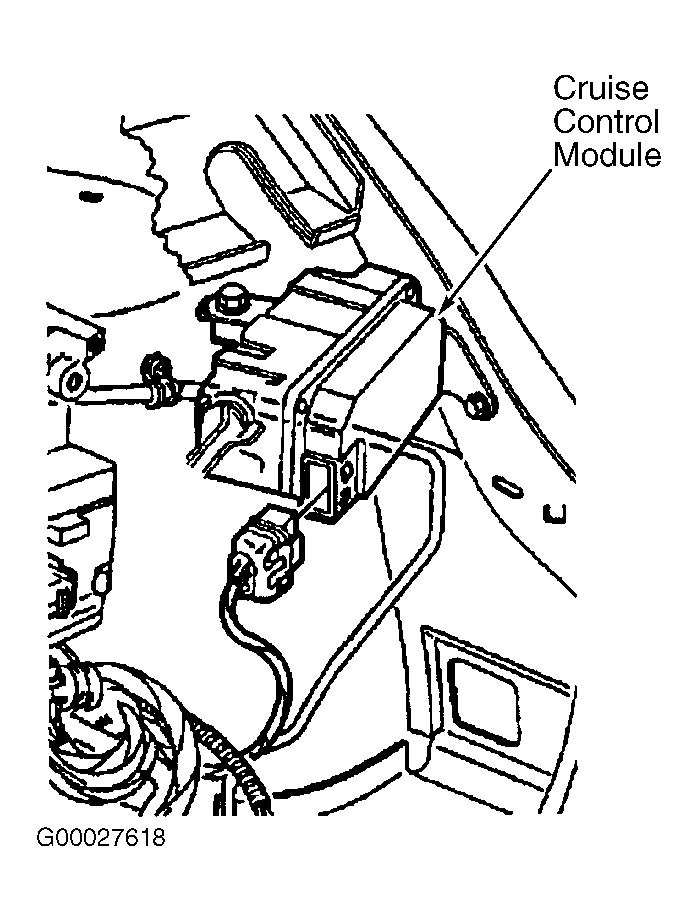

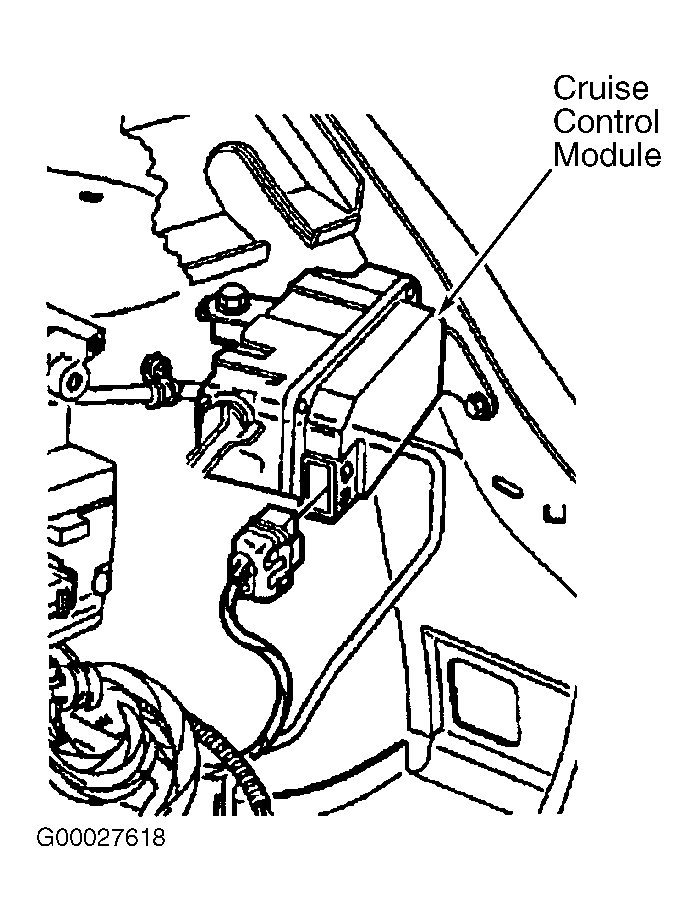

| Cruise Control Module | At left side of engine compartment, near strut tower. See Figure . |
| Electronic Brake Control Module (EBCM) | Left side of engine compartment. See Figure . |
| Engine Coolant Level Indicator Module | On right rear side of radiator. |
| Ignition Control Module (ICM) | On top of right valve cover. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under right front seat. |

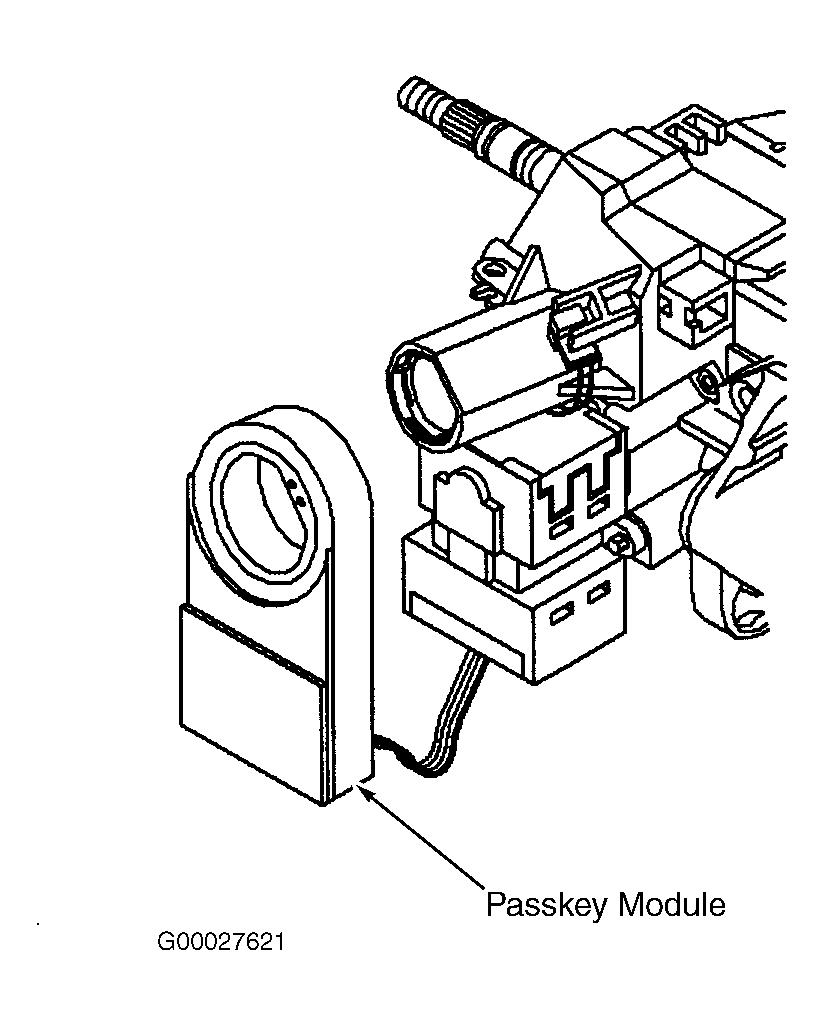

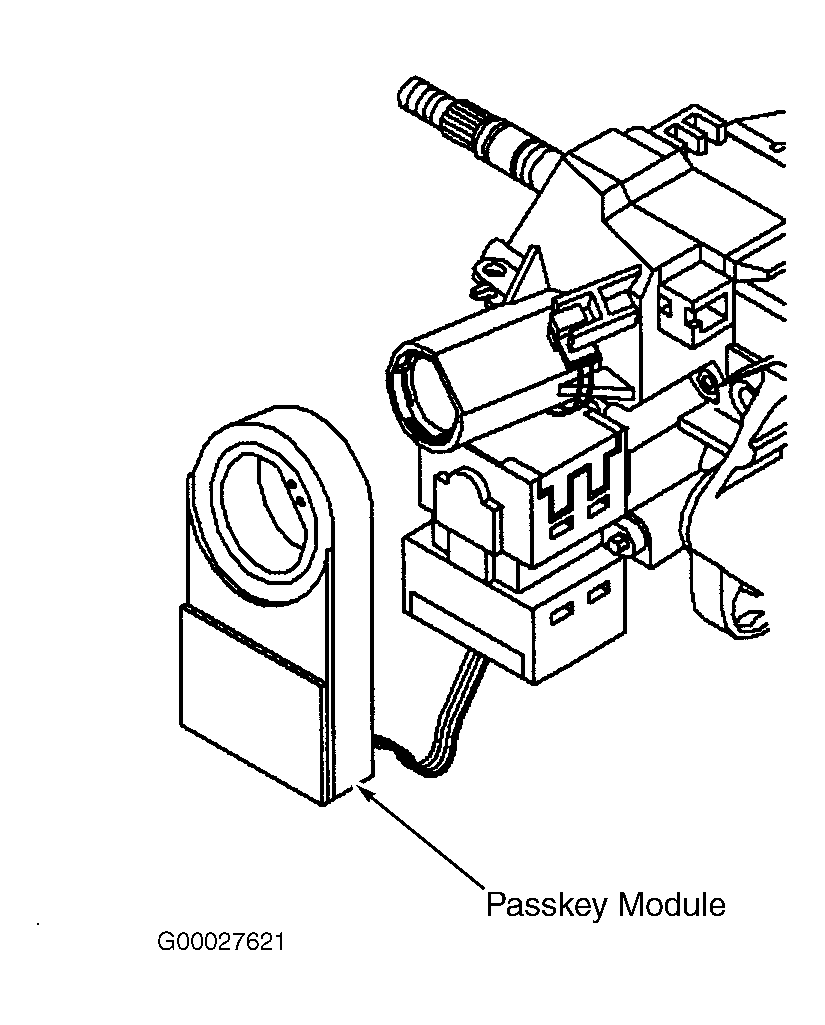

| Passkey Module | On top of steering column, at ignition switch. See Figure . |
| Powertrain Control Module (PCM) | At left side of engine compartment, in air cleaner assembly. See Figure . |
| Sunroof Control Module | In roof. |
