Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Automatic Level Control Inflator Air Switch | Inside vehicle, behind left rear wheelhouse. |
| Brake Fluid Level Indicator Switch | On side of brake fluid reservoir. |
| Cruise Control Release Switch | On brake pedal support. |
| Engine Oil Level Indicator Switch | On bottom of engine oil pan. |

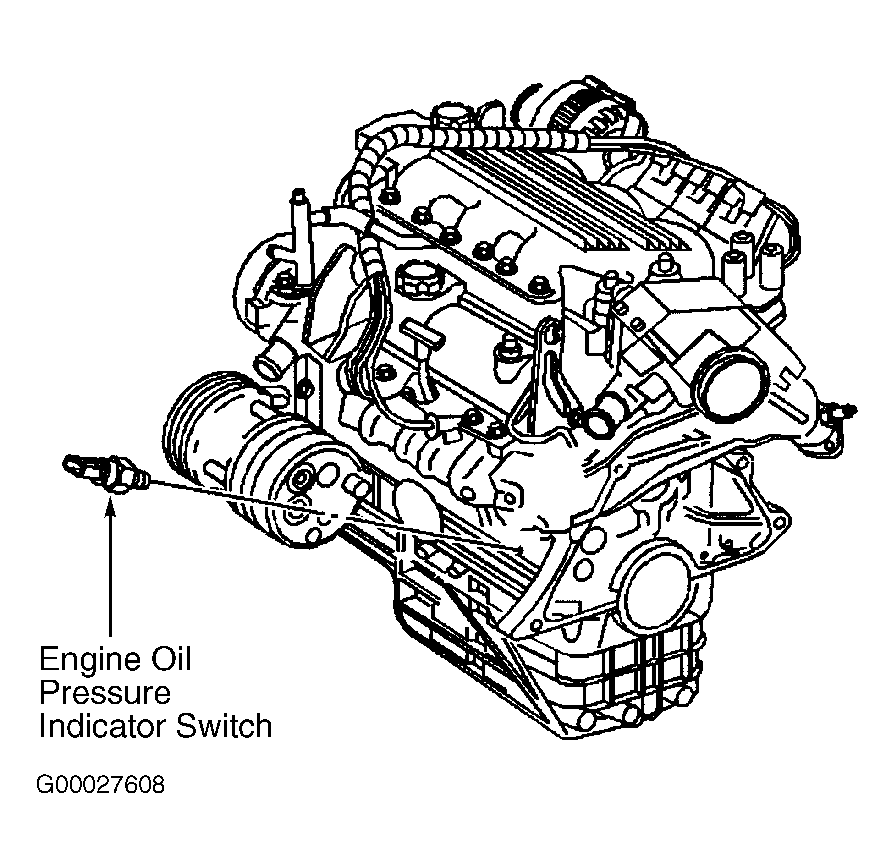

| Engine Oil Pressure Indicator Switch | On lower left side of engine, above starter. See Figure . |
| Park Brake Indicator Switch | On park brake assembly. |
| Seat Belt Switch | In right half of driver's seat belt. |
| Stoplight Switch | On brake pedal support. |
| Transaxle Range Switch | On top of transaxle. |
| Windshield Washer Solvent Level Switch | On front washer solvent container. |
