Keyless Entry Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

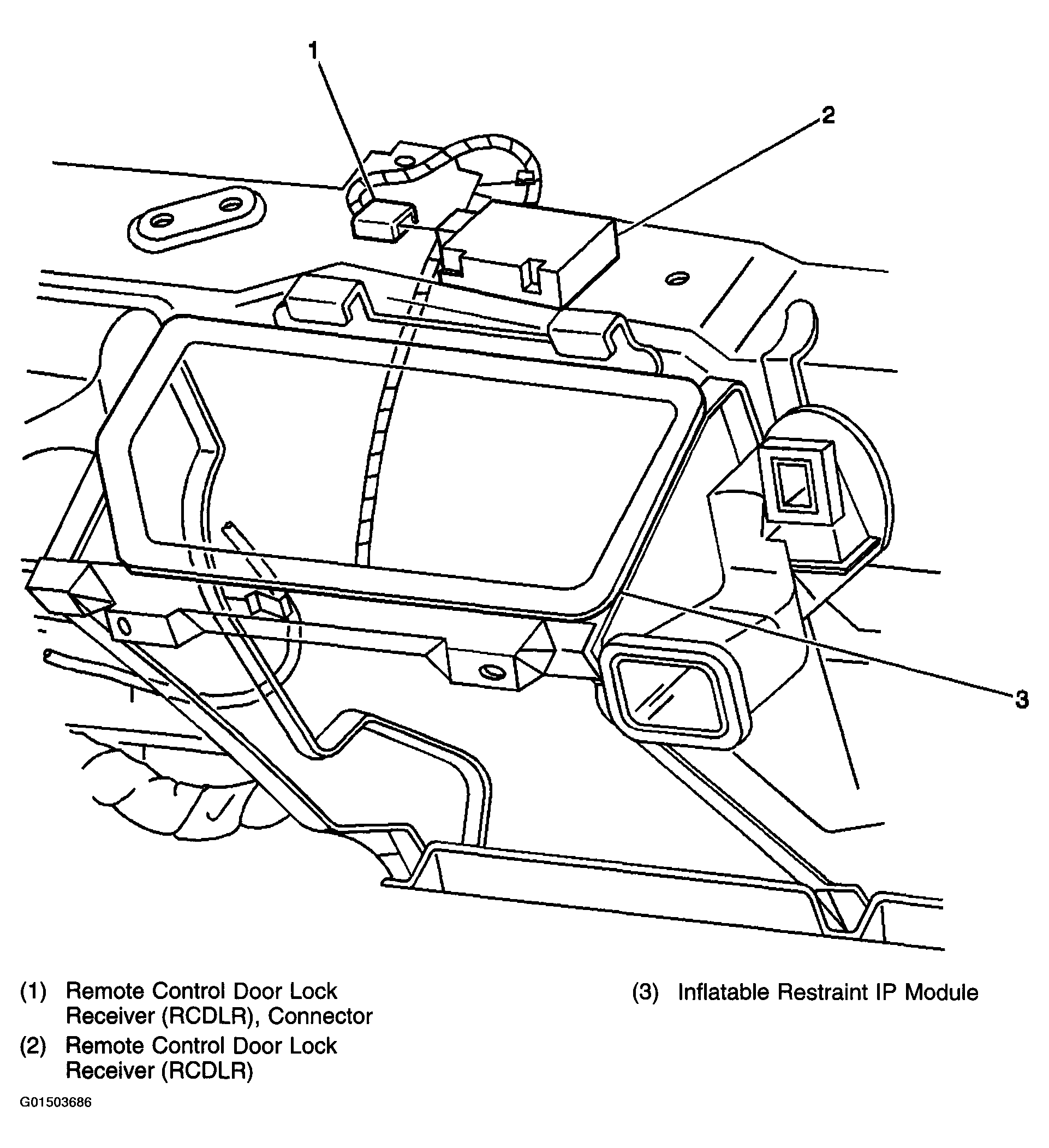

Fig 1: Keyless Entry Component View (RH Side Of Instrument Panel)
G01503686Courtesy of GENERAL MOTORS CORP.
