Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector (1) to the door lock receiver (2).
Install the door lock receiver to the I/P trim pad.
Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages, and Console.
Program the transmitter to the new receiver. Refer to TRANSMITTER PROGRAMMING .

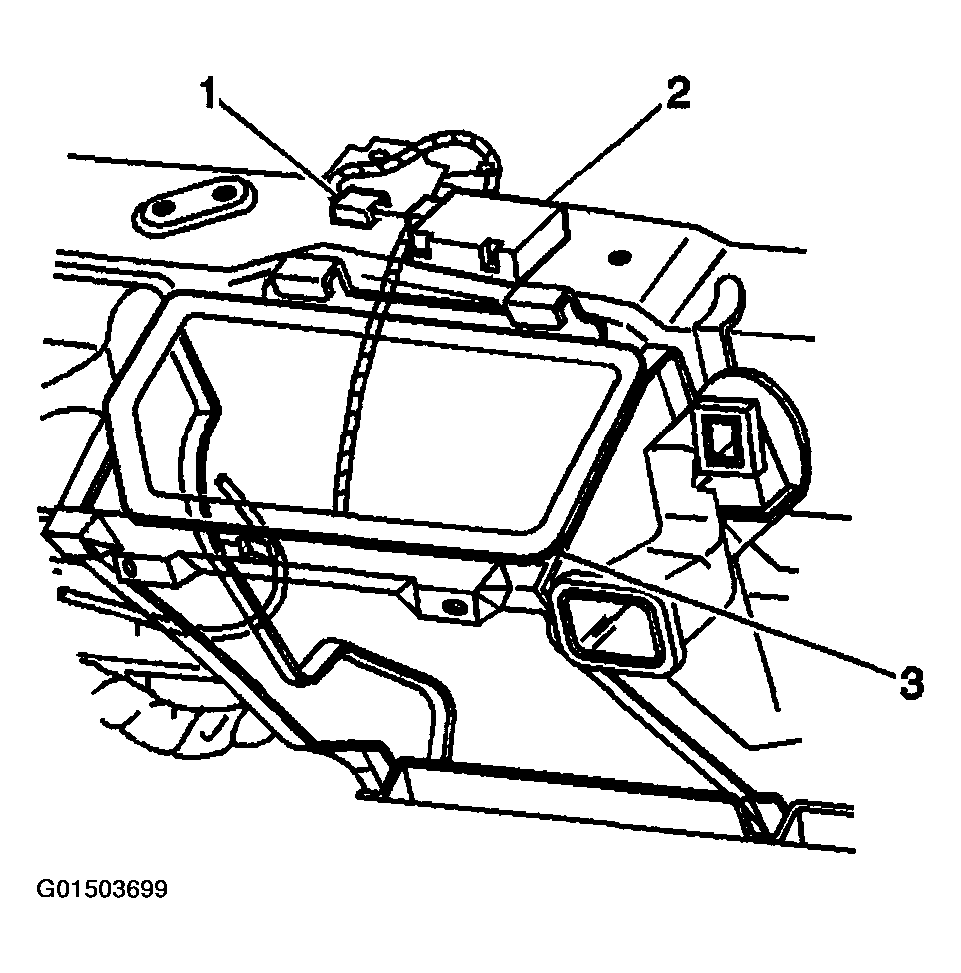

Fig 1: Connecting Electrical Connector To Door Lock Receiver
Courtesy of GENERAL MOTORS CORP.
