Body Control Module Component Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

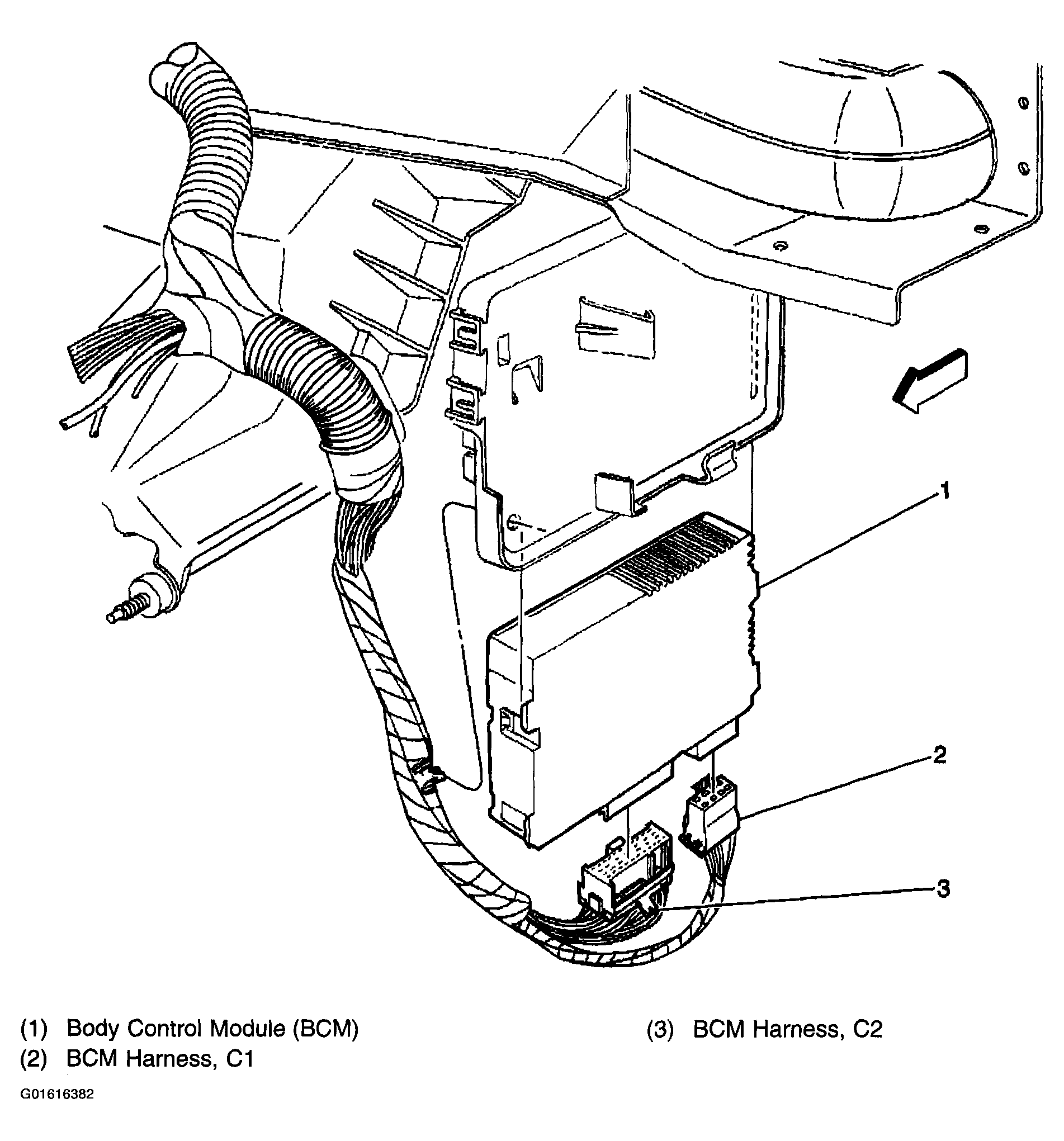

Fig 1: Locating Body Control Module (Lower LH Side of I/P)
G01616382Courtesy of GENERAL MOTORS CORP.
