Inflatable Restraint Sensing and Diagnostic Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

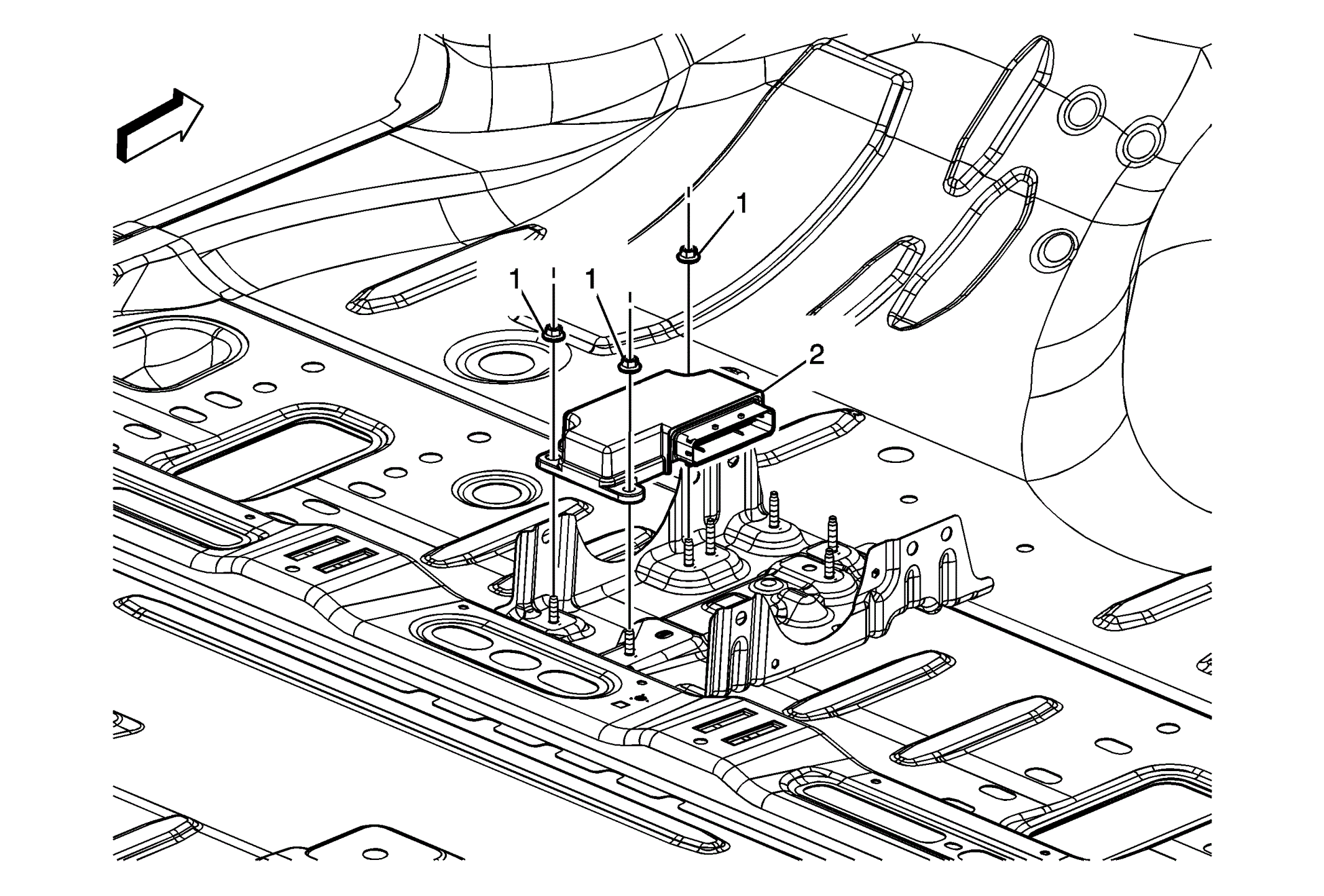

Fig 1: Identifying Inflatable Restraint Sensing & Diagnostic Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Do not strike or jolt the inflatable restraint sensing and diagnostic module (SDM). Before applying power to the SDM, make sure that it is securely fastened with the arrow facing toward the front of the vehicle. Failure to observe the correct installation procedure could cause SIR deployment, personal injury, or unnecessary SIR system repairs. WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front floor console. Refer to Front Floor Console Replacement .
1	Inflatable Restraint Sensor and Diagnostic Module Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Inflatable Restraint Sensor and Diagnostic Module Assembly Procedure Position the carpet in order to access the sensor. Disconnect the electrical connectors.

Callout

Component Name

WARNING: Do not strike or jolt the inflatable restraint sensing and diagnostic module (SDM). Before applying power to the SDM, make sure that it is securely fastened with the arrow facing toward the front of the vehicle. Failure to observe the correct installation procedure could cause SIR deployment, personal injury, or unnecessary SIR system repairs.

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front floor console. Refer to Front Floor Console Replacement .

Inflatable Restraint Sensor and Diagnostic Module Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Inflatable Restraint Sensor and Diagnostic Module Assembly

Procedure

Position the carpet in order to access the sensor.
Disconnect the electrical connectors.
