Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

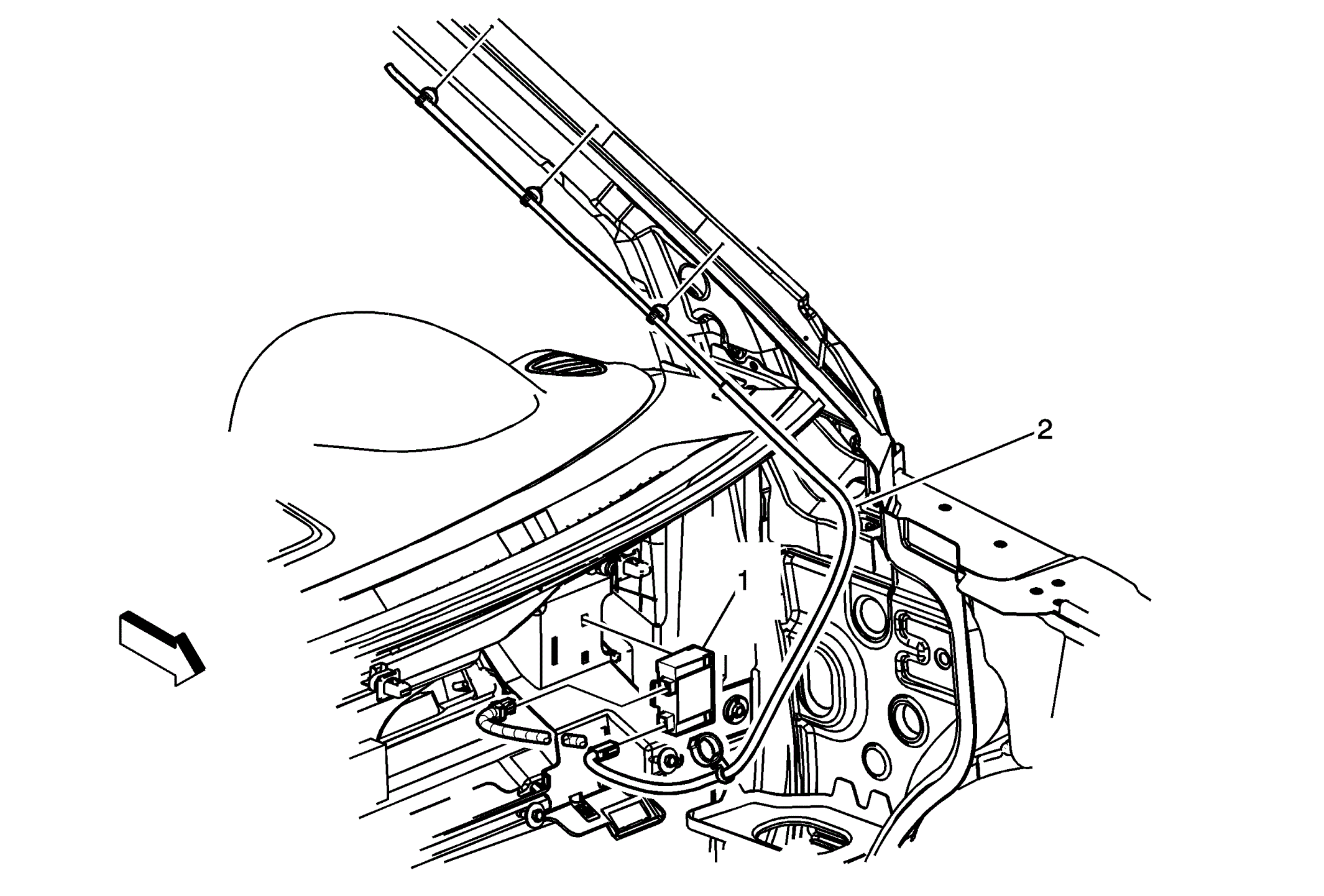

Fig 1: Ignition Lock Key Transmitter Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove driver side windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement Remove remote control door lock receiver. Refer to Remote Control Door Lock Receiver Replacement
1	Remote Control Door Lock Receiver Assembly
2	Ignition Lock Key Transmitter Antenna Assembly Procedure Unclip antenna lower retainer from wire harness. Unclip upper antenna from windshield pillar. Attach mechanics wire to top of antenna. Pull antenna and wire through bottom of IP.

Callout

Component Name

Preliminary Procedure

Remove driver side windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement
Remove remote control door lock receiver. Refer to Remote Control Door Lock Receiver Replacement

Remote Control Door Lock Receiver Assembly

Ignition Lock Key Transmitter Antenna Assembly

Procedure

Unclip antenna lower retainer from wire harness.
Unclip upper antenna from windshield pillar.
Attach mechanics wire to top of antenna. Pull antenna and wire through bottom of IP.
