Connector Identification

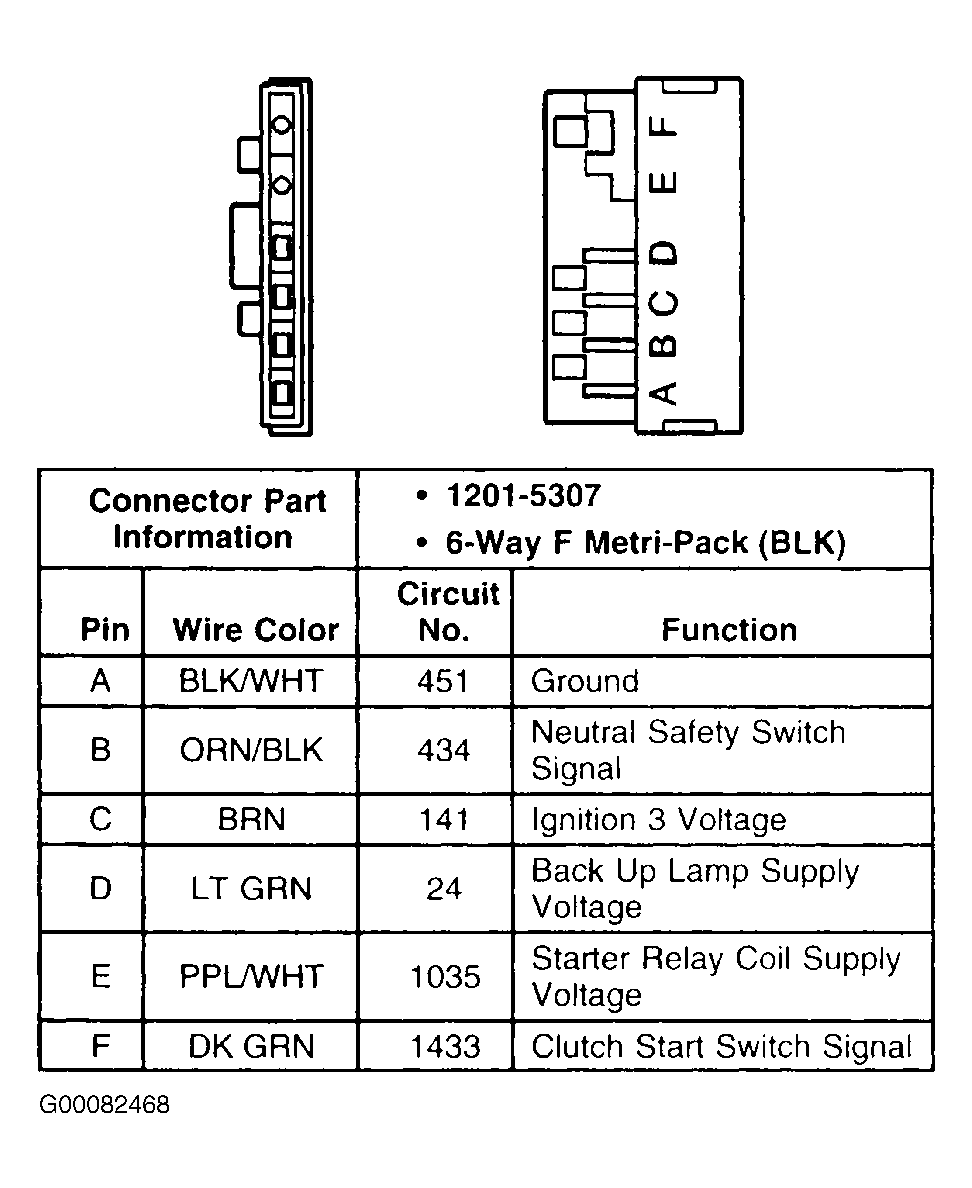

Fig 1: Identifying PNP Switch Harness Connector Terminals
G00082468Courtesy of GENERAL MOTORS CORP.

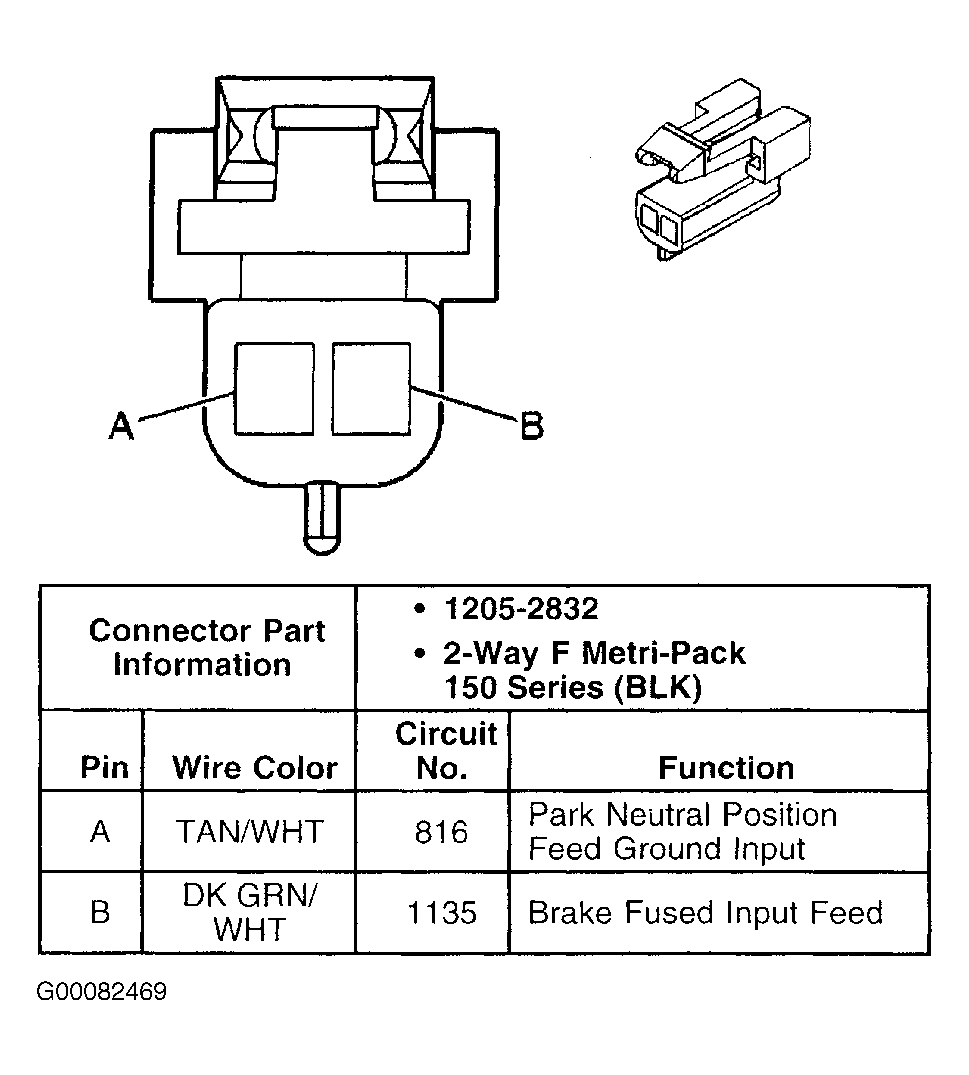

Fig 2: Identifying Shift Lock Solenoid Harness Connector Terminals
G00082469Courtesy of GENERAL MOTORS CORP.

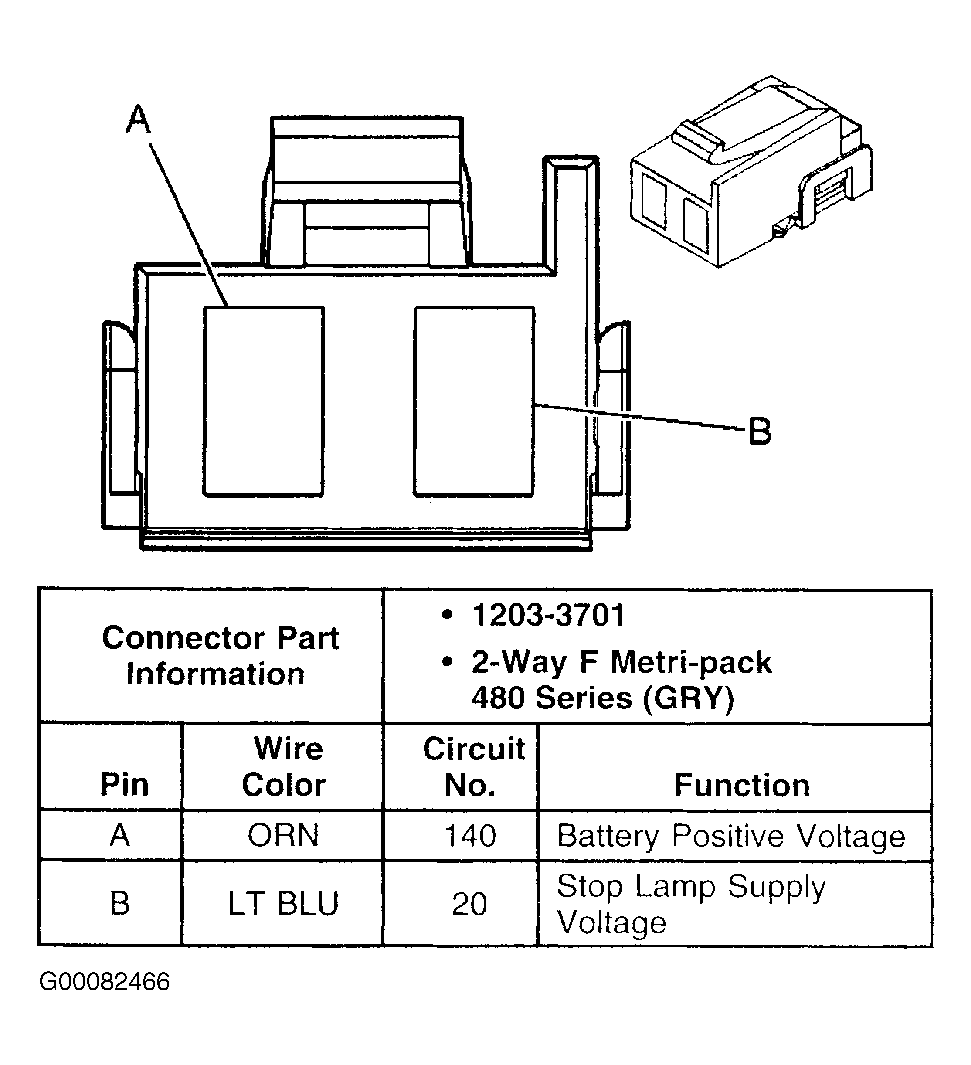

Fig 3: Identifying Stoplamp Switch Harness Connector (C1) Terminals
G00082466Courtesy of GENERAL MOTORS CORP.

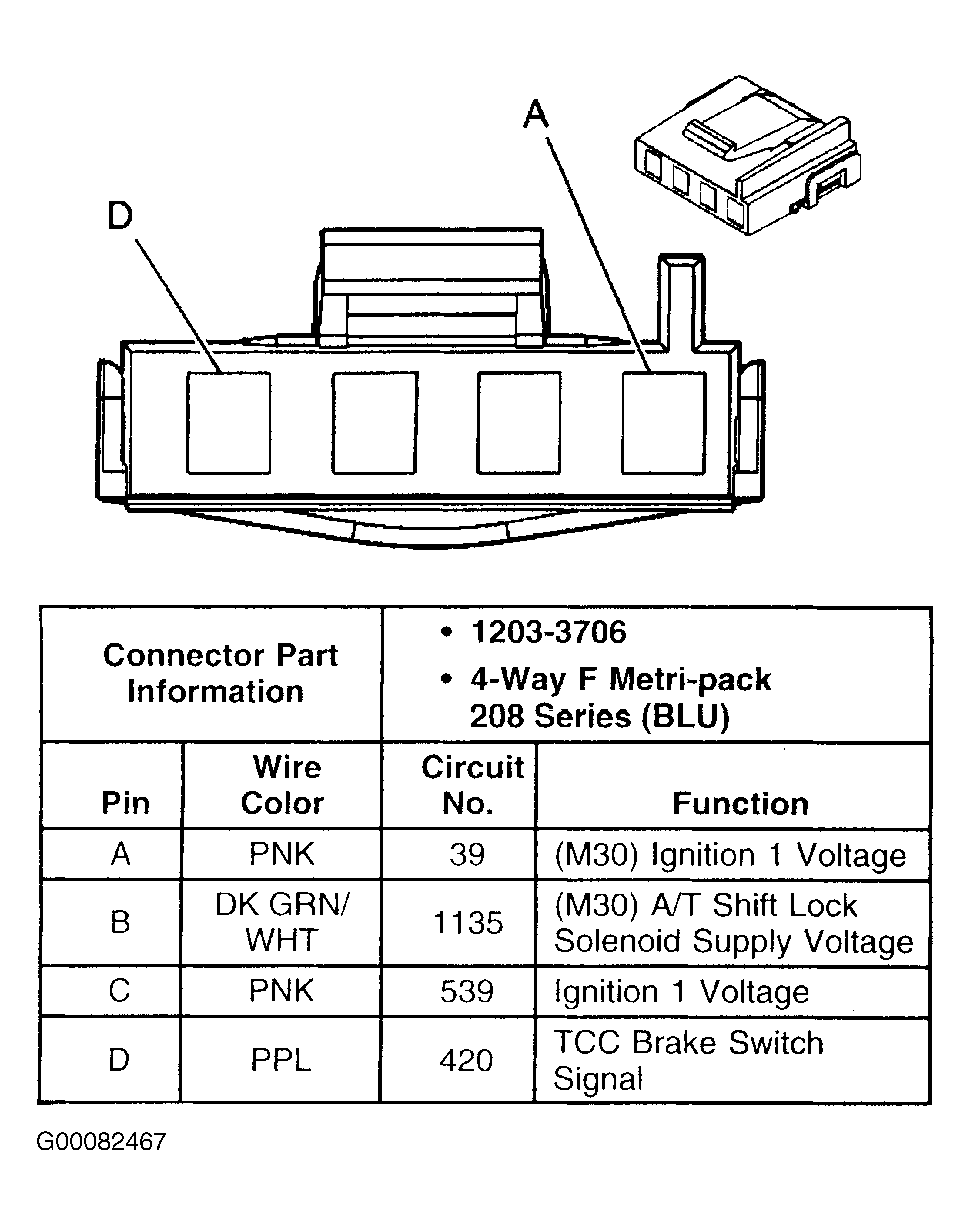

Fig 4: Identifying Stoplamp Switch Harness Connector (C2) Terminals
G00082467Courtesy of GENERAL MOTORS CORP.
