Installation Procedure

Install the rear object alarm detection module.
Install the electrical connector to the module.
NOTE: Refer to FASTENER NOTICE .
Install the bolts that secure the rear object alarm detection module.
Tighten

Tighten the bolts to 10 N.m (89 lb in).
Secure the top of the quarter trim over the bolts.

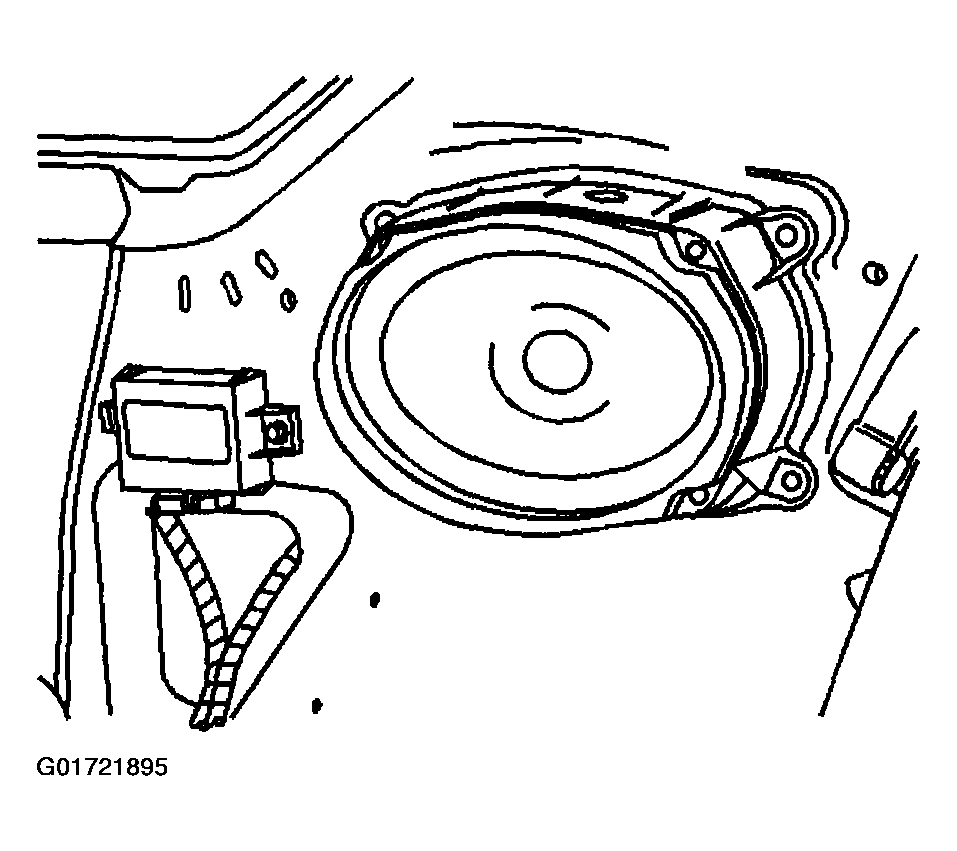

Fig 1: Installing Rear Object Alarm Detection Module
Courtesy of GENERAL MOTORS CORP.
Install the cargo tie-down loops from the rear quarter trim.
Install the rear liftgate sill.
Install the storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - REAR (RENDEZVOUS) in Interior Trim.

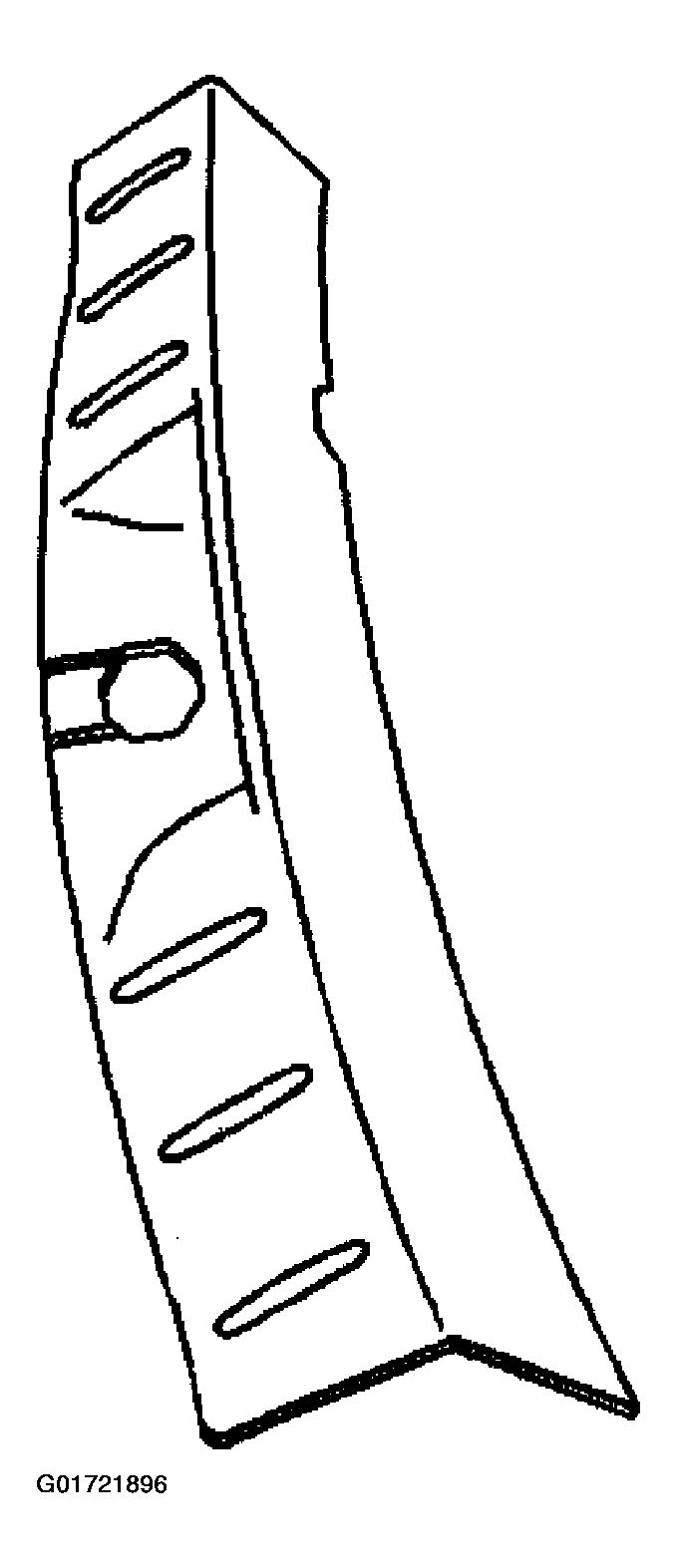

Fig 2: Installing Rear Liftgate Sill
Courtesy of GENERAL MOTORS CORP.
Install the upper trim from the second and third row pillars.

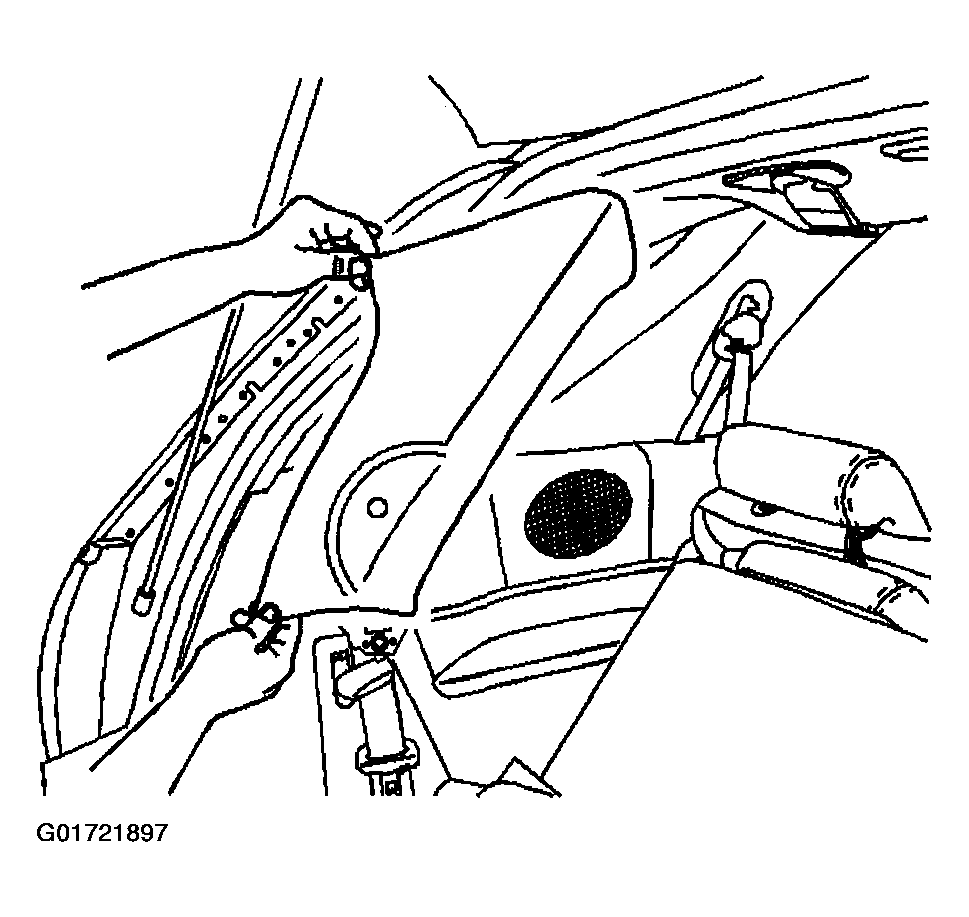

Fig 3: Installing Upper Trim Front Second And Third Row Pillars
Courtesy of GENERAL MOTORS CORP.
Install the guide loop bolts from the second and from the third row seat belts.

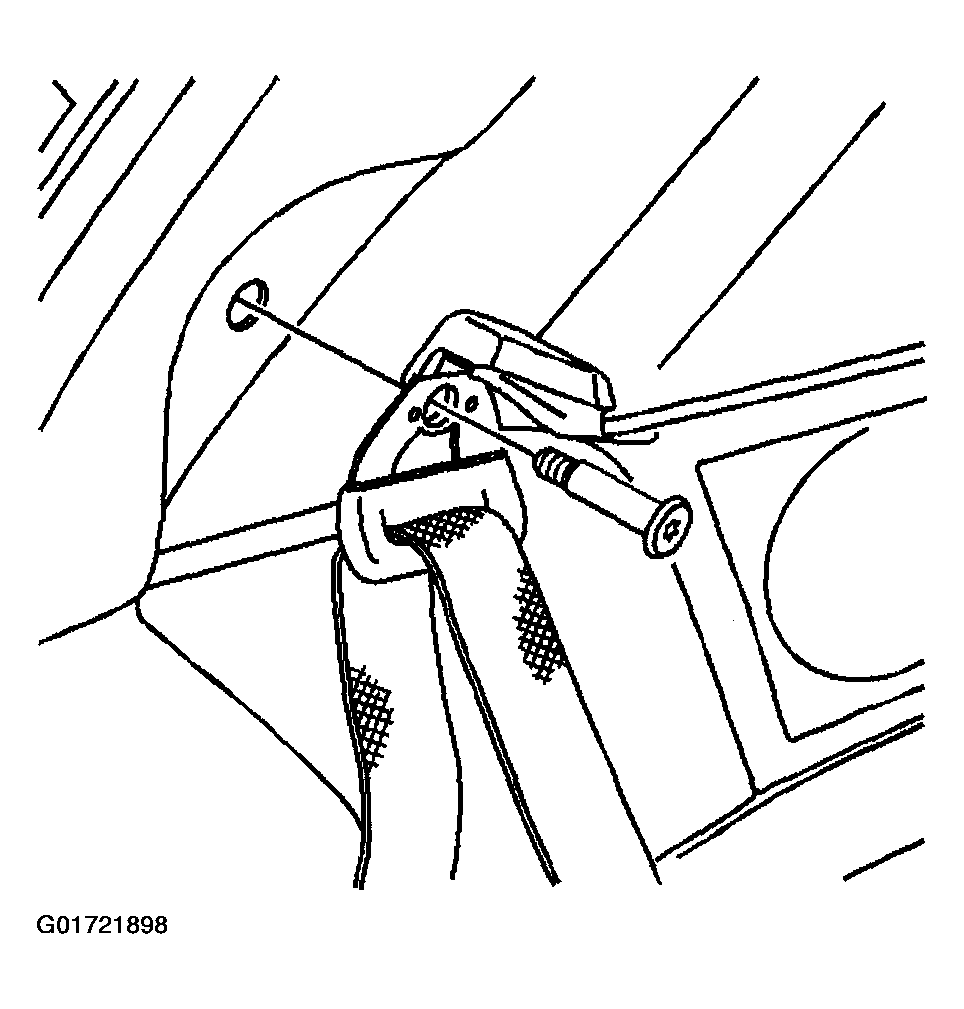

Fig 4: Installing Guide Loop Bolts From Second And Third Row Seat Belts
Courtesy of GENERAL MOTORS CORP.
Close the guide loop covers to the left rear seat belt.

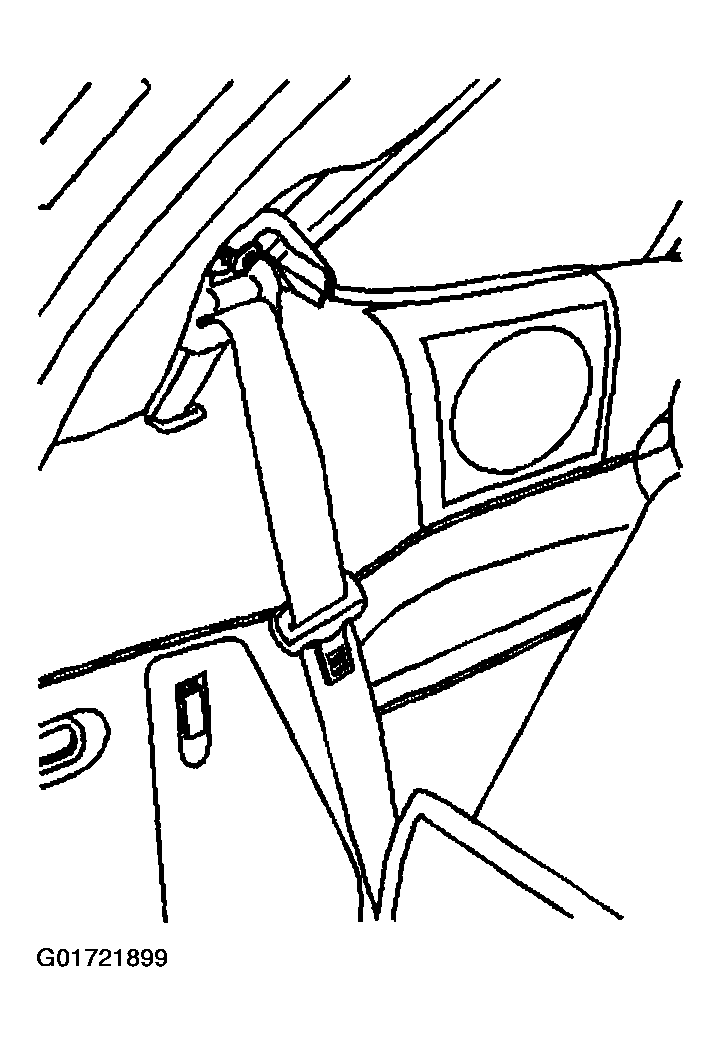

Fig 5: Closing Guide Loop Covers
Courtesy of GENERAL MOTORS CORP.
Return the second and the third row seats to their upright positions.

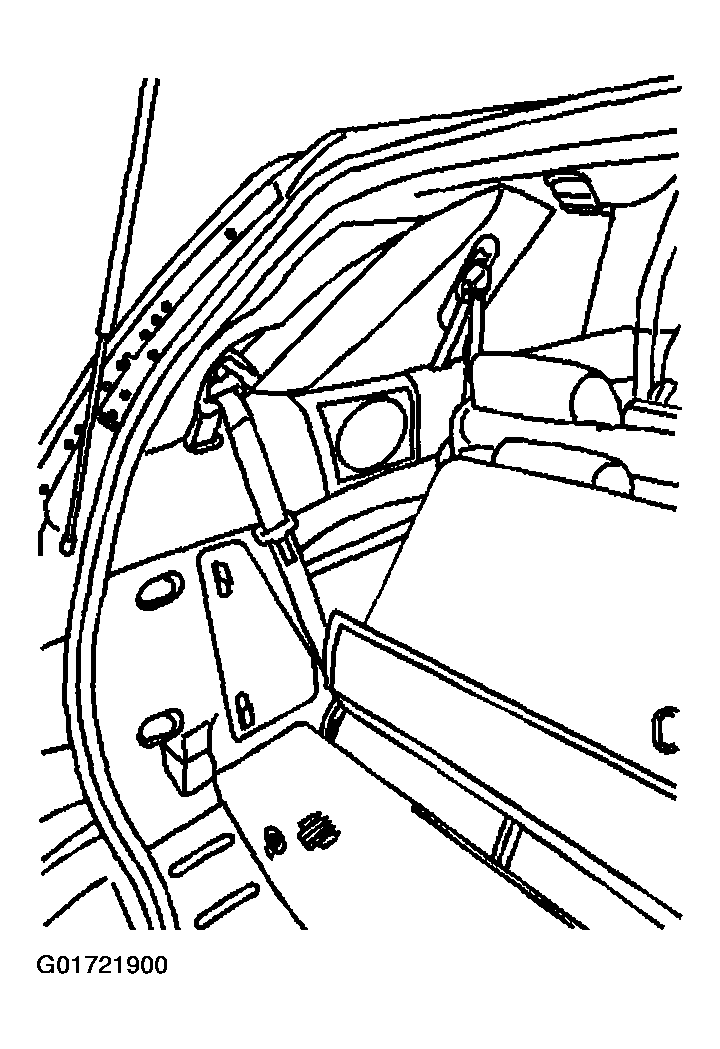

Fig 6: Returning Second And Third Row Seats To Upright Position
