Body Control Module Connector End Views

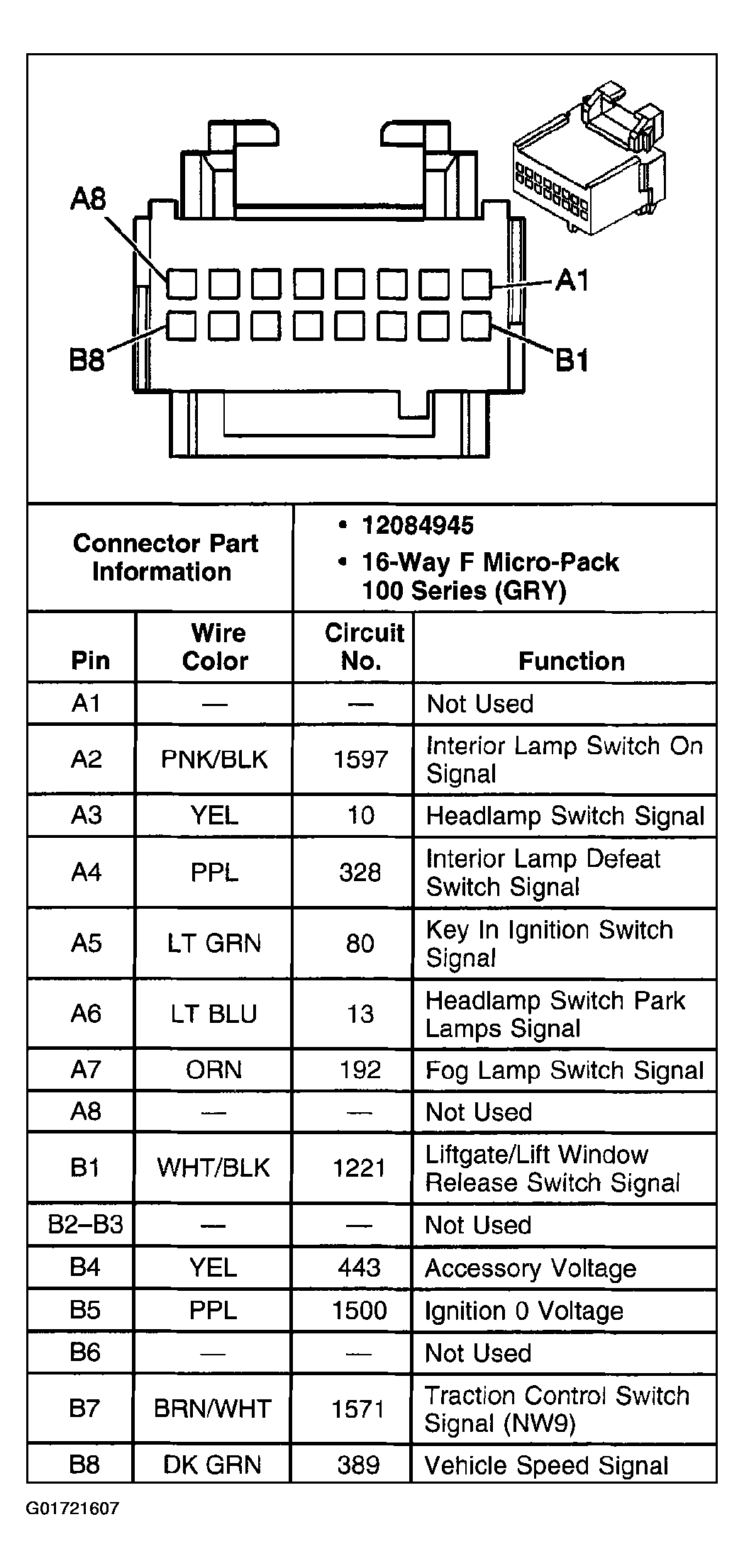

Fig 1: Body Control Module - CO Connector End Views
G01721607Courtesy of GENERAL MOTORS CORP.

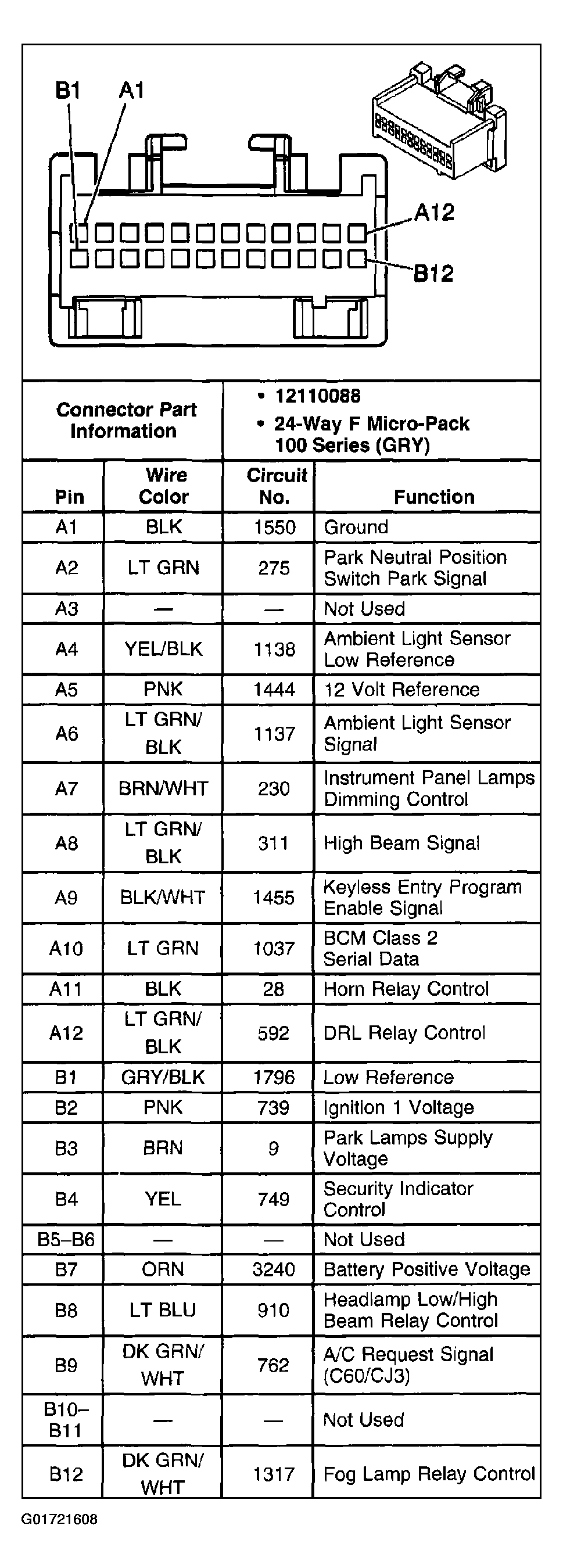

Fig 2: Body Control Module - C1 Connector End Views
G01721608Courtesy of GENERAL MOTORS CORP.

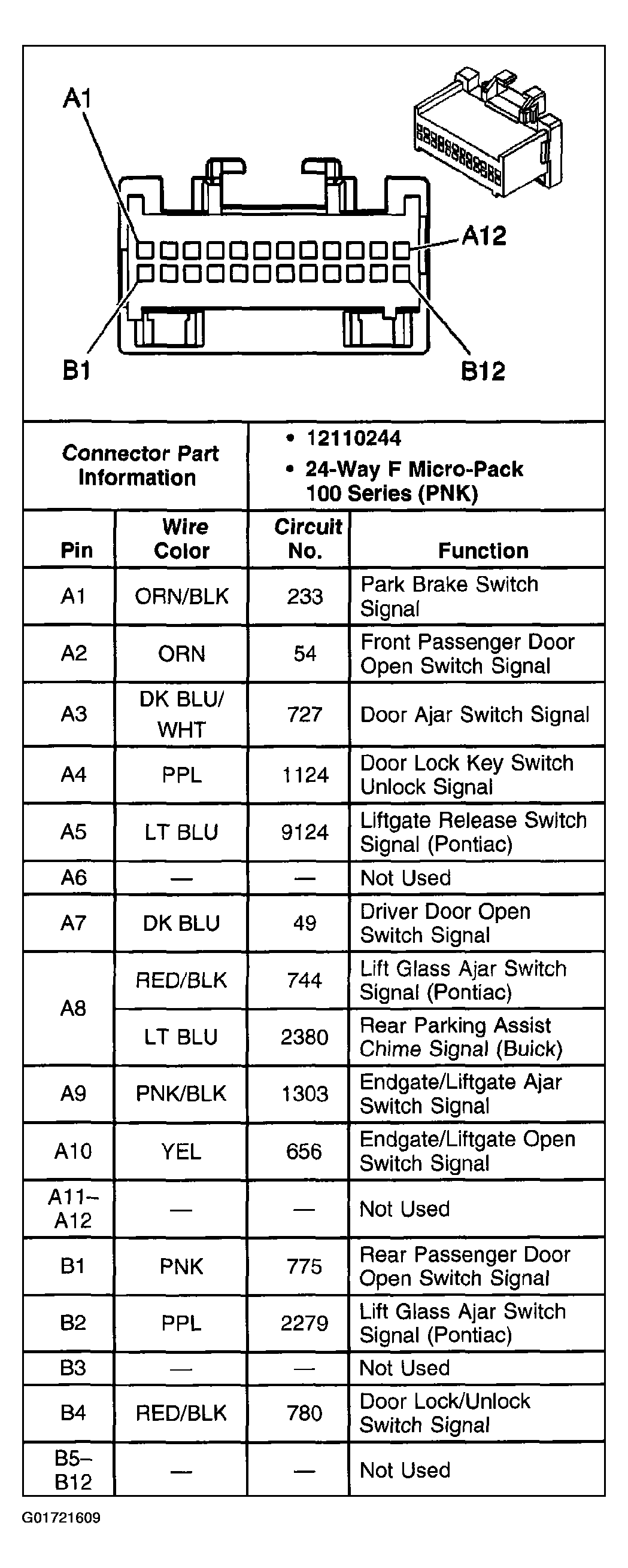

Fig 3: Body Control Module - C2 Connector End Views
G01721609Courtesy of GENERAL MOTORS CORP.

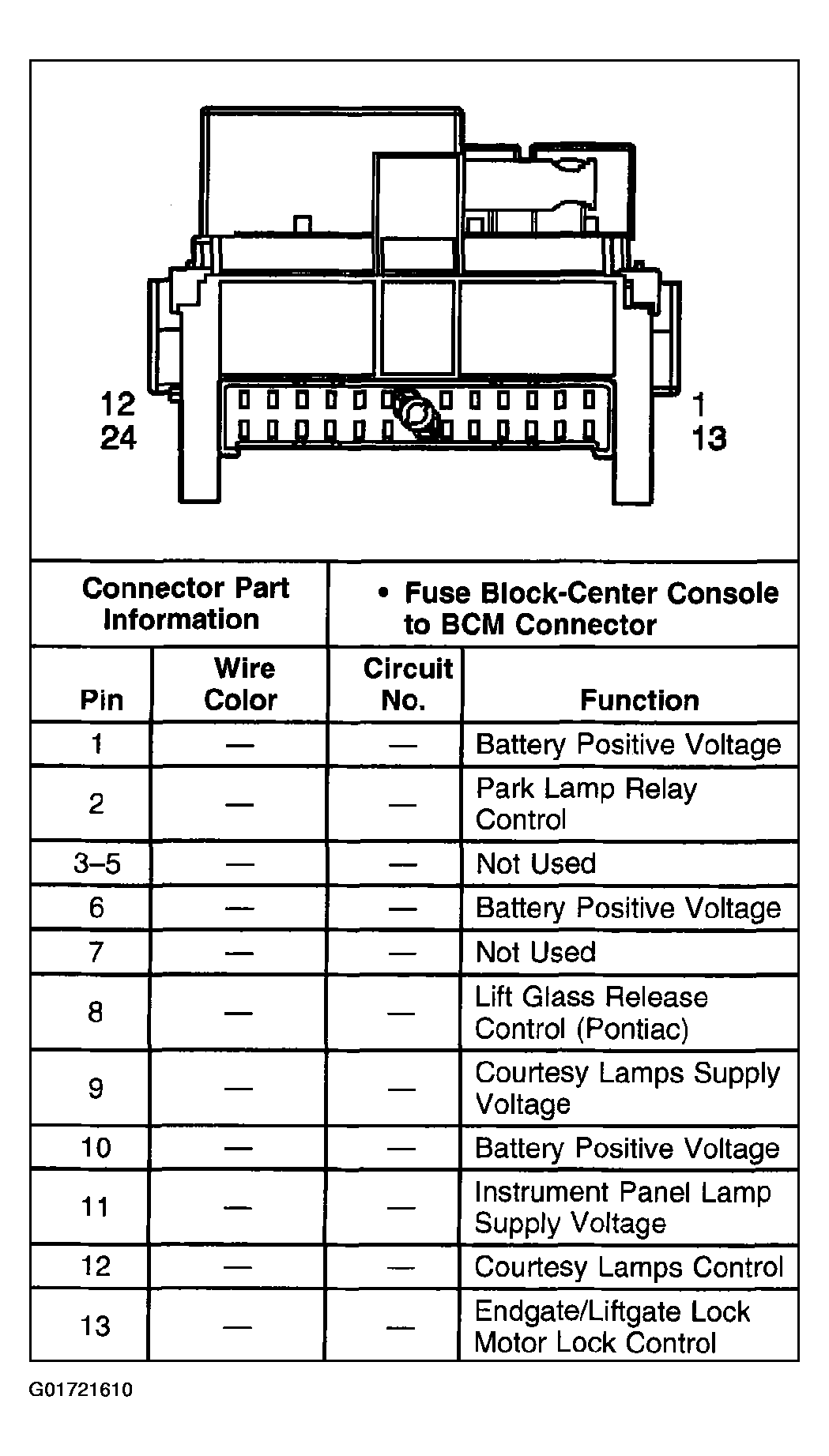

Fig 4: Body Control Module - C3 (1 Of 2) Connector End Views
G01721610Courtesy of GENERAL MOTORS CORP.

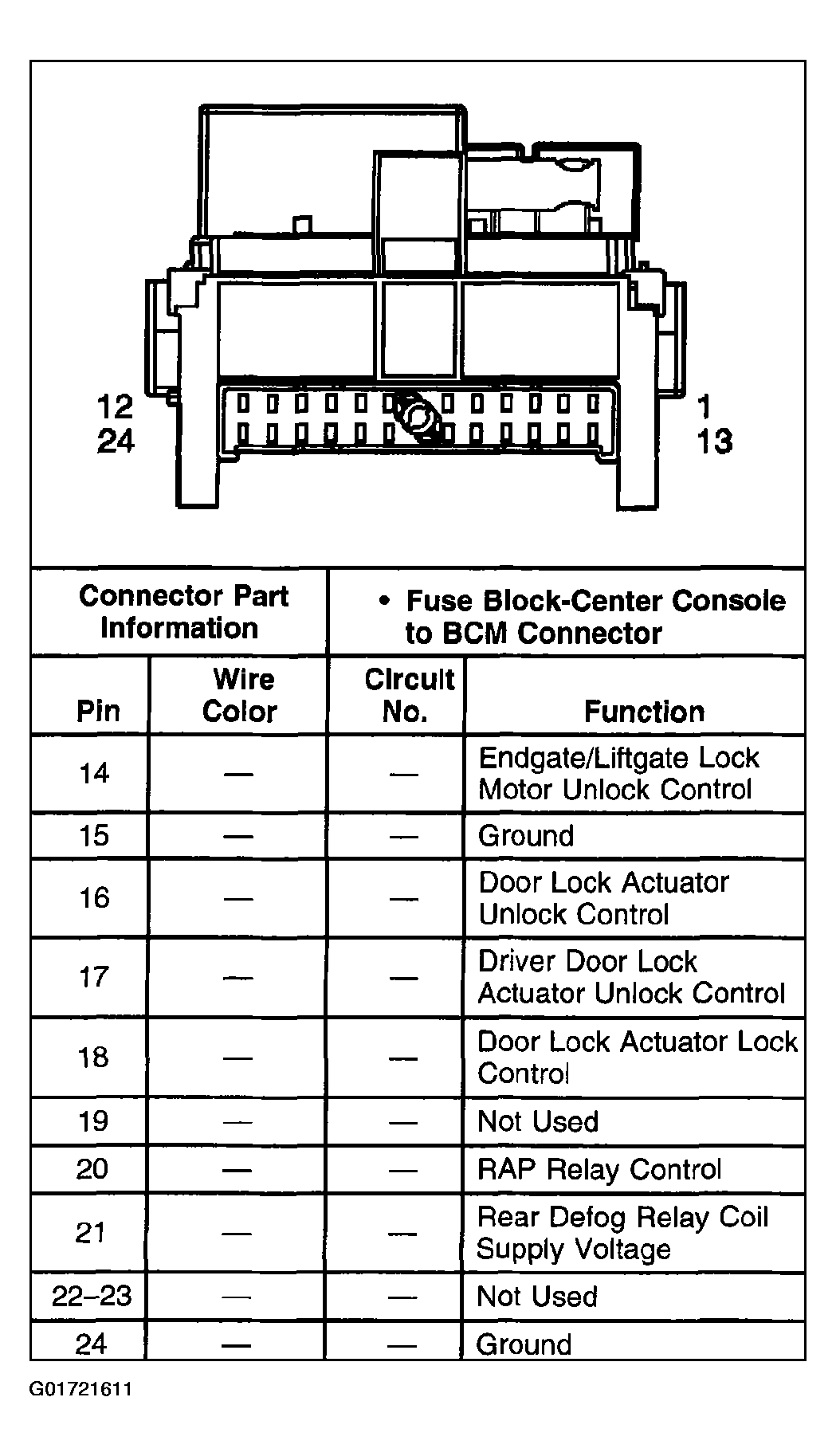

Fig 5: Body Control Module - C3 (2 Of 2) Connector End Views
G01721611Courtesy of GENERAL MOTORS CORP.
