Installation Procedure

  1. Install the catalytic converter hanger.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the catalytic converter hanger bolts.

    Tighten

    Tighten the catalytic converter hanger bolts to 35 N.m (26 lb ft).

  3. Install the catalytic converter hanger insulators to the catalytic converter.
  4. Lower the vehicle.

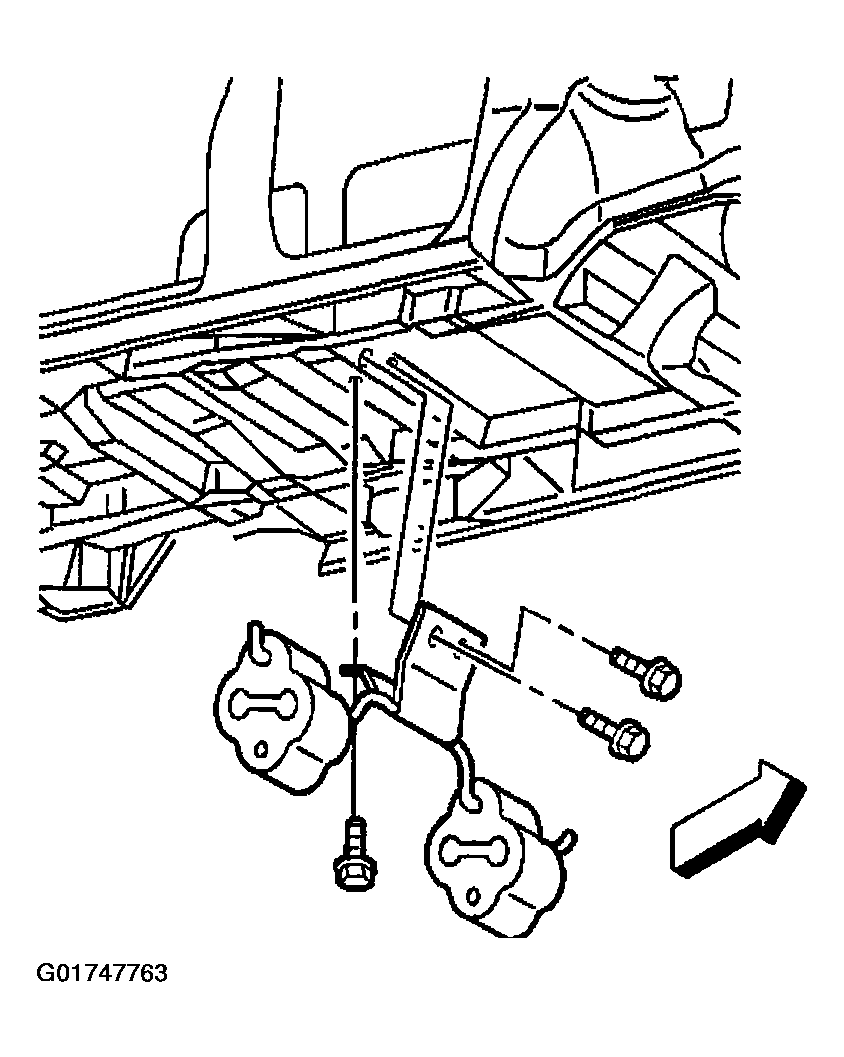

    Fig 1: Installing Catalytic Converter Hanger & Bolts
    G01747763Courtesy of GENERAL MOTORS CORP.
