Test Description

The number below refers to the step number on the diagnostic table.

1. 17.  An illuminated test lamp at step 17 reveals a short to voltage in the serial data circuit.

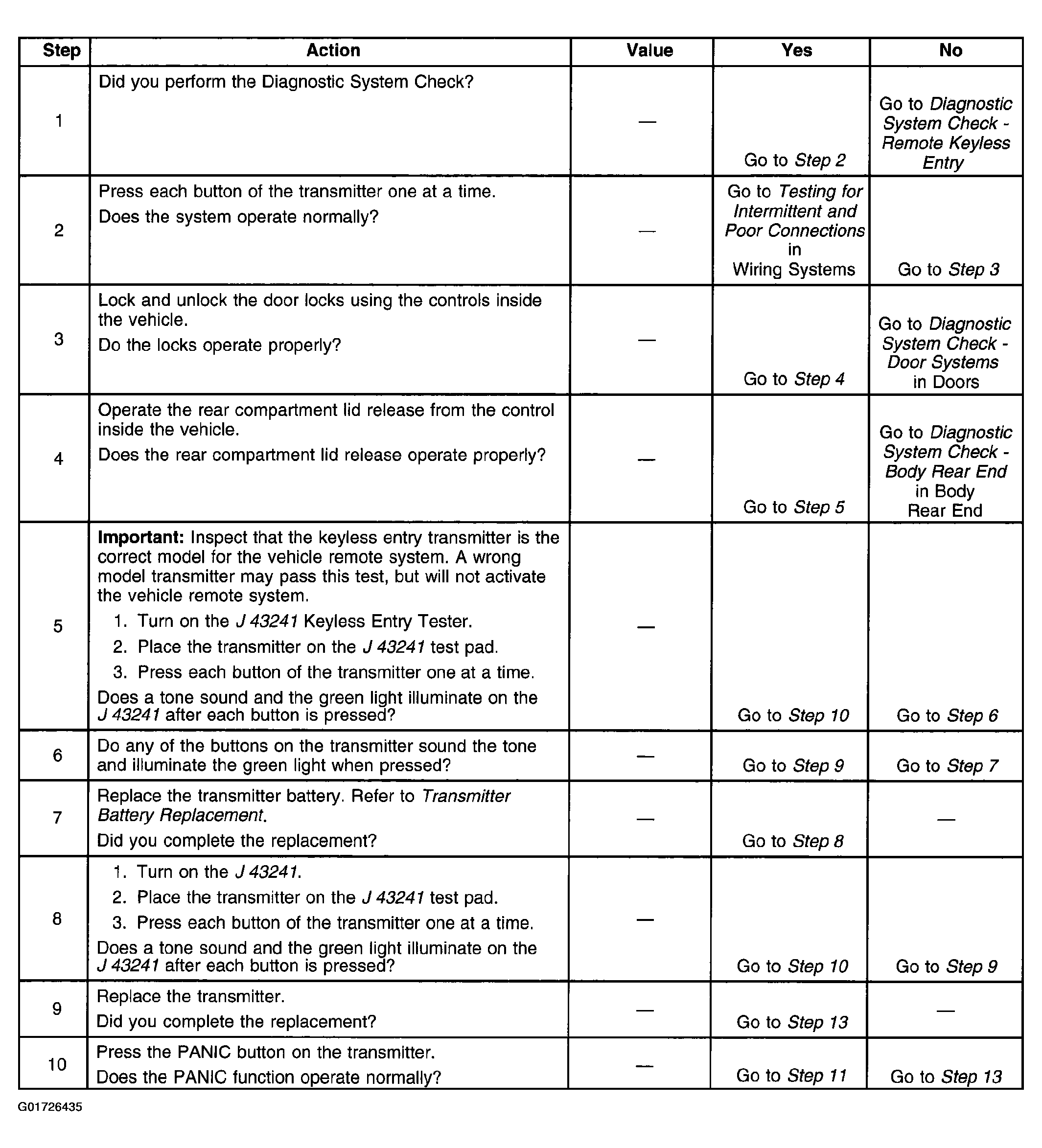

Fig 1: Keyless Entry System Inoperative (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

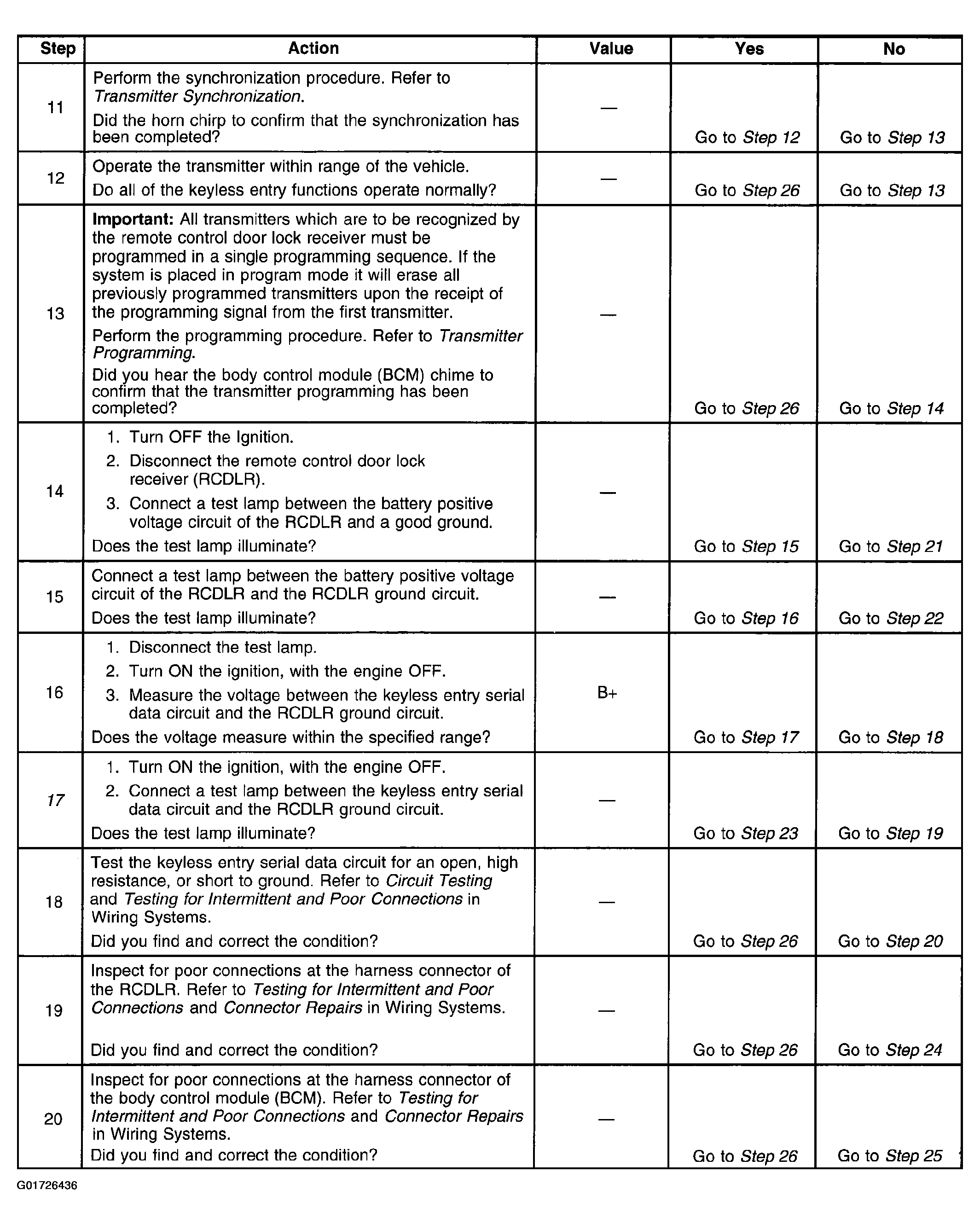

Fig 2: Keyless Entry System Inoperative (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

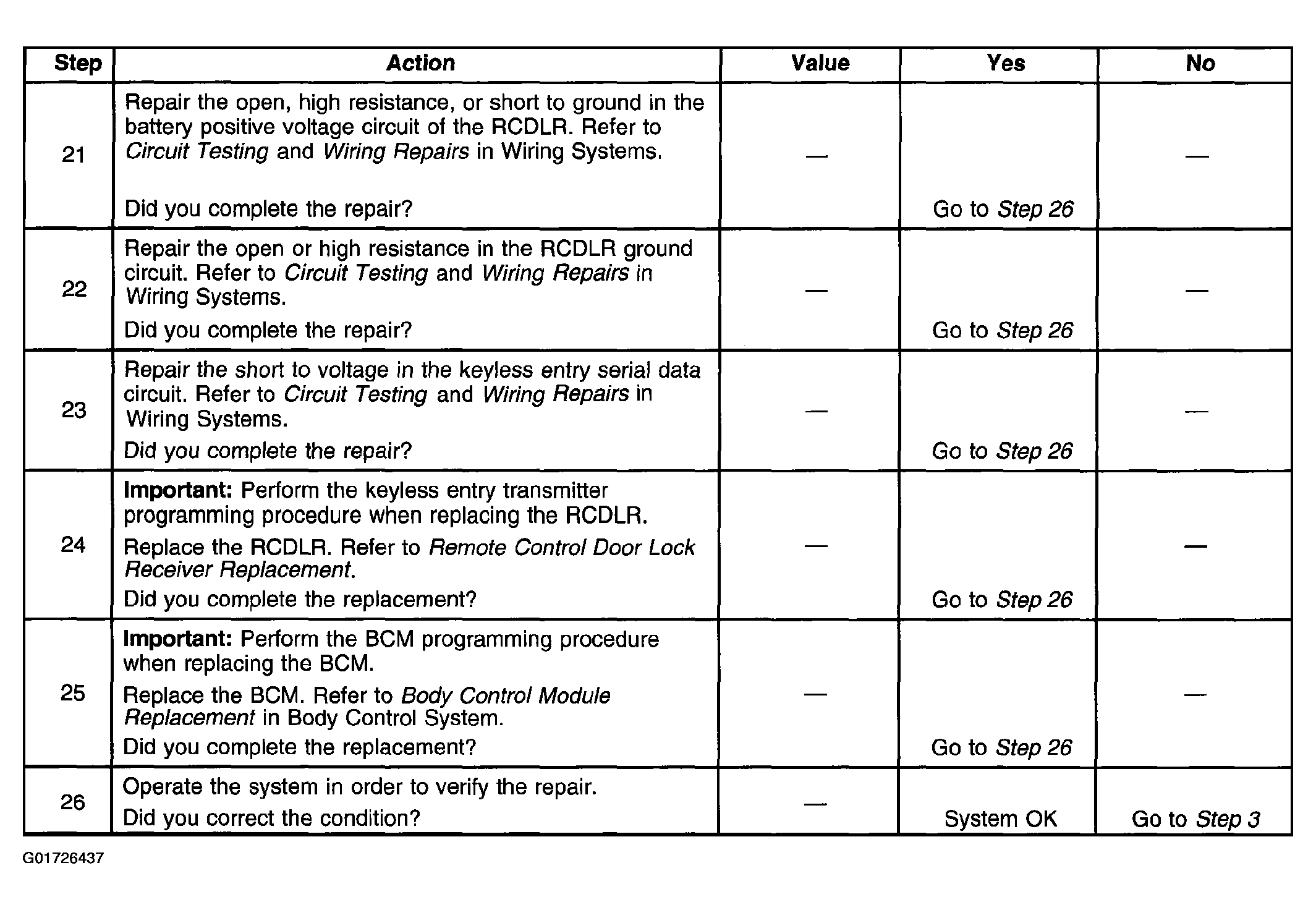

Fig 3: Keyless Entry System Inoperative (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
