Power Windows Inoperative - Express Down Function

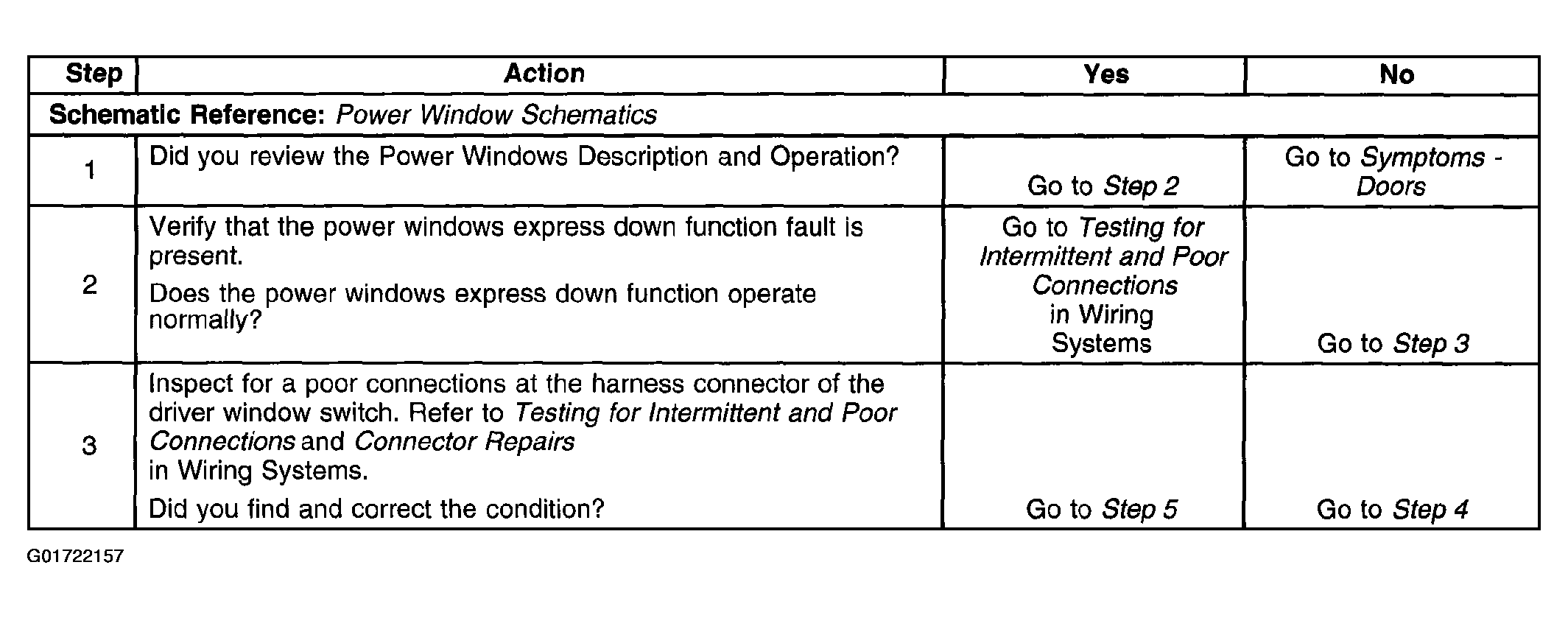

Fig 1: Power Windows Inoperative - Express Down Function (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

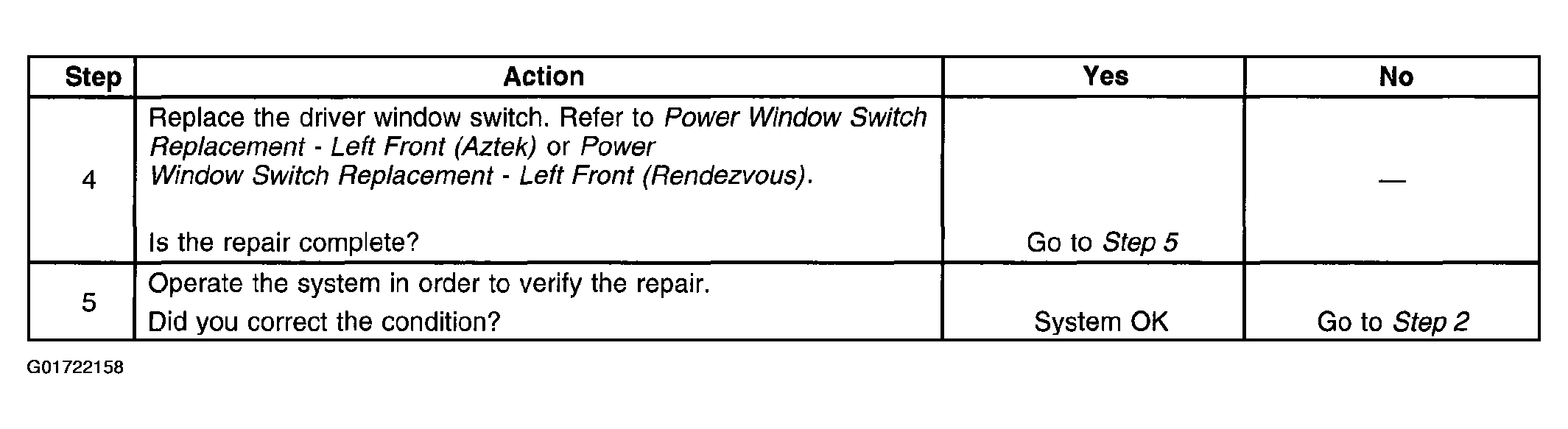

Fig 2: Power Windows Inoperative - Express Down Function (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
