Scan Tool Output Controls

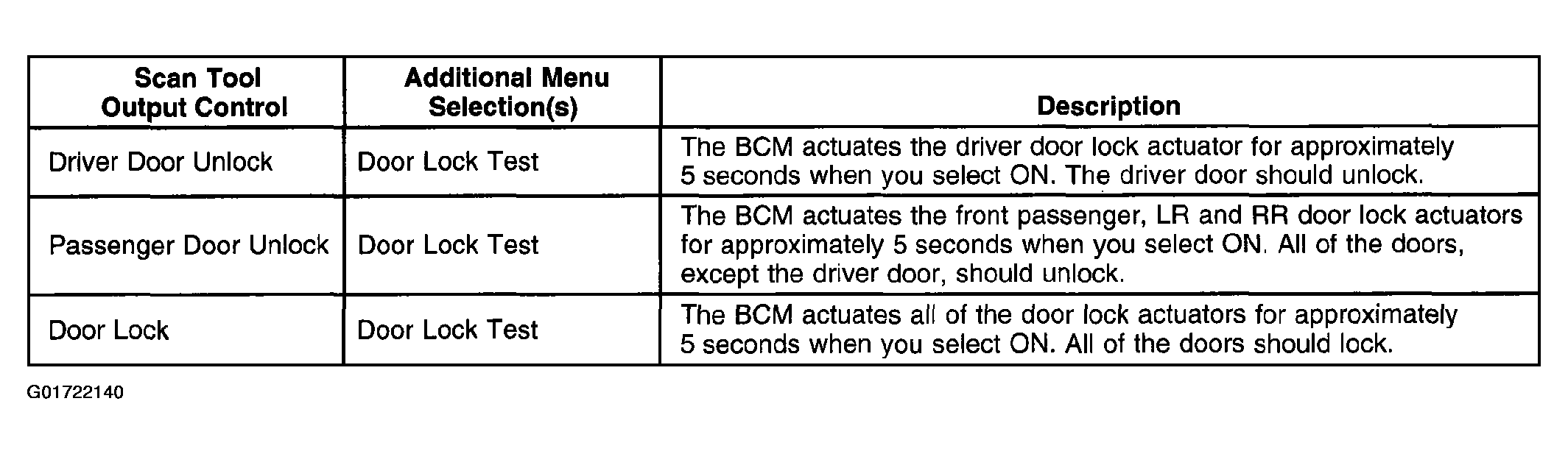

Fig 1: Body Control Module
G01722140Courtesy of GENERAL MOTORS CORP.

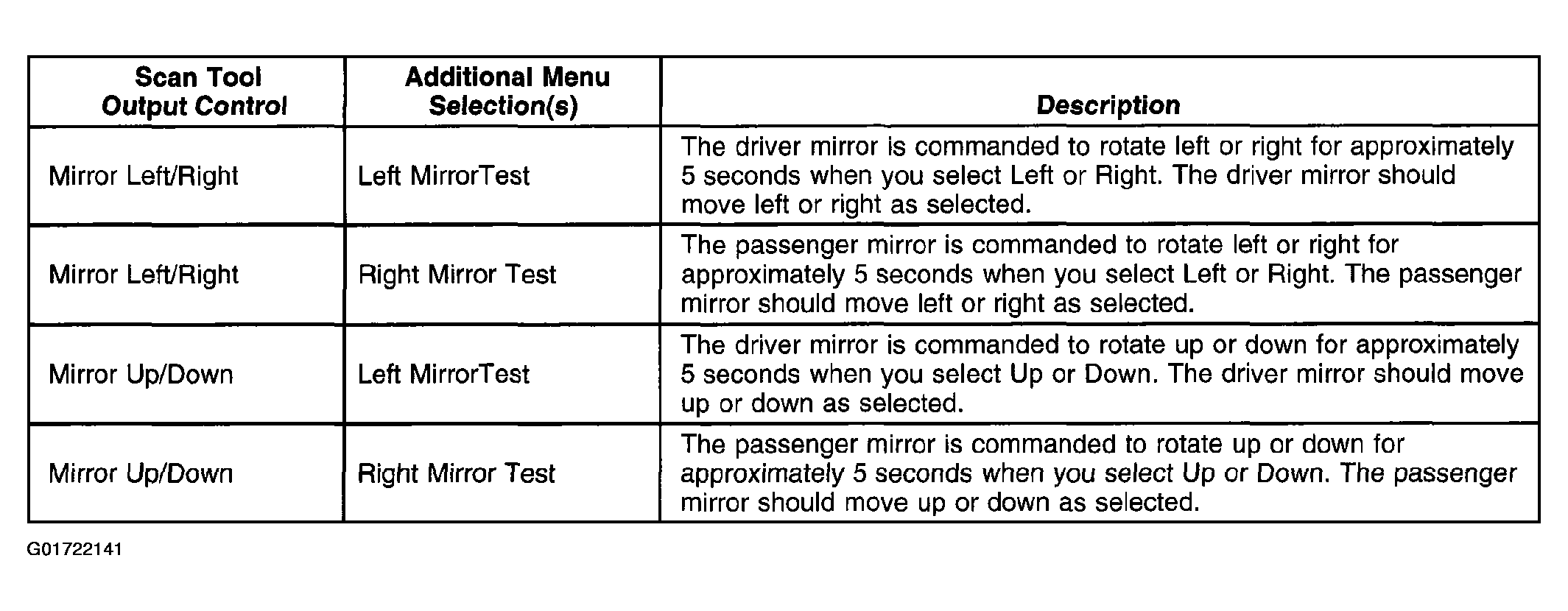

Fig 2: Memory Seat Module
G01722141Courtesy of GENERAL MOTORS CORP.
