Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Aztek)  or Trim Panel Replacement - Side Front Door (Rendezvous) .
  2. Remove the mirror face. Refer to Mirror Face Replacement .
  3. Remove the mirror motor screws.

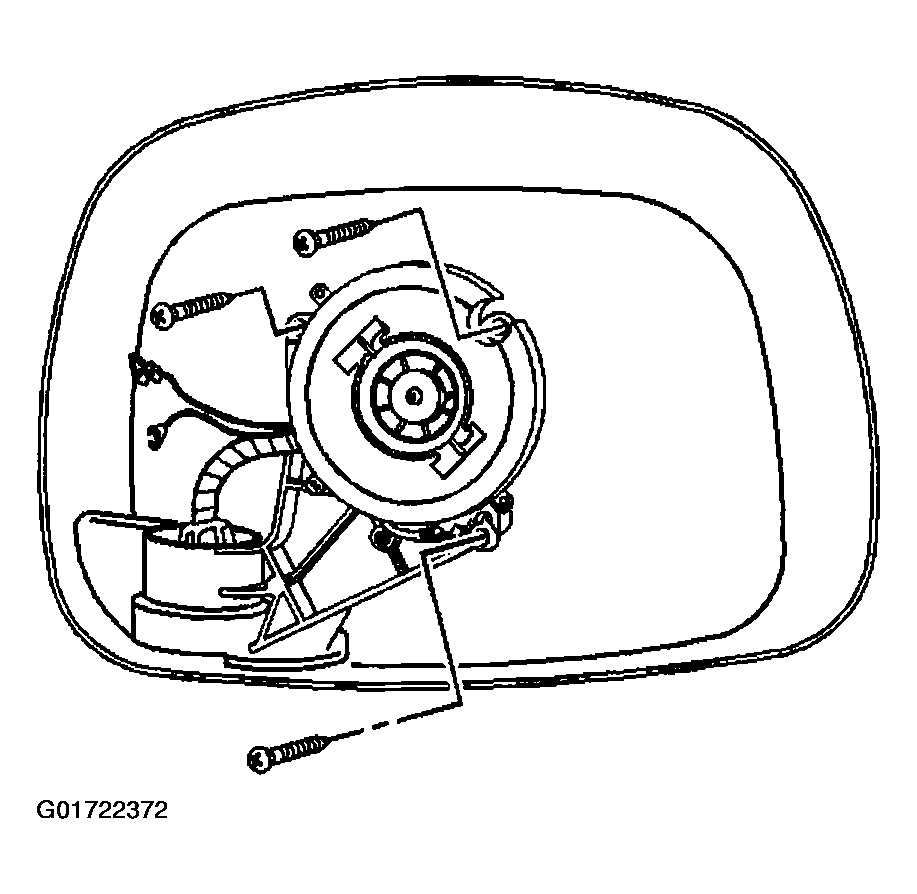

    Fig 1: Removing Mirror Face And Motor Screws
    G01722372Courtesy of GENERAL MOTORS CORP.
  4. Pull the mirror motor out from the mirror housing to gain access to the mirror motor electrical connectors.

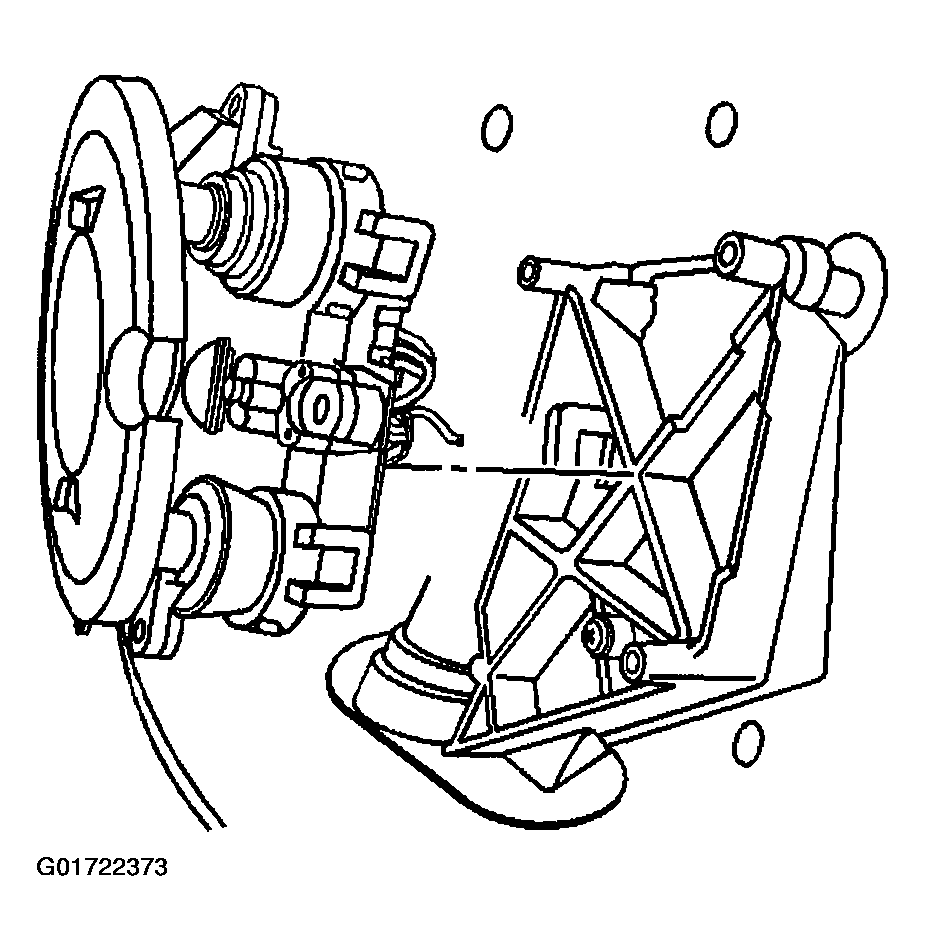

    Fig 2: Pulling Mirror Motor From Mirror Housing
    G01722373Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the mirror motor electrical connectors.
  6. Remove the mirror motor from the mirror housing.

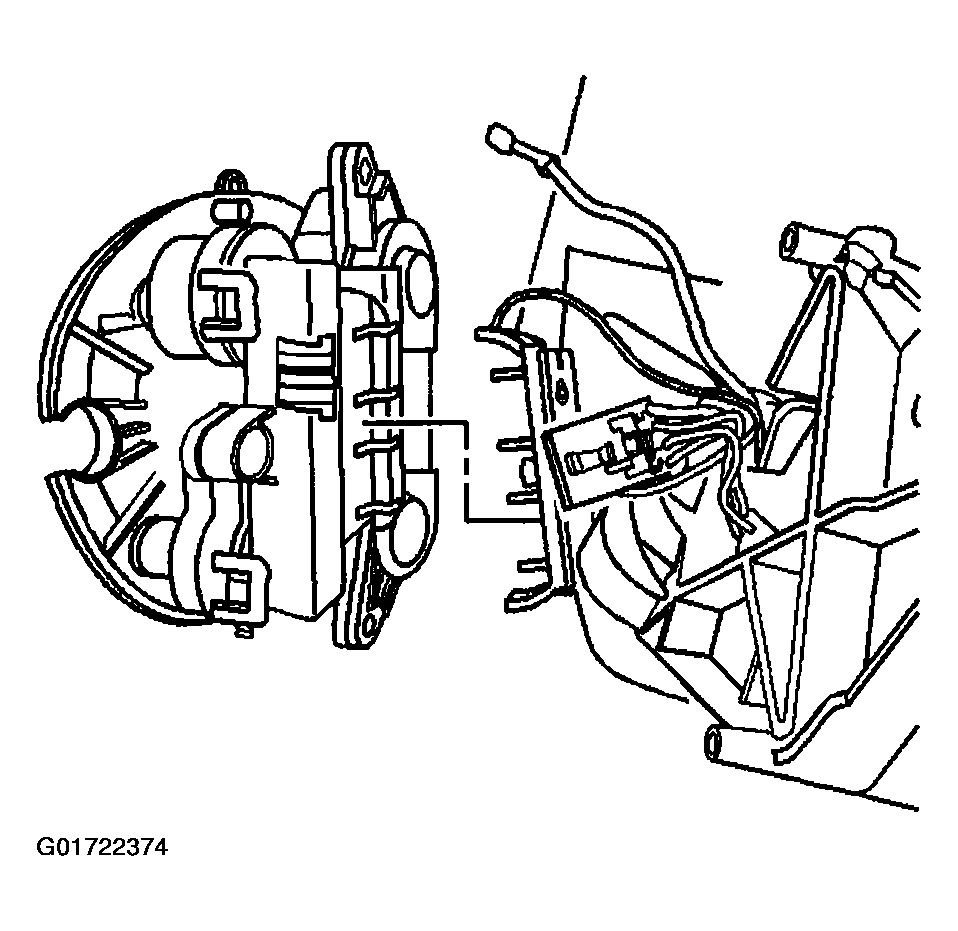

    Fig 3: Removing Mirror Motor
    G01722374Courtesy of GENERAL MOTORS CORP.
