Removal Procedure

  1. Remove the front door window switch plate from the front door trim panel using a small flat-bladed tool at the front of the power window control plate.
  2. Disconnect the electrical connector from the front door window control switch.
  3. Remove the front door window control switch plate from the front door trim panel.
  4. Remove the front door window control switch (1) from the front door window switch plate using a small flat-bladed tool.

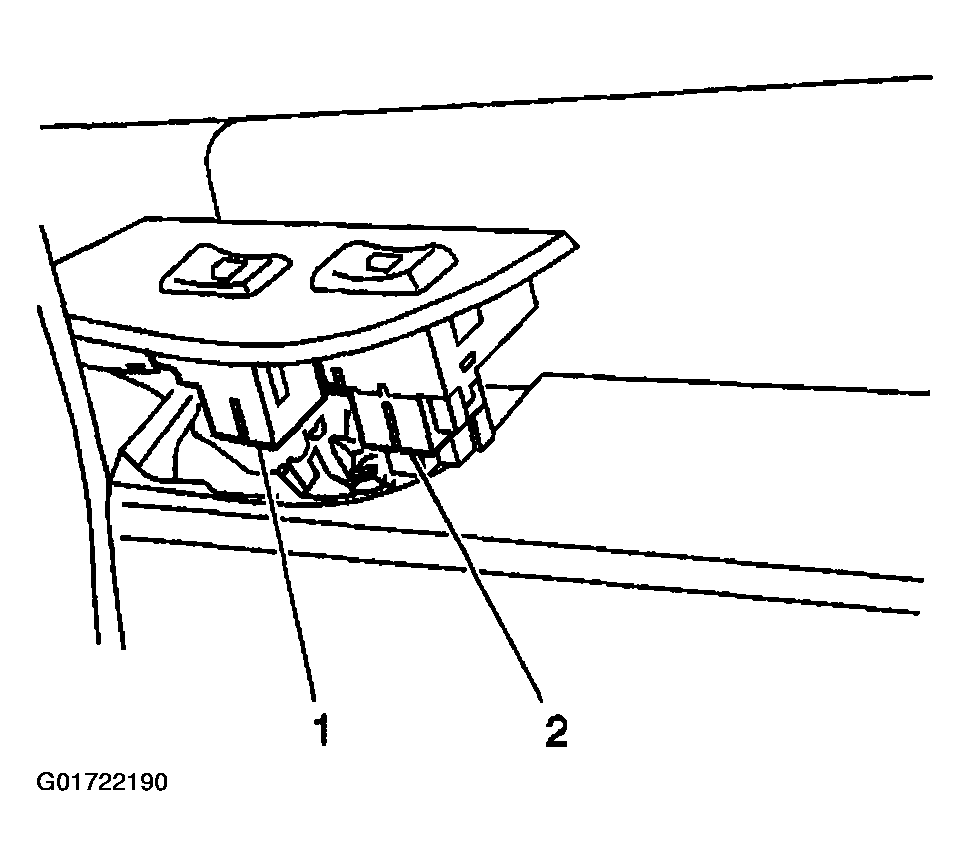

    Fig 1: Removing Front Door Window Control Switch
    G01722190Courtesy of GENERAL MOTORS CORP.
