Installation Procedure

  1. Position the roof-rail auxiliary weatherstrip push-in retainer to the first hole in the upper rear corner.
  2. Press in the push-in retainer until fully seated.
  3. Install roof-rail auxiliary weatherstrip onto the flange.

    Bending back the roof-rail auxiliary weatherstrip onto itself to open the carrier while pushing forward will ease the installation effort.

  4. Install the remaining push-in retainers to the rear pillar.

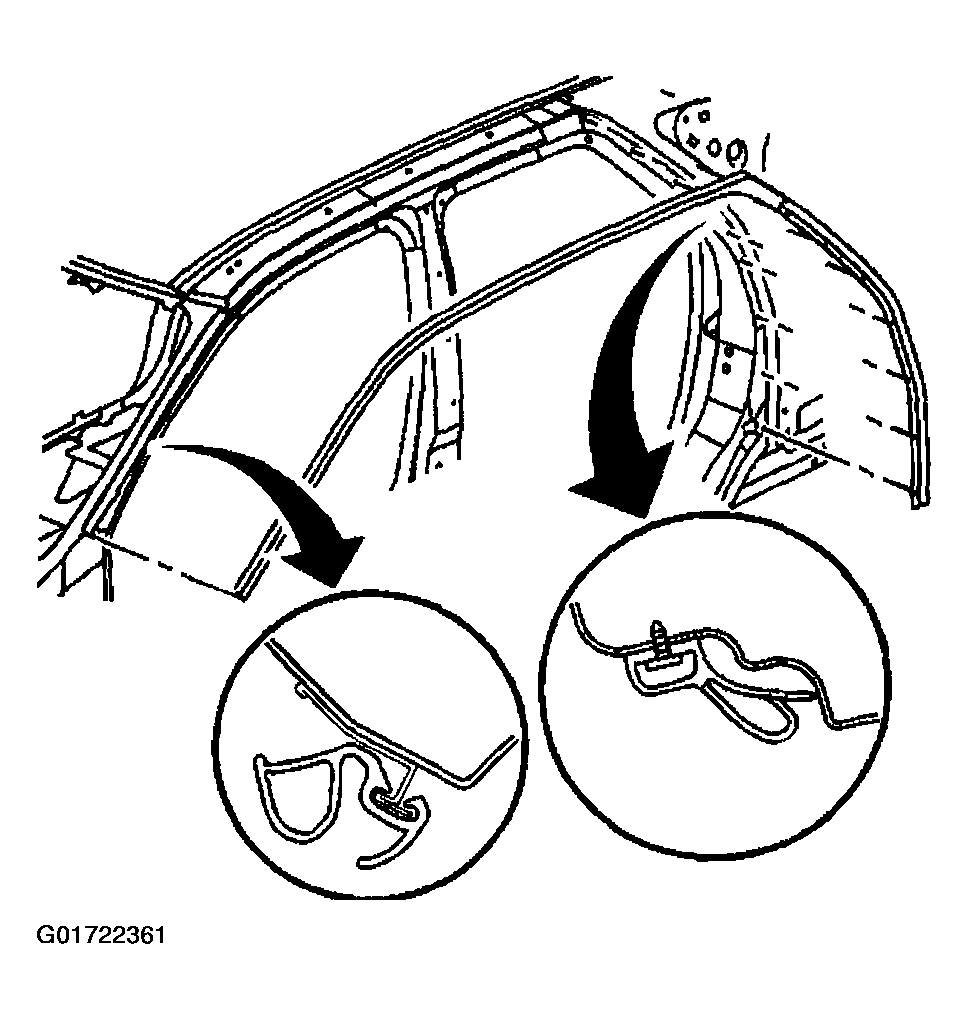

    Fig 1: Installing Roof-Rail Auxiliary Weatherstrip Push-In Retainers Using J 38778
    G01722361Courtesy of GENERAL MOTORS CORP.
  5. Install the center pillar auxiliary weatherstrip pressing in the push-in retainers until fully seated.

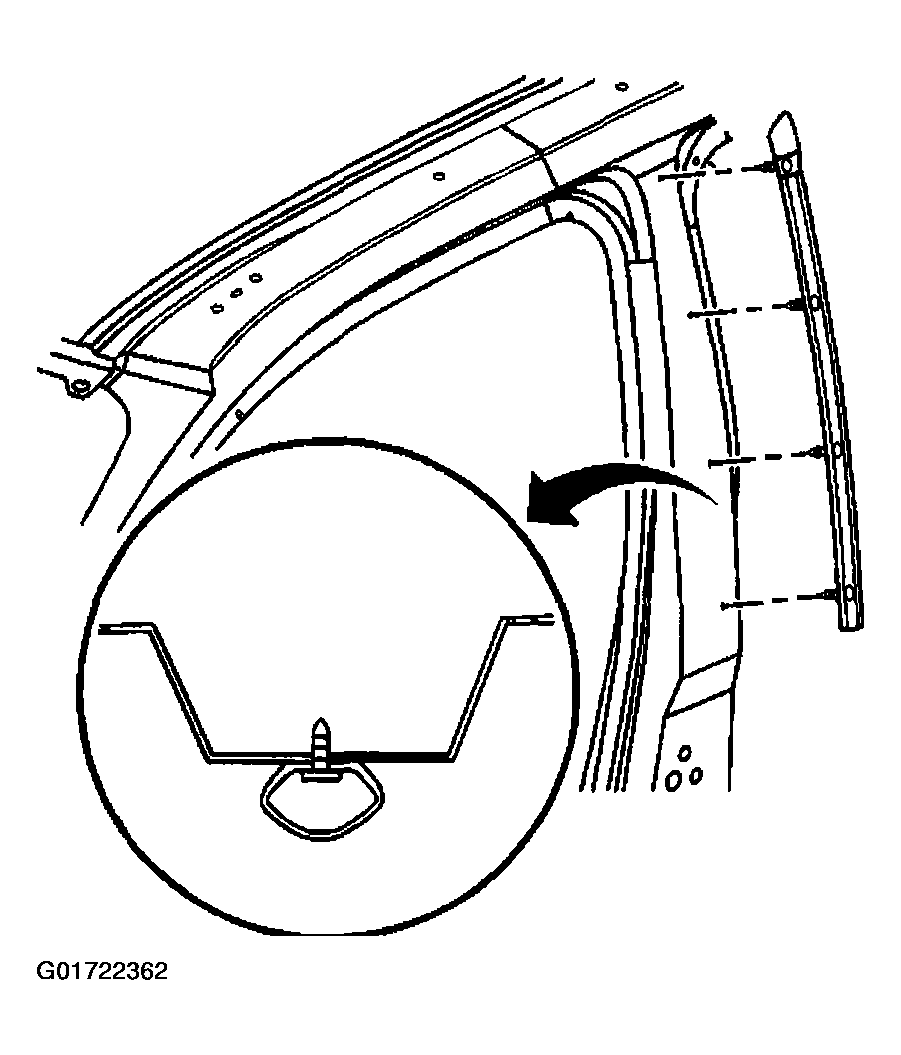

    Fig 2: Installing Center Pillar Auxiliary Weatherstrip Using J 38778
    G01722362Courtesy of GENERAL MOTORS CORP.
  6. Align the C-pillar auxiliary weatherstrip top push-in retainers to the top hole in the rear pillar.
  7. Install the C-pillar auxiliary weatherstrip working downward pressing in the remainder of the push-in retainers until fully seated.
  8. Close the rear door.

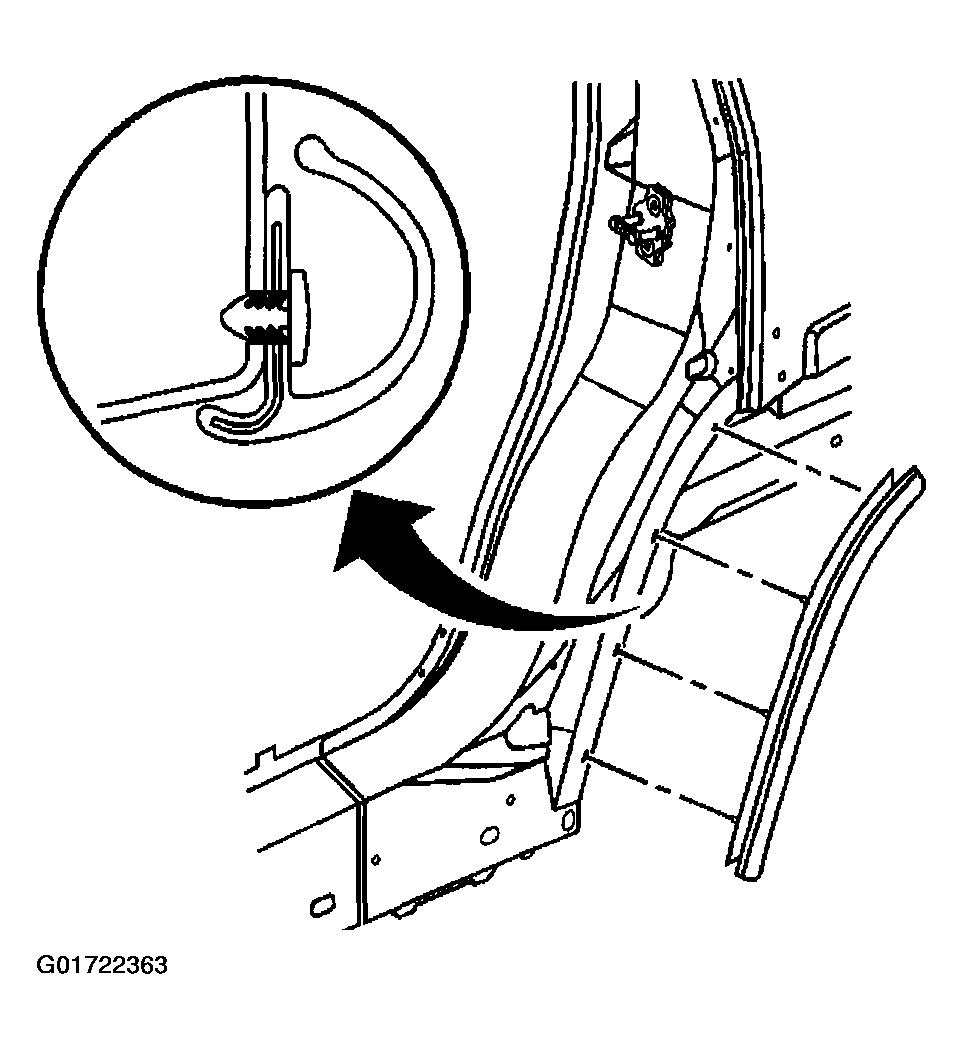

    Fig 3: Removing Rear Pillar Auxiliary Weatherstrip Using J 38778
    G01722363Courtesy of GENERAL MOTORS CORP.
