Outside Mirror Schematics

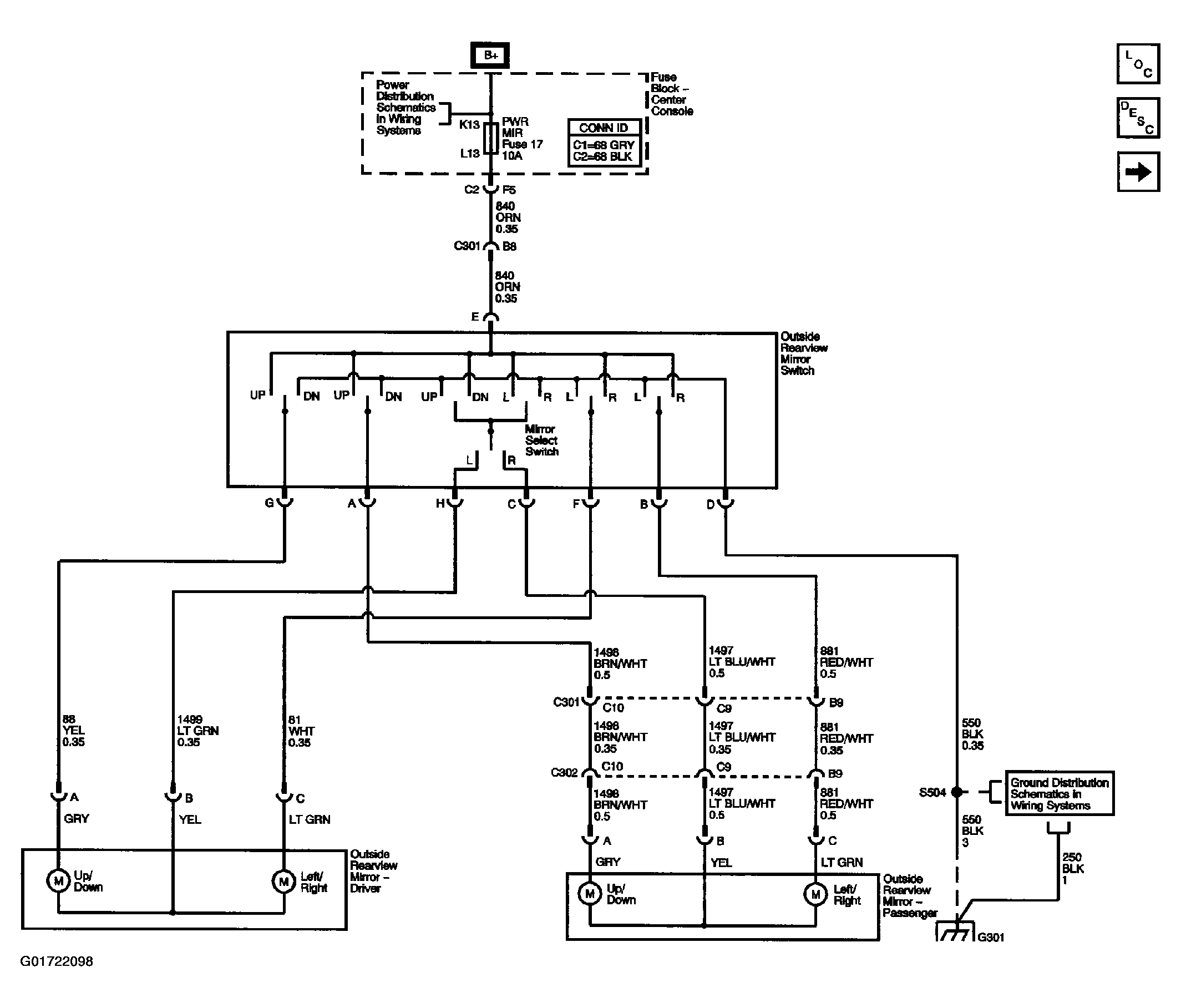

Fig 1: Outside Mirror Schematics (Base Mirrors)

Courtesy of GENERAL MOTORS CORP.

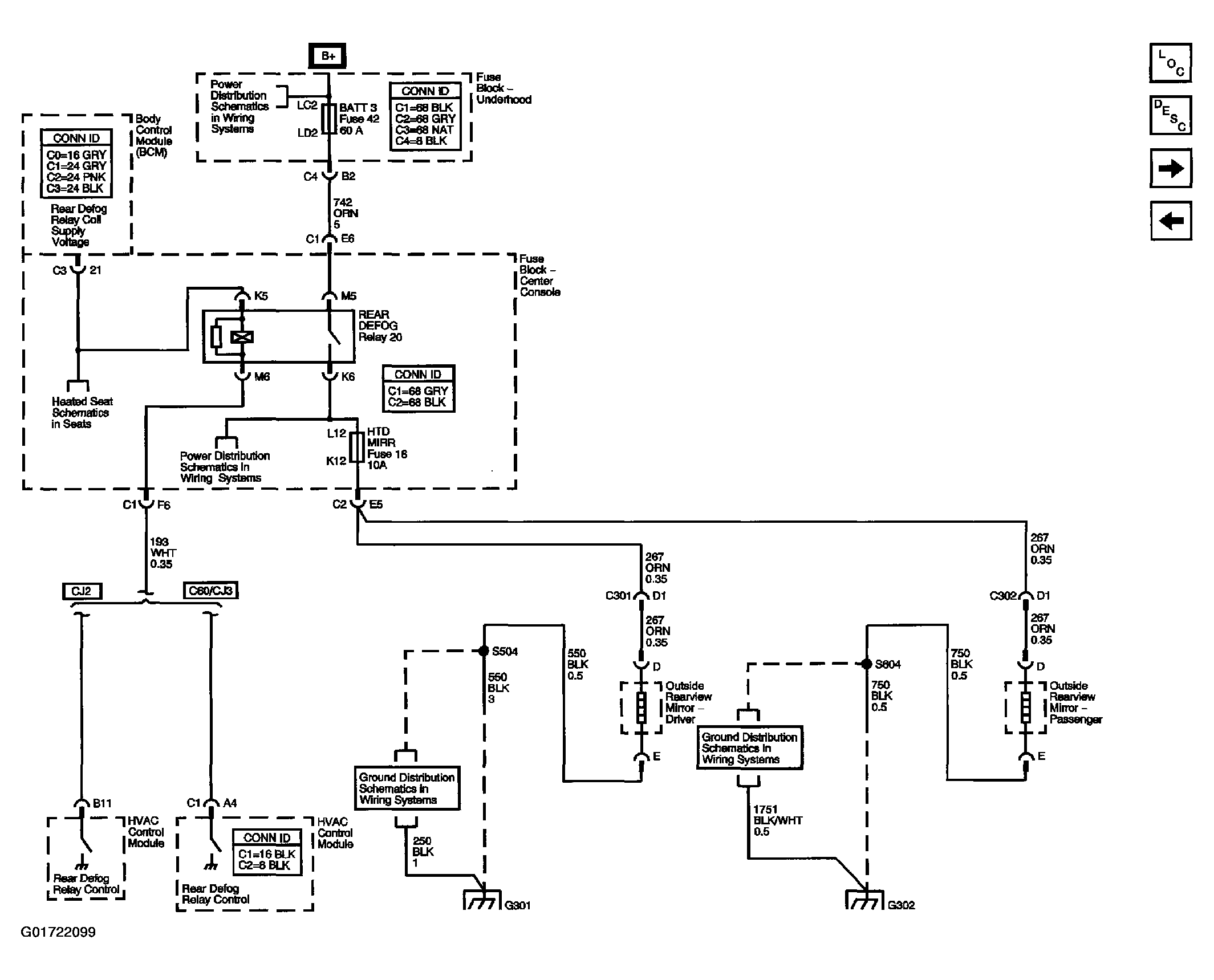

Fig 2: Outside Mirror Schematics (Heated Mirrors)

Courtesy of GENERAL MOTORS CORP.

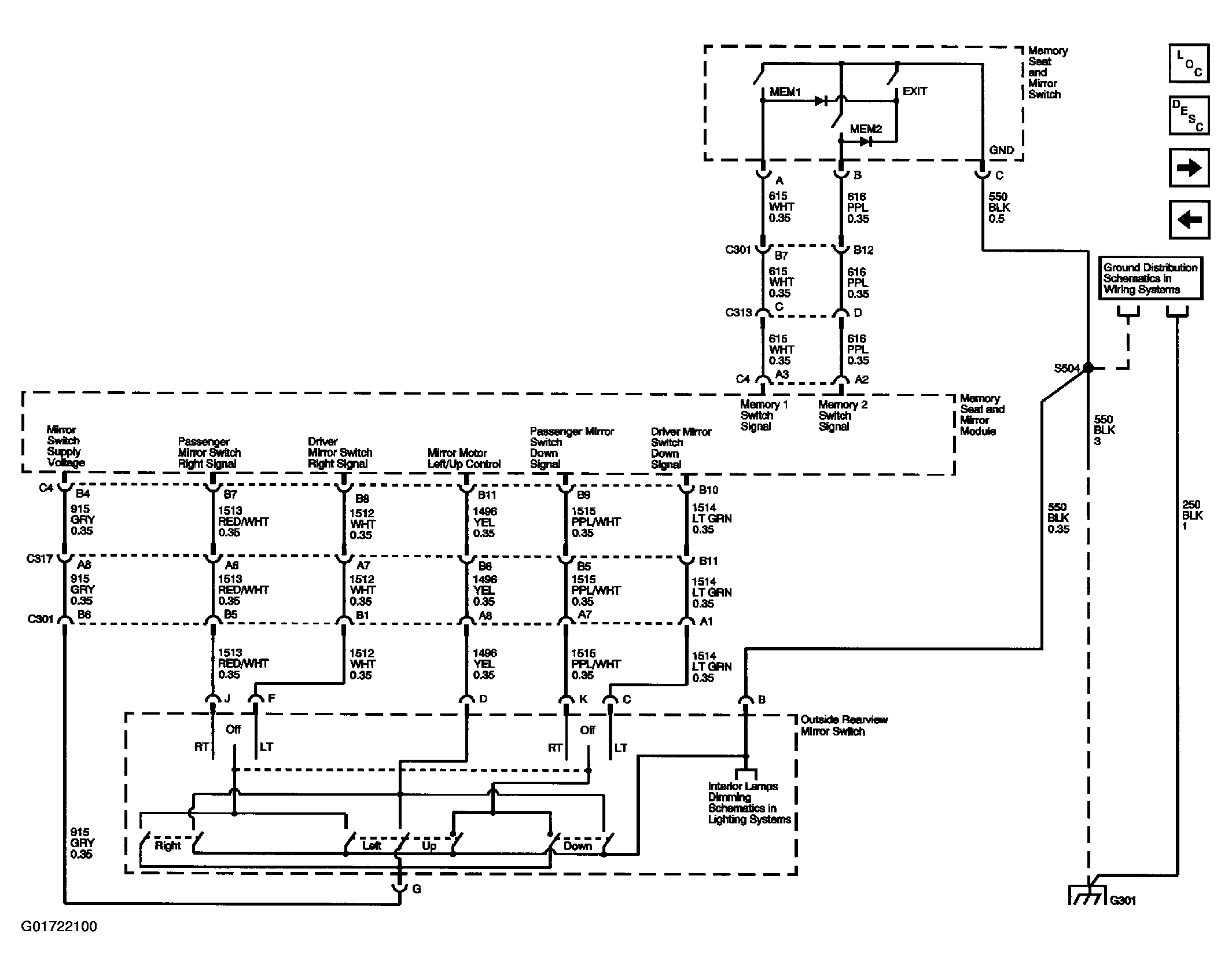

Fig 3: Outside Mirror Schematics (Memory Mirrors Switch Signals)

Courtesy of GENERAL MOTORS CORP.

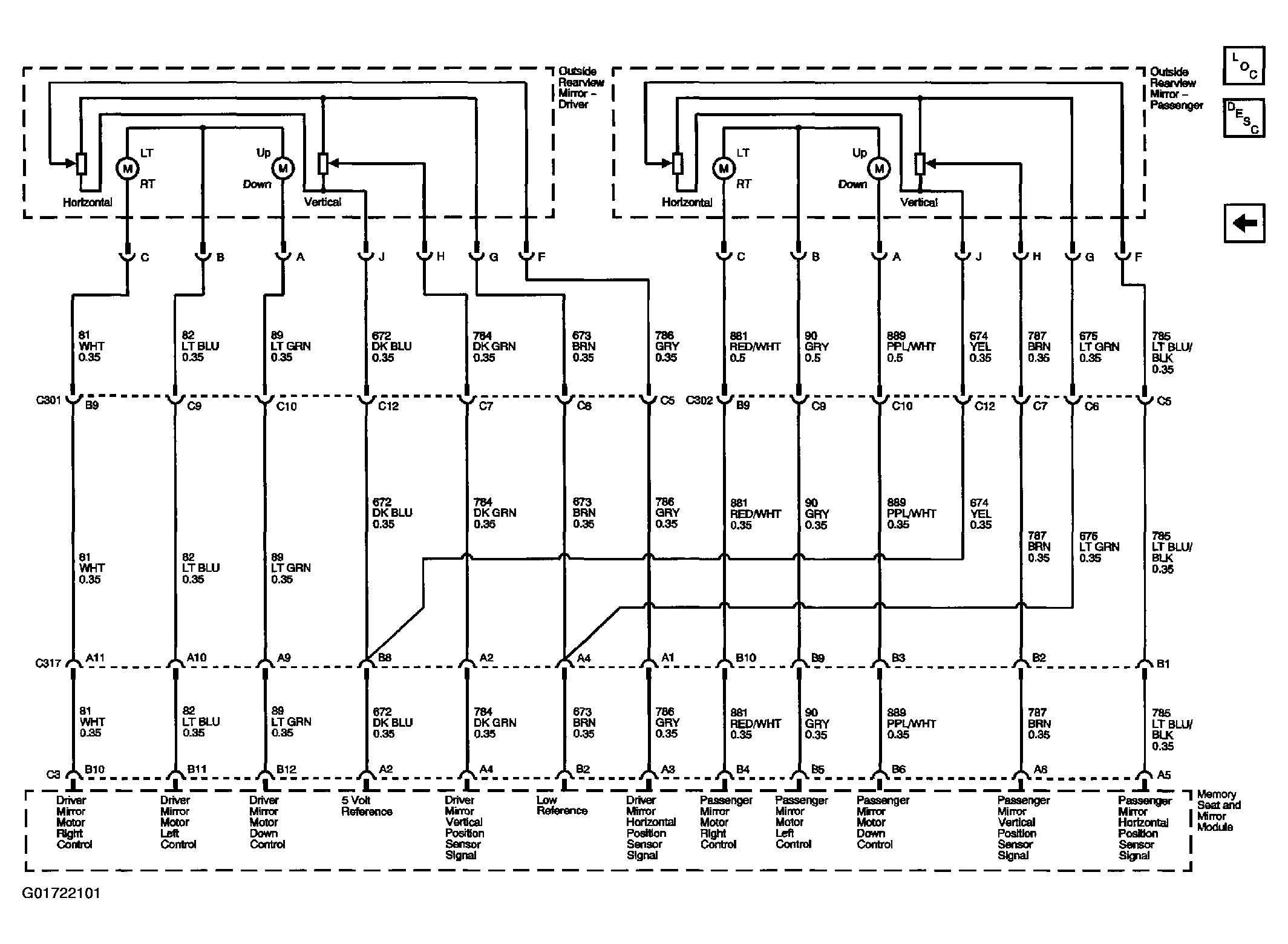

Fig 4: Outside Mirror Schematics (Memory Mirrors Controls)

Courtesy of GENERAL MOTORS CORP.
