Installation Procedure

  1. Connect the electrical connector to the lighted rearview mirror, if equipped.
  2. Slide the mirror onto the mirror support.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screw to the base.

    Tighten

    Tighten the mirror screws to 2 N.m (18 lb in).

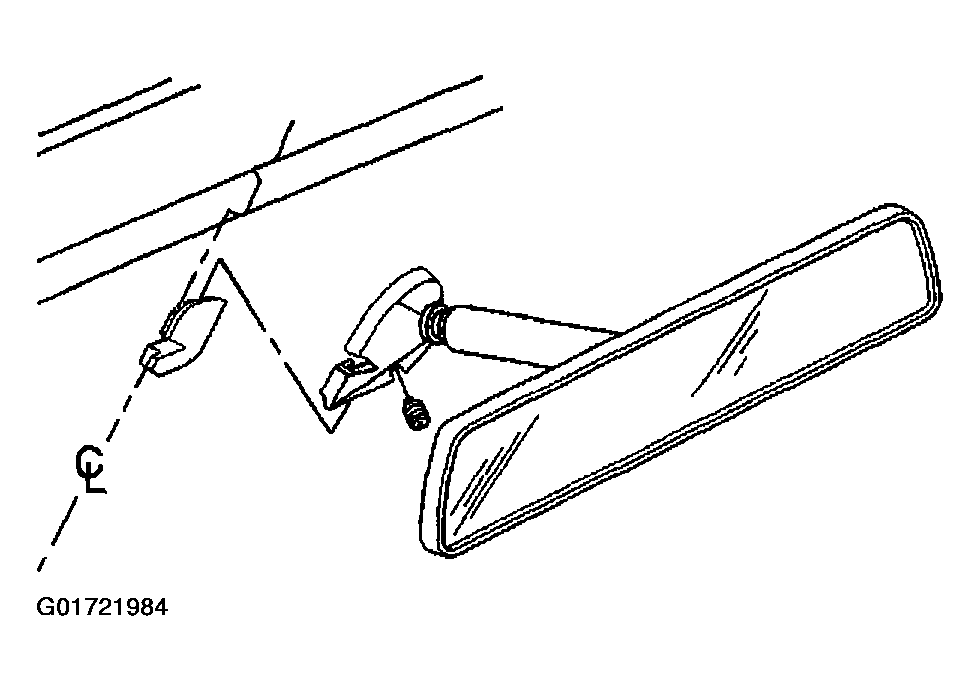

    Fig 1: Installing Rearview Mirror Base Screw
    G01721984Courtesy of GENERAL MOTORS CORP.
  4. Install the wire harness cover from the lighted rearview mirror, if equipped.

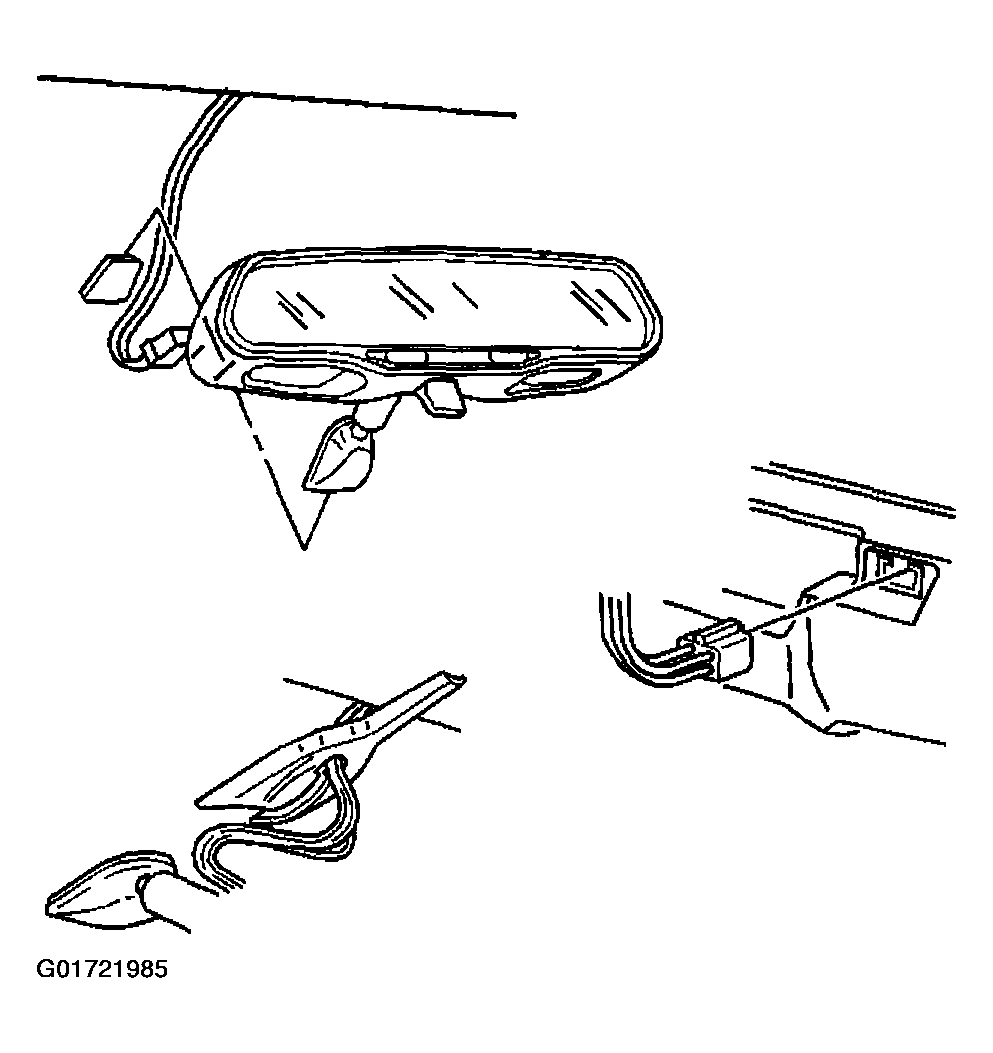

    Fig 2: Installing Rearview Mirror Wire Harness
    G01721985Courtesy of GENERAL MOTORS CORP.
