ABS Connector End Views

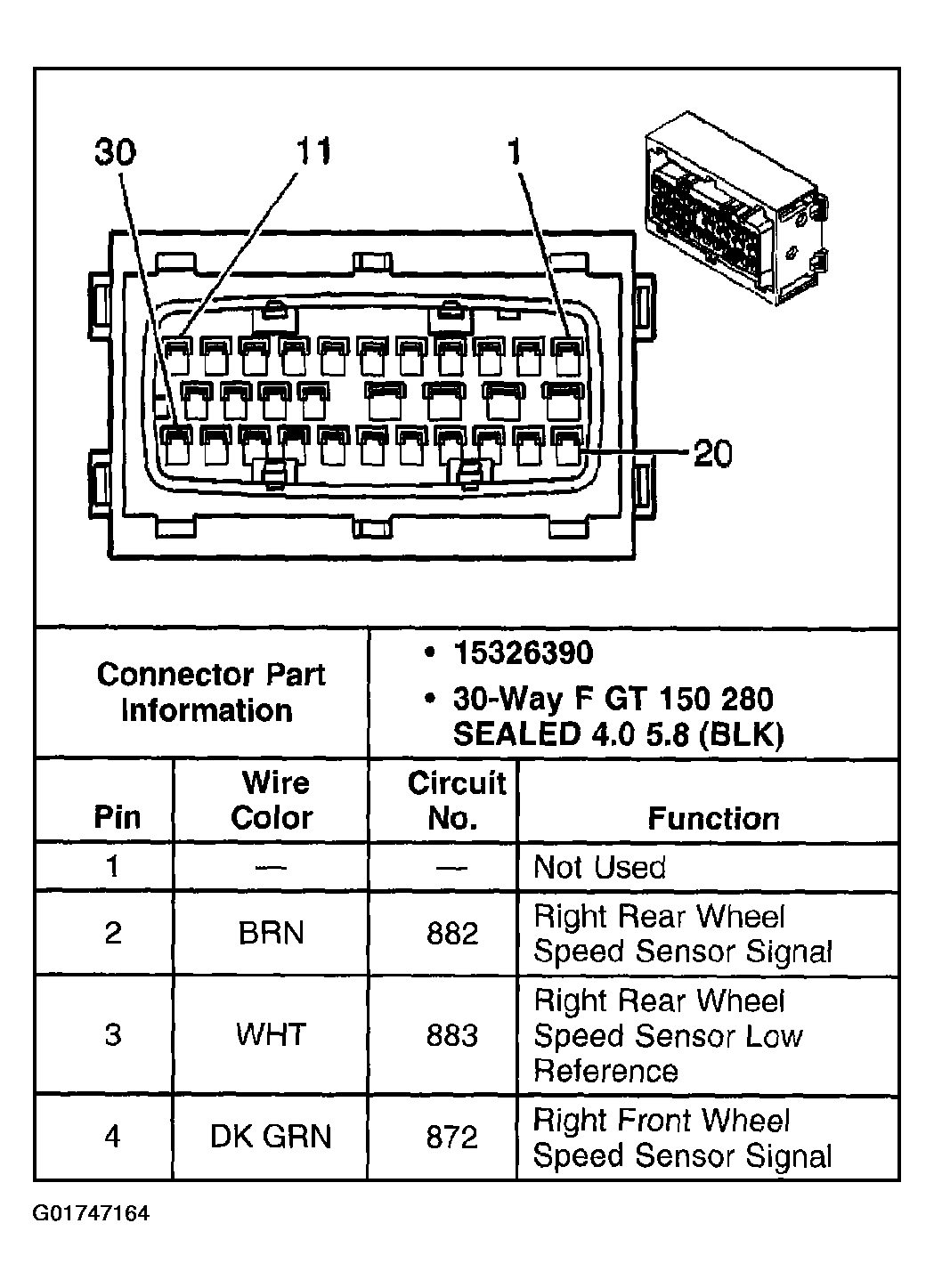

Fig 1: Electronic Brake Control Module (EBCM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

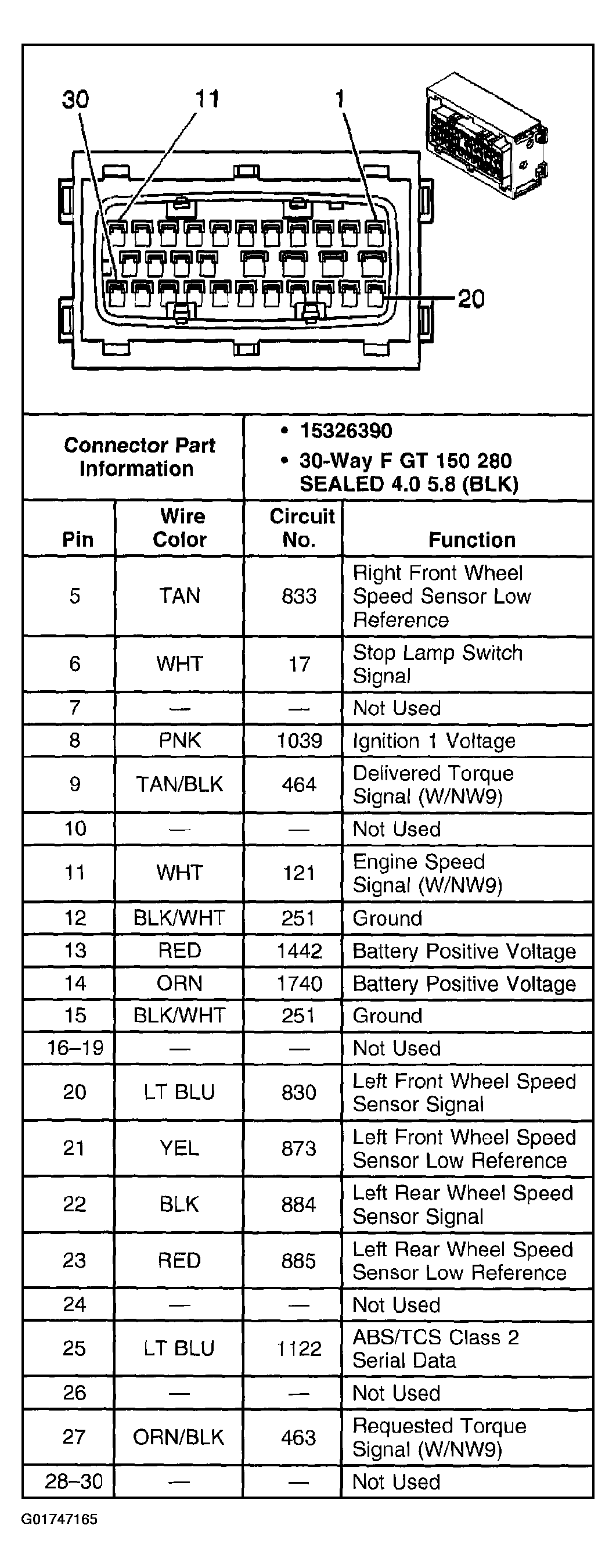

Fig 2: Electronic Brake Control Module (EBCM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

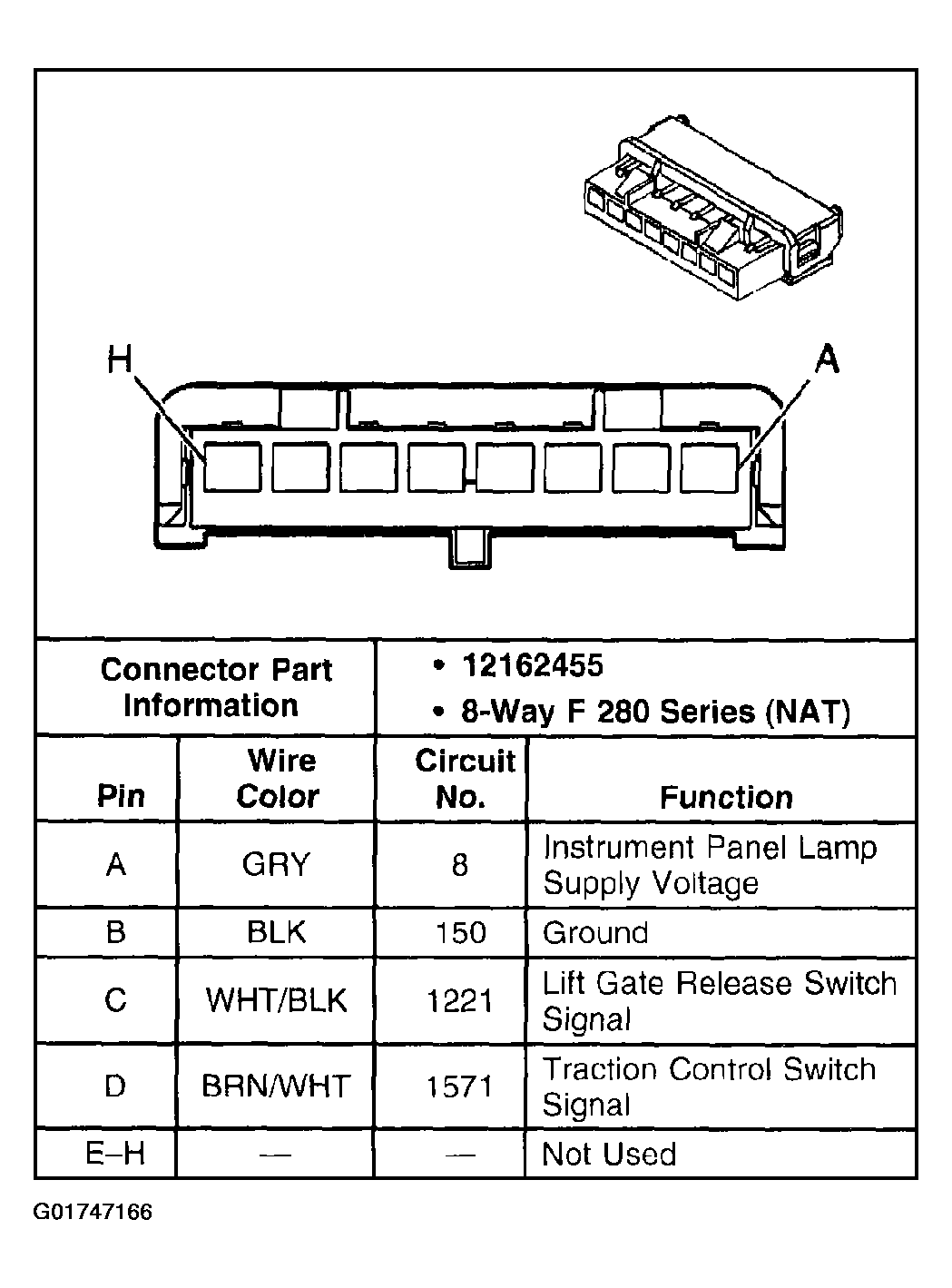

Fig 3: I/P Switch Assembly-C1 (Pontiac)

Courtesy of GENERAL MOTORS CORP.

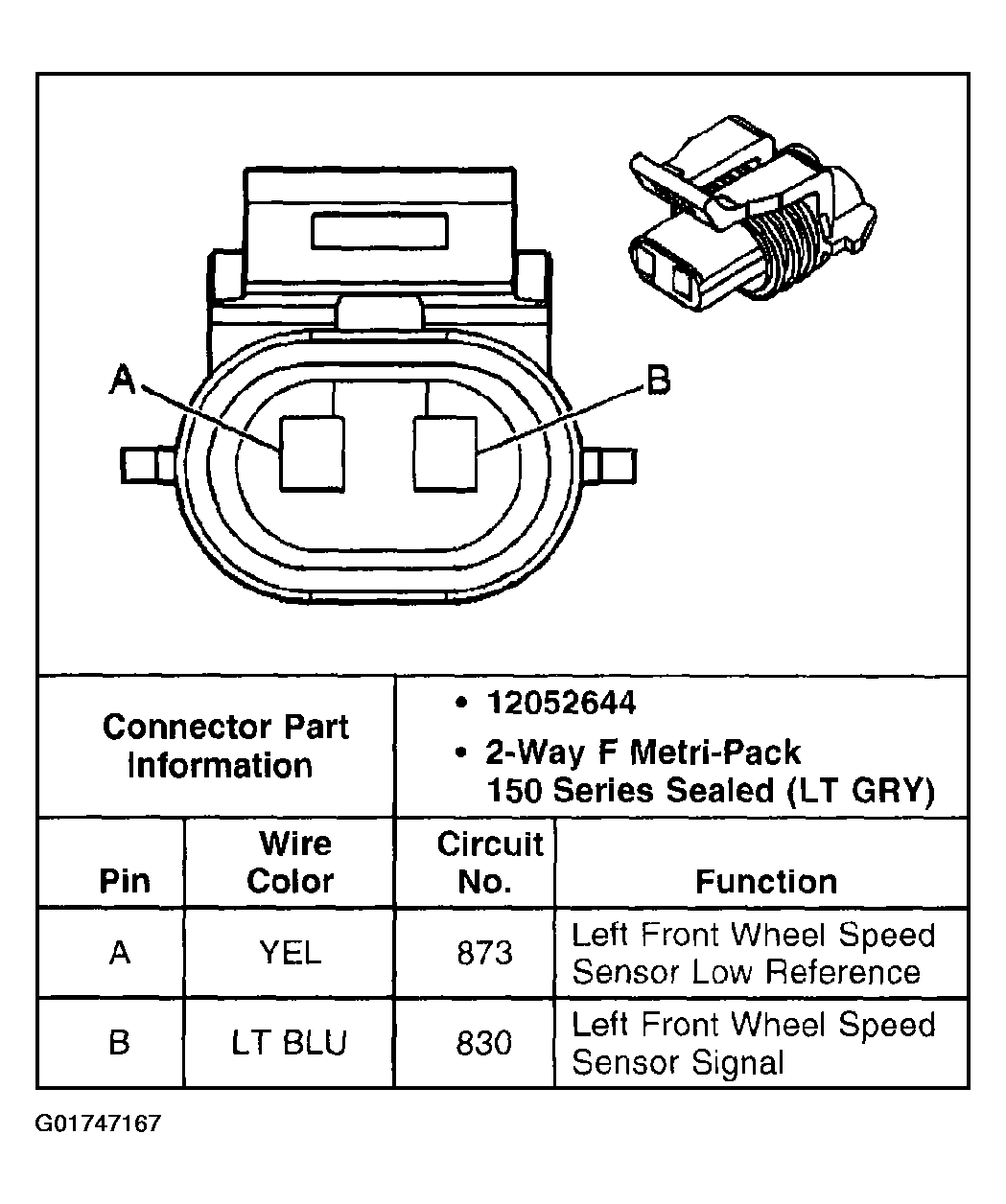

Fig 4: Wheel Speed Sensor - LF

Courtesy of GENERAL MOTORS CORP.

Fig 5: Wheel Speed Sensor - LR

Courtesy of GENERAL MOTORS CORP.

Fig 6: Wheel Speed Sensor - RF

Courtesy of GENERAL MOTORS CORP.

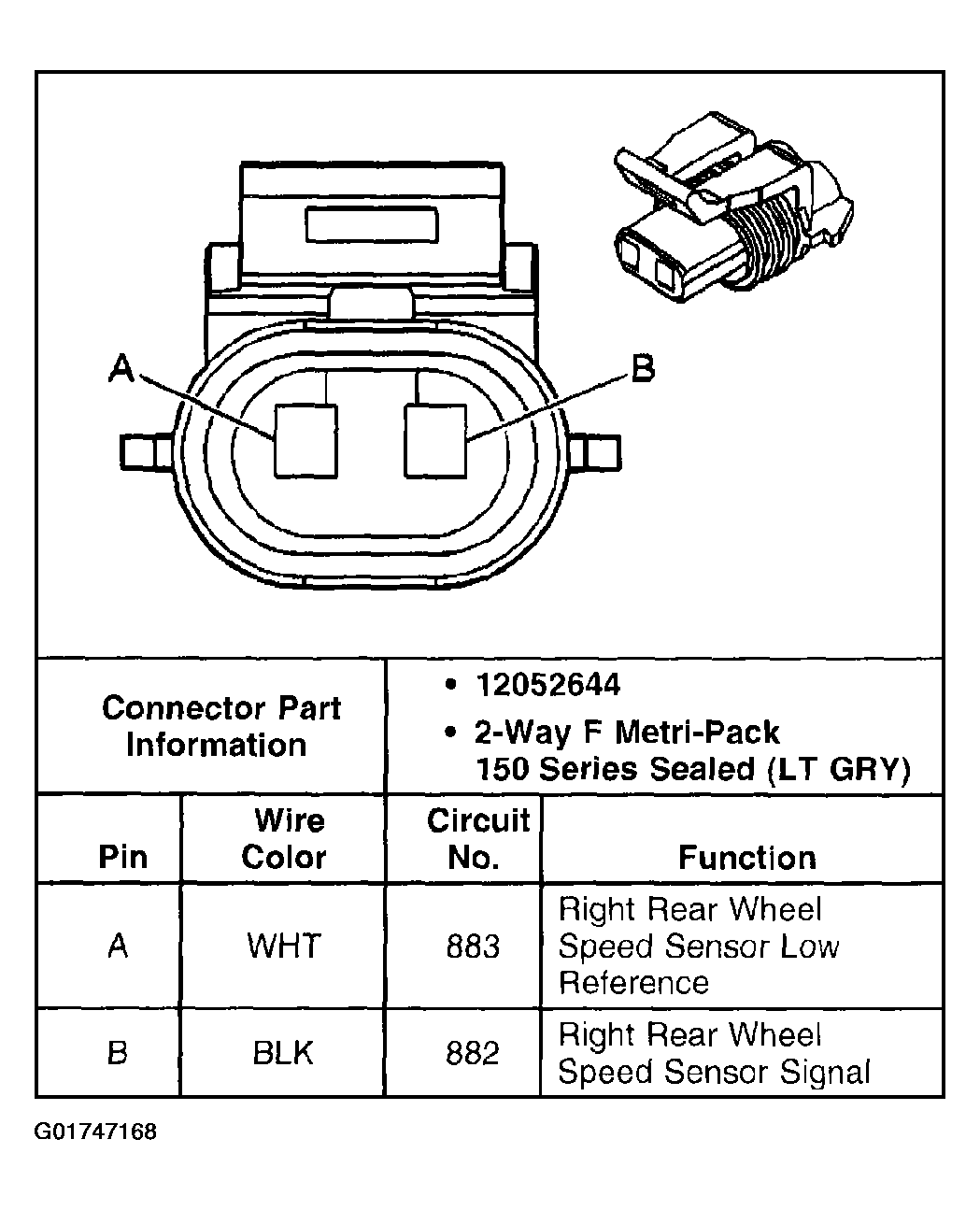

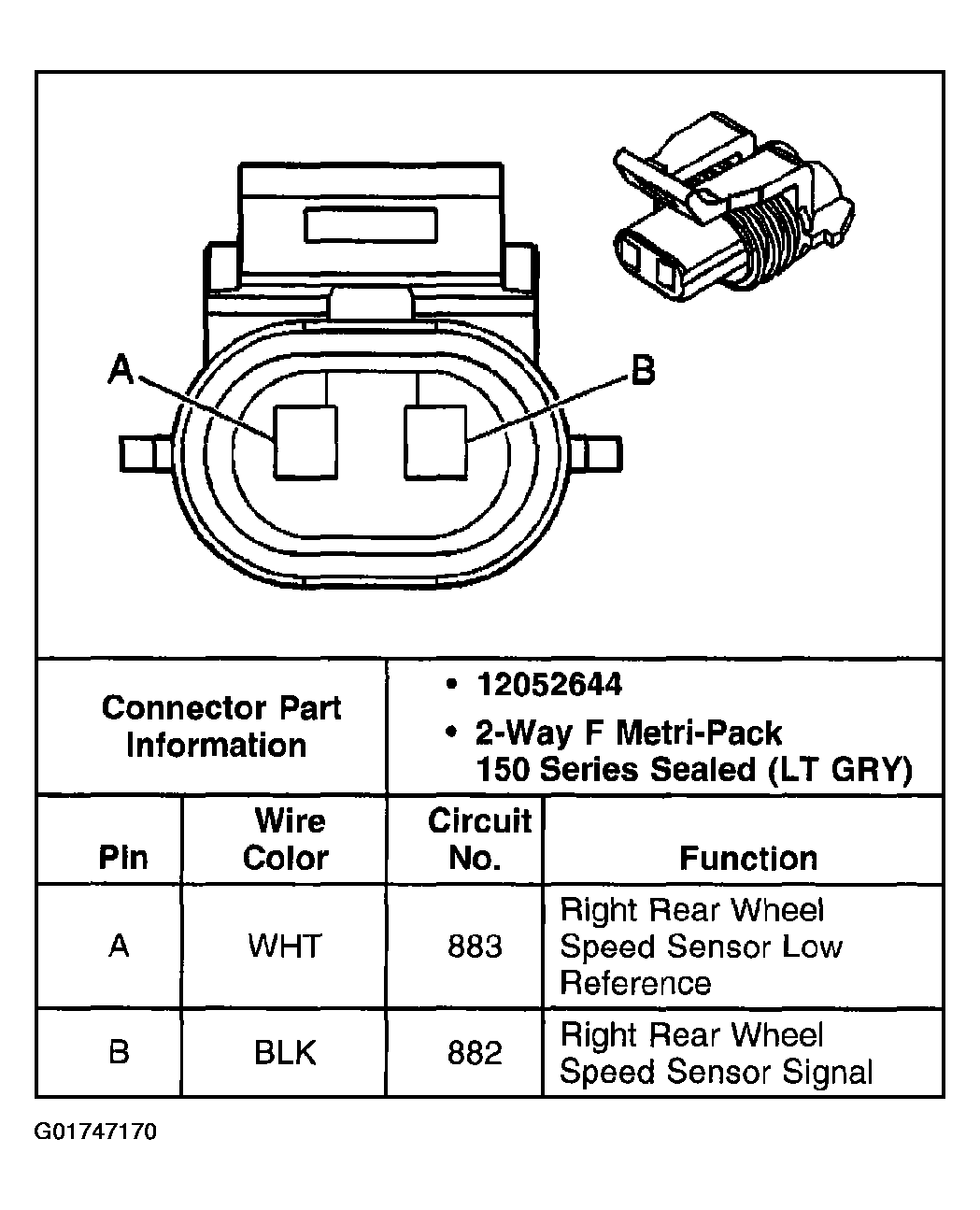

Fig 7: Wheel Speed Sensor - RR

Courtesy of GENERAL MOTORS CORP.
