Installation Procedure

  1. Install the hub and bearing assembly (1) to the vehicle. Refer to HUB & WHEEL BEARING ASSEMBLY .

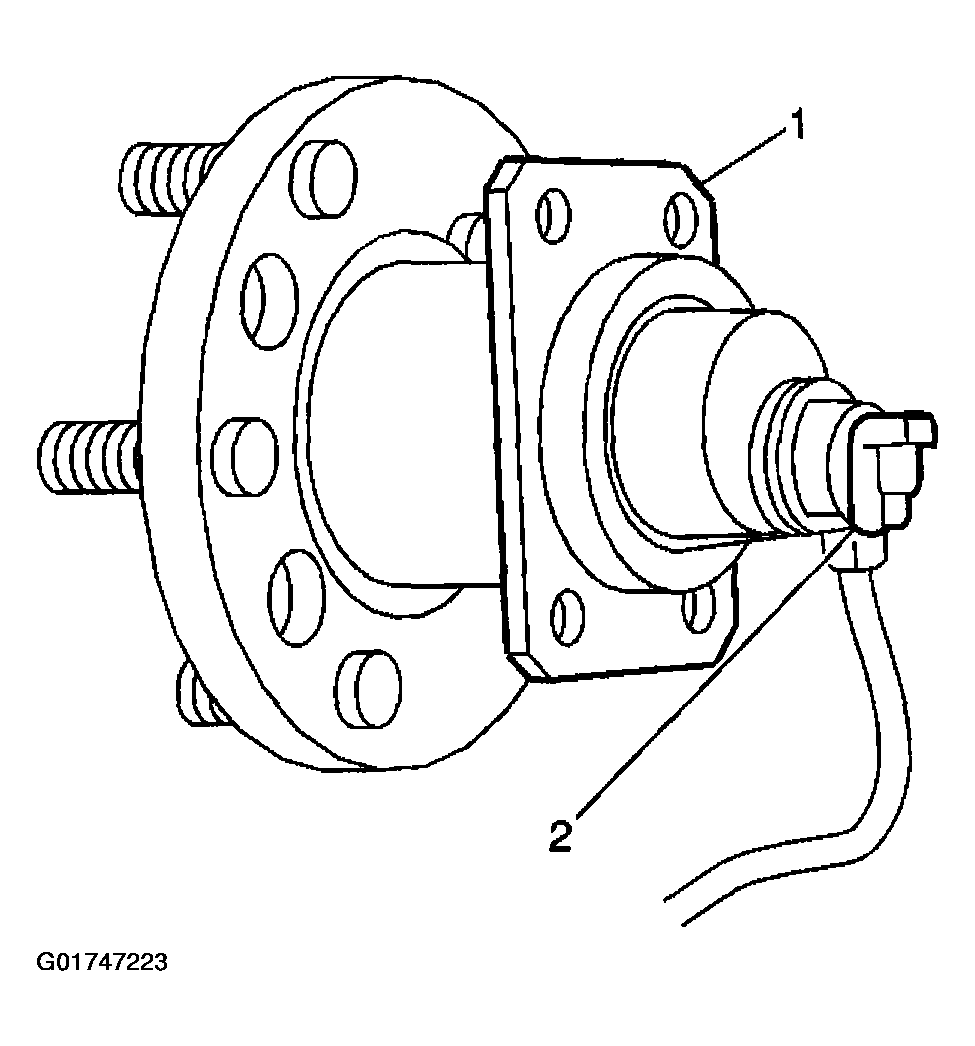

    2. Fig 1: Installing Hub & Bearing Assembly
    G01747223Courtesy of GENERAL MOTORS CORP.
  2. Install the rear wheel speed sensor electrical connector.
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Lower the vehicle.
  5. Turn the ignition switch to the RUN position with the engine off.
  6. Perform the Diagnostic System Check - ABS .

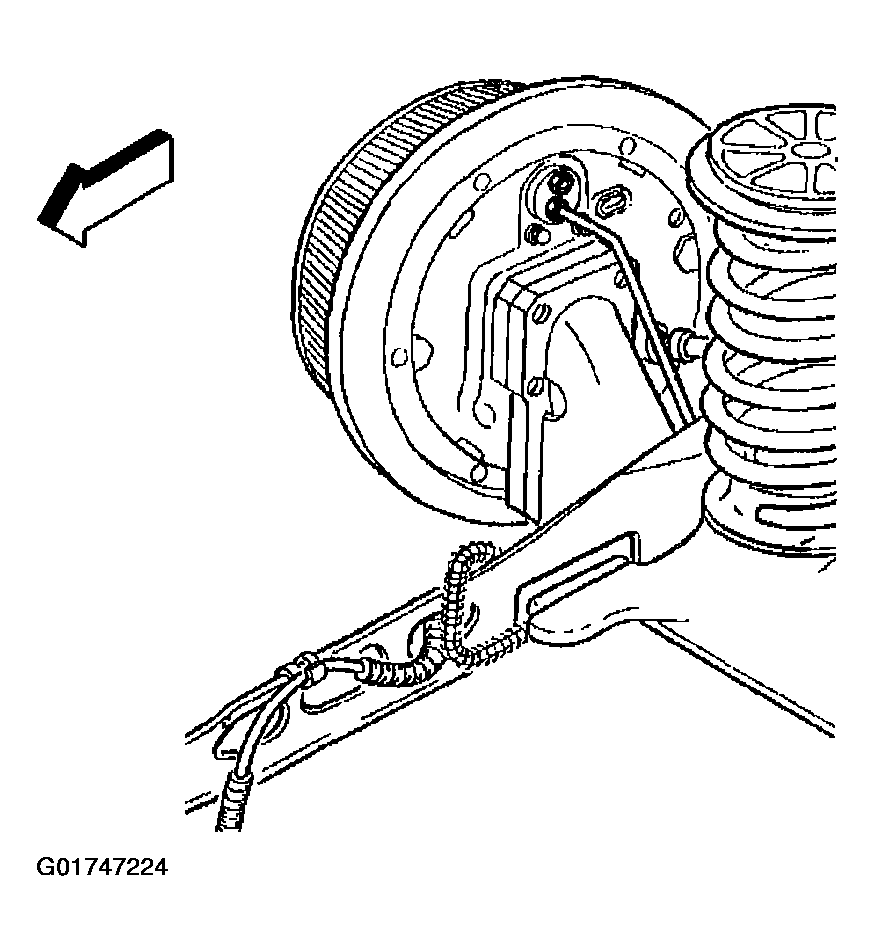

    Fig 2: Installing Rear Wheel Speed Sensor Electrical Connector
    G01747224Courtesy of GENERAL MOTORS CORP.
