ABS Schematics

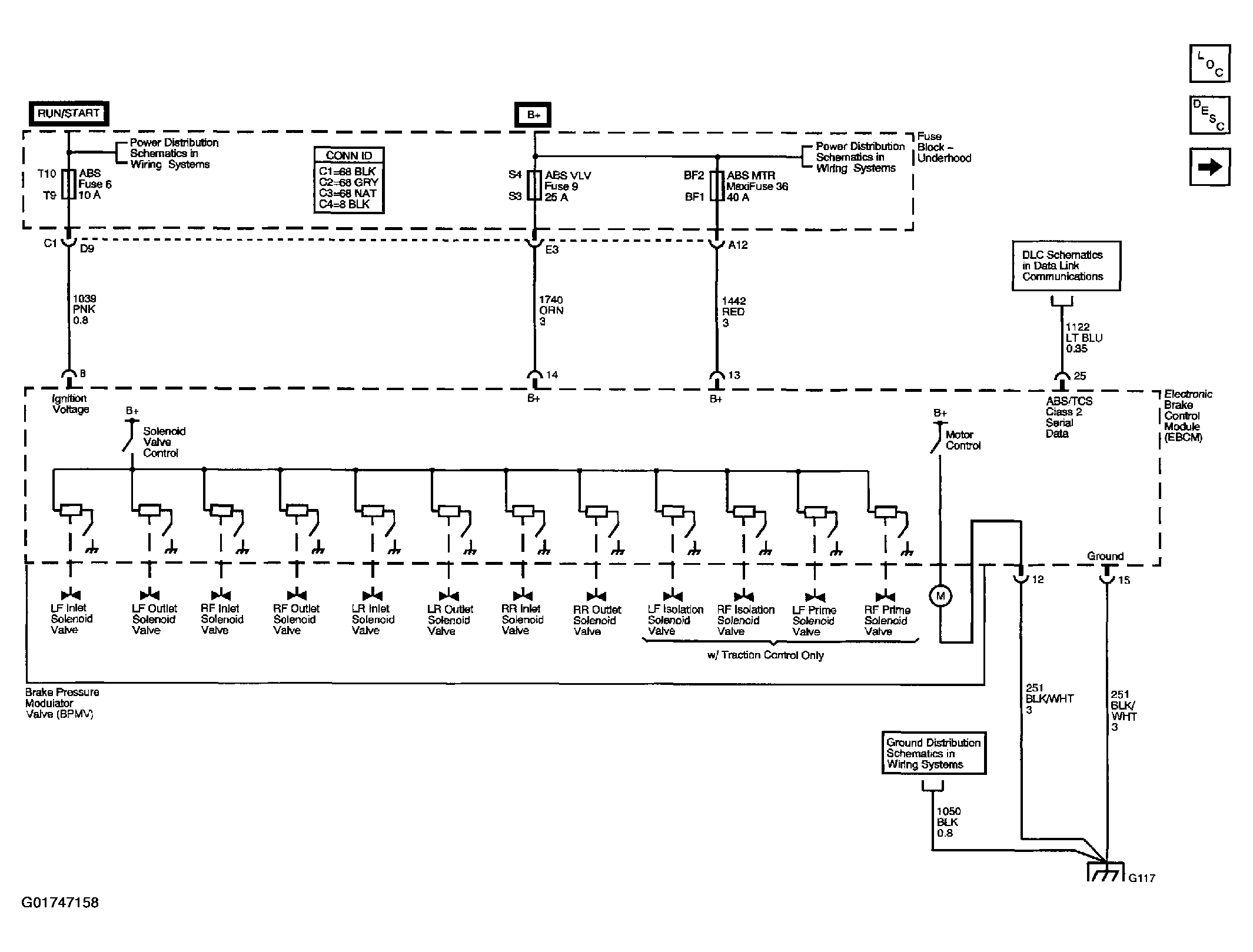

Fig 1: ABS Schematics (Module Power, Ground, and DLC)

Courtesy of GENERAL MOTORS CORP.

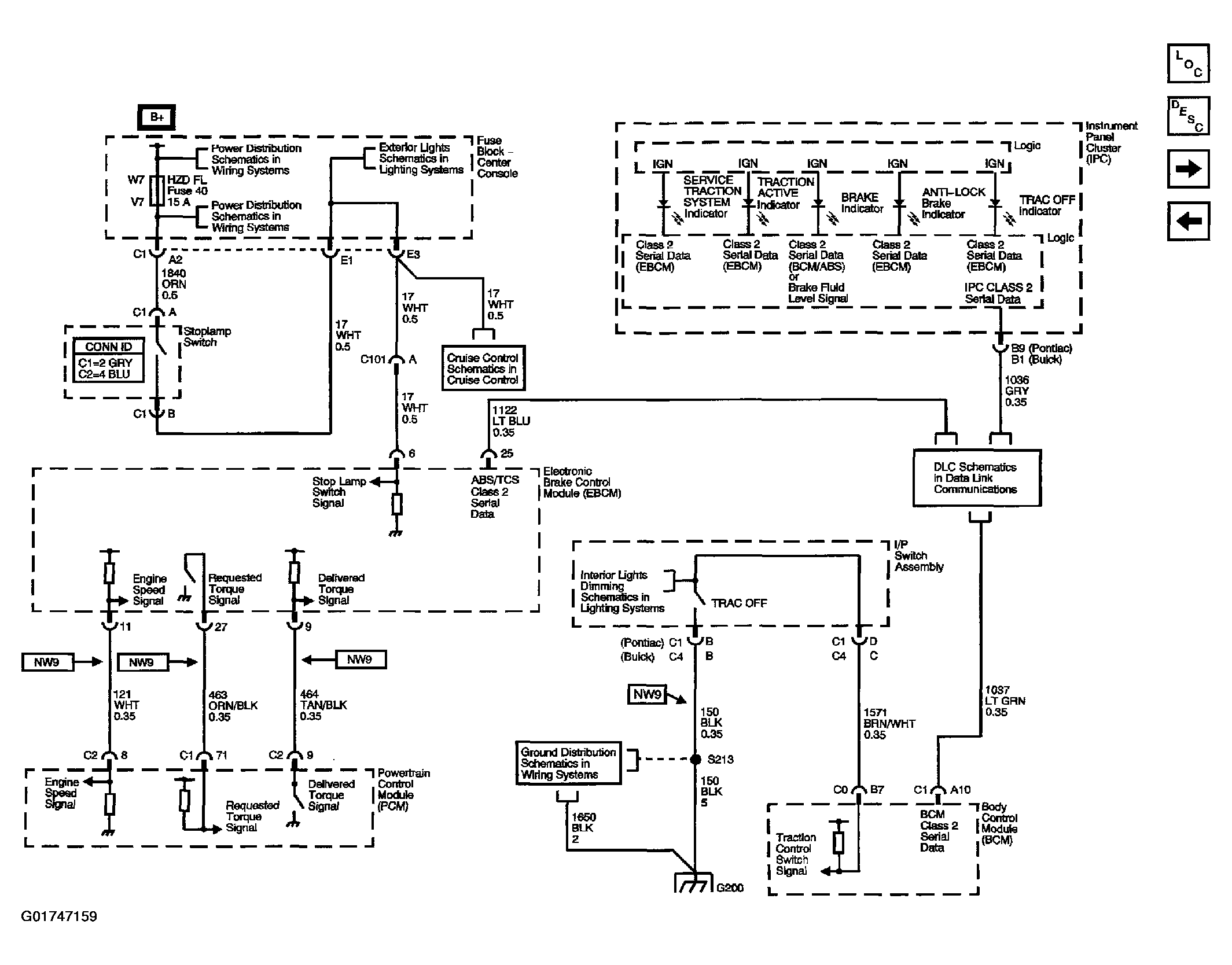

Fig 2: ABS Schematics (Indicators and Traction Control-NW9)

Courtesy of GENERAL MOTORS CORP.

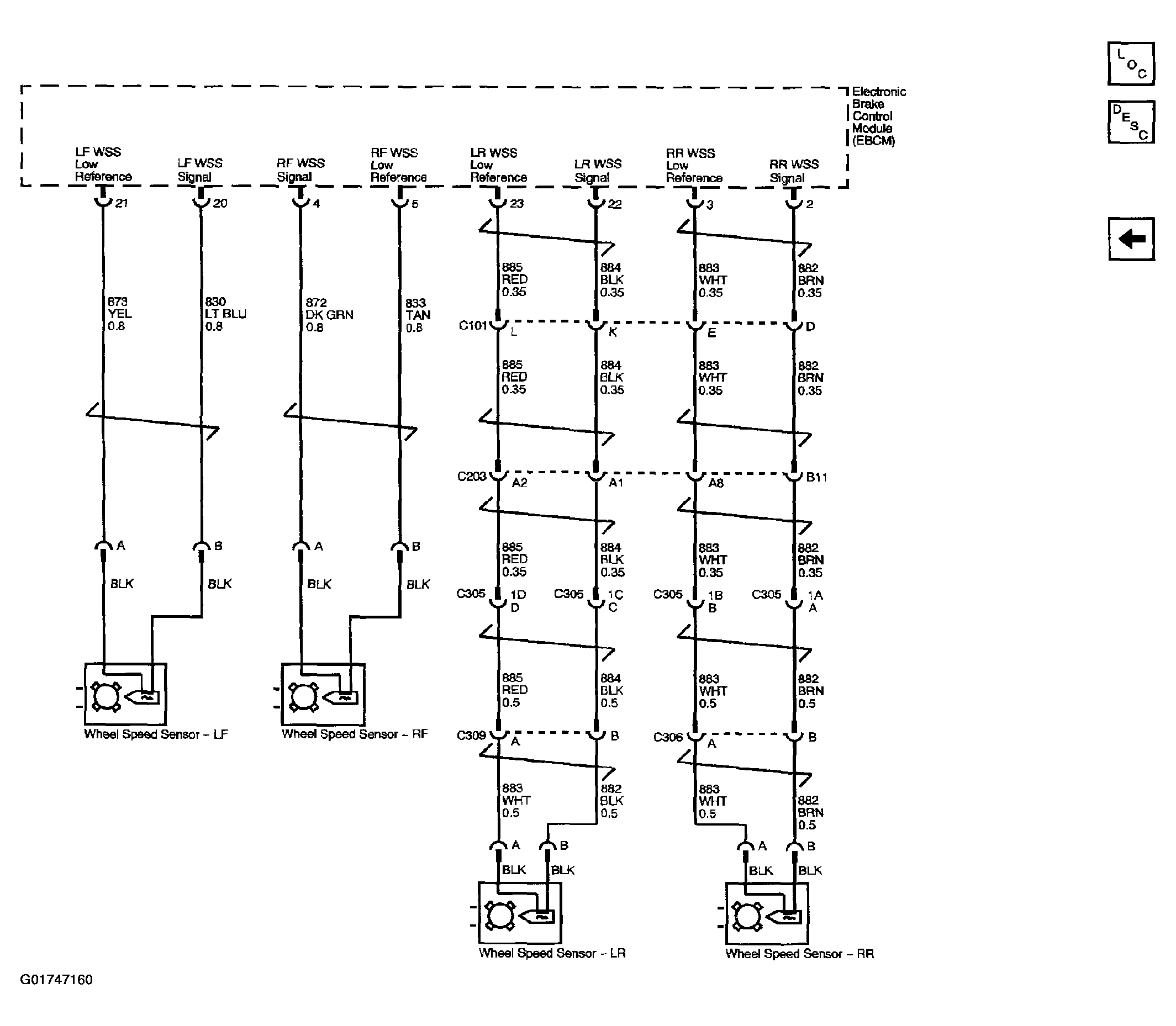

Fig 3: ABS Schematics (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.
