Installation Procedure

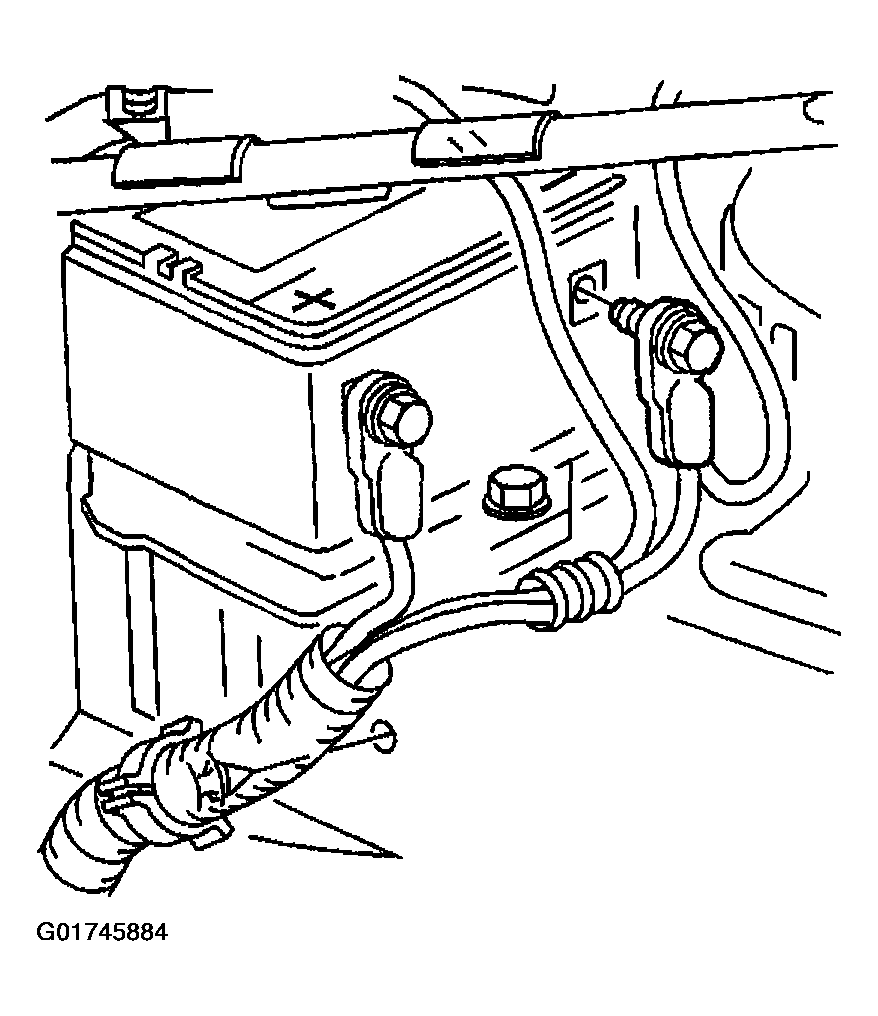

Fig 1: Installing Battery Ground Cable & Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

Important: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

Install the battery ground (negative) cable and bolt to the battery.
Tighten

Tighten the battery terminal bolt to 16 N.m (12 lb ft).
Program all of the customer's radio station presets and set the radio clock to the current time.
