Installation Procedure

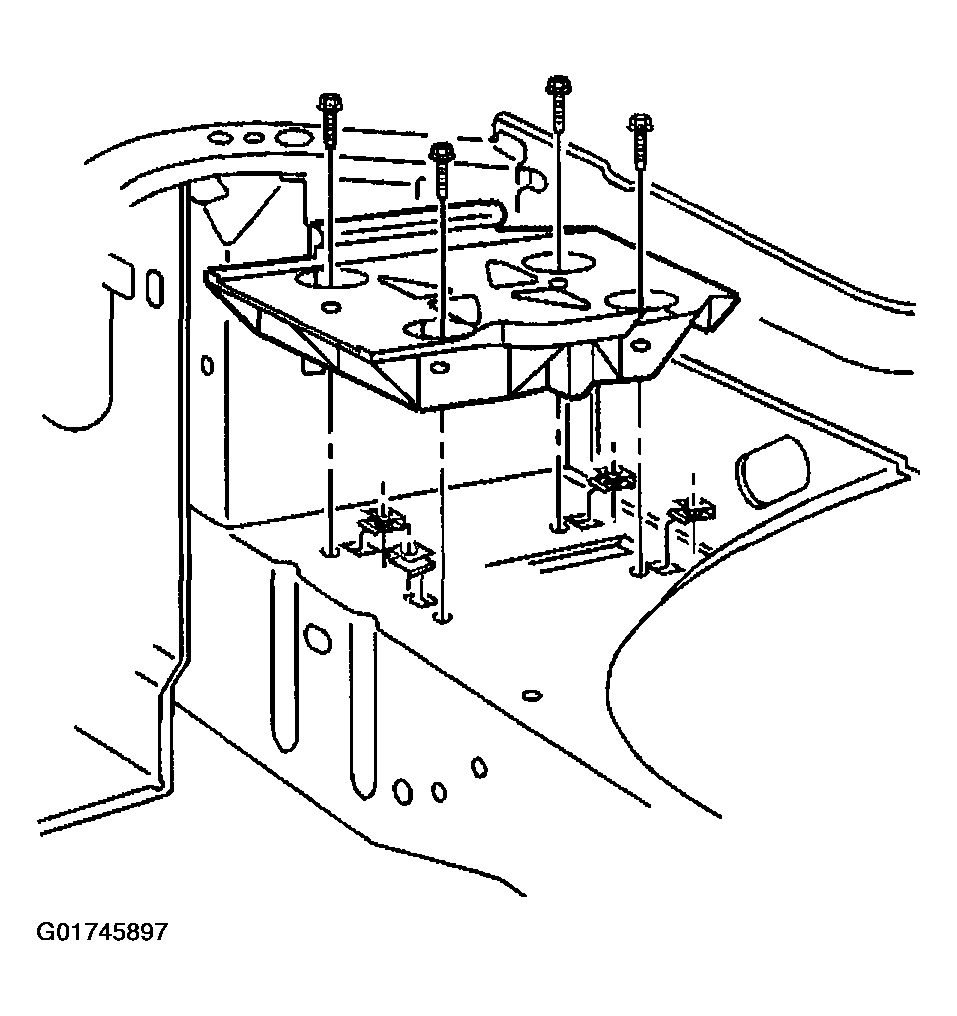

Fig 1: Installing Battery Tray & Bolts
G01745897Courtesy of GENERAL MOTORS CORP.
  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the battery tray bolts.

    Tighten

    Tighten the battery tray bolts to 10 N.m (89 lb in).

  3. Install the battery. Refer to Battery Replacement  .
