Removal Procedure

  1. Remove the battery. Refer to Battery Replacement  .
  2. Remove the battery tray bolts.
  3. Remove the battery tray.

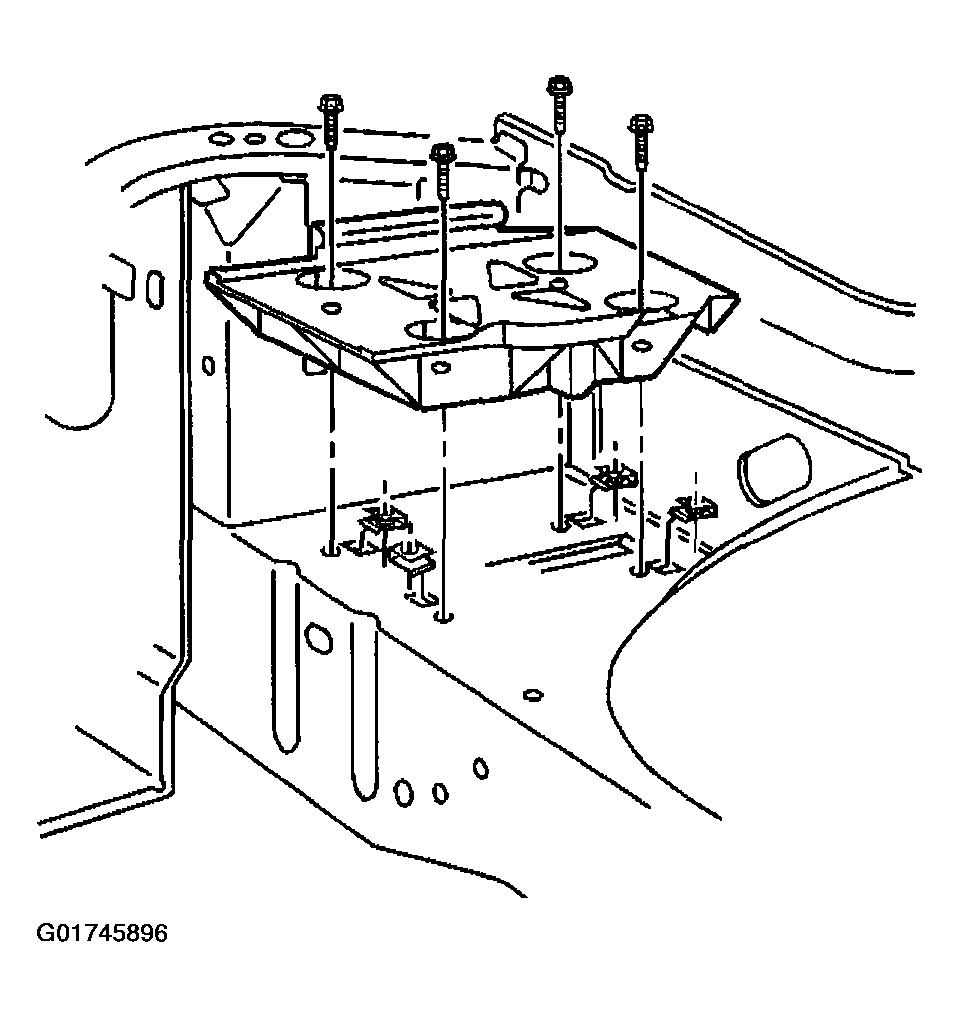

Fig 1: Removing Battery Tray & Bolts
G01745896Courtesy of GENERAL MOTORS CORP.
